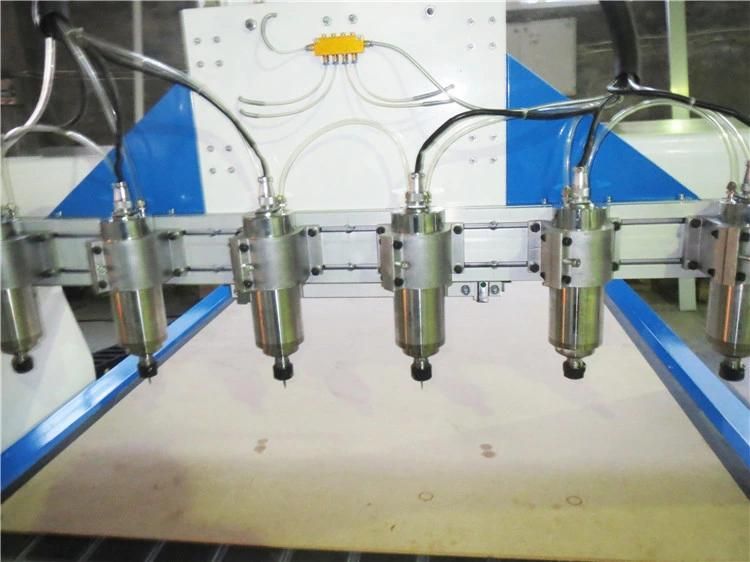

Six Spindles Wood Furniture Making Machine for Screen
Jinan Firm CNC Equipment Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Six-Spindles
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO
Base Info
- Model NO.：FM1325-S6
- Customized：Customized
- Condition：New
- Color：Customized
- Item：Wood Furniture Making Machine
- Working Area：1300*2500*300mm
- Spindle：2.2kw CS Water Cooling Spindles
- Inverter：Fuling Inverters
- Motor Type：450b Stepper Motors
- Rail：Taiwan Hiwin Linear Rial
- Transmission：Taiwan Tbi Ball Screw & Rack
- Control System：Nc-Studio or DSP
- Interface：USB
- Transport Package：Standard Export Wooden Case
- Specification：CE, SGS, ISO
- Trademark：FIRMCNC
- Origin：Jinan, China
- HS Code：8465990000
- Production Capacity：200sets,Month
Description
Spindle: Air cooling spindle or ATC spindle
can be chooseMotor and Driver: Servo system
Japan: Yaskawa / Panasonic servo
China: Taiwan Delta servo Control system: DSP/Syntec/mach3 Dust Collector Vacuum Pump Rotary System Mist-cooling System
4. Applicable materials of Machine
5. Waranty:
1) Two years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2) Lifetime maintenance free of charge.
3) 24 hours on line service each day, free technical support.
4) Machine has been adjusted before delivery.
5) Provide the whole life after service.
Other cnc router machines
6. How to choose the right machine?
1) What is the material size you want to process? -working area
2) How thick do you wan to cut?
3) What is your voltage?
4) What is your port?
5) Other specific requirement, please don't hesitate to contact us.

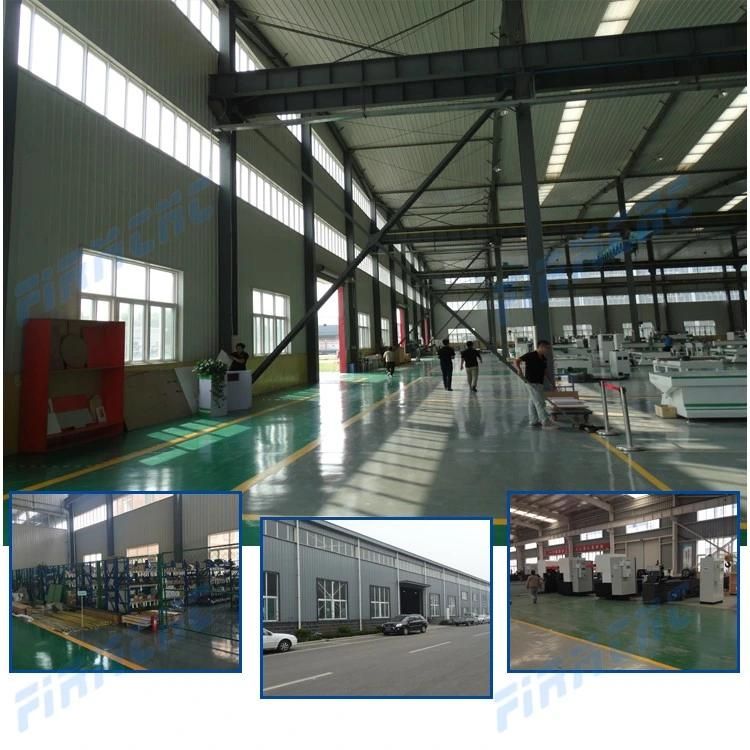

Factory exihibition
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330 Fax : 0086-0531-69986330
Website: http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091
can be choose
Japan: Yaskawa / Panasonic servo
China: Taiwan Delta servo
4. Applicable materials of Machine
Materials | Cut | Engrave |
Acrylic/Plexiglas/Perspex | Yes | Yes |
Organic board/Matte board/Double color plate | Yes | Yes |
Wood/Bamboo/Veneer/MDF | Yes | Yes |
Leather/Pig leather/Cow Leather/Sheep leather | Yes | Yes |
Fabric/Cloth/Textile | Yes | Yes |
Wool Felt | Yes | Yes |
Paper/Cardboard/Chipboard press board | Yes | Yes |
Plastic ABS/PVC/rubber/plastic | Yes | Yes |
Ceramic/Tile/Marble/Stone/Granite/Tombstone | No | Yes |
Fiber glass crystal/Glass | No | Yes |
Others non-metal materials | Yes |
5. Waranty:
1) Two years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2) Lifetime maintenance free of charge.
3) 24 hours on line service each day, free technical support.
4) Machine has been adjusted before delivery.
5) Provide the whole life after service.
Other cnc router machines
6. How to choose the right machine?
1) What is the material size you want to process? -working area
2) How thick do you wan to cut?
3) What is your voltage?
4) What is your port?
5) Other specific requirement, please don't hesitate to contact us.
Factory exihibition
