• Model NO.：FM1325
• Transmit Way：Taiwan Imported Ball Screw
• Motor Type：Stepper,Servo
• Working Software：Windows98,2000,XP
• Type：Engraving Router
• Spindle Layout：Spindle Over
• Feed Mode：Mechanical
• Transport Package：Standard Export Wooden Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Shandong, China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Transmit Way Taiwan Imported Ball Screw Motor Type Stepper/Servo Working Software Windows98/2000/XP Type Engraving Router Spindle Layout Spindle Over Feed Mode Mechanical Transport Package Standard Export Wooden Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Shandong, China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

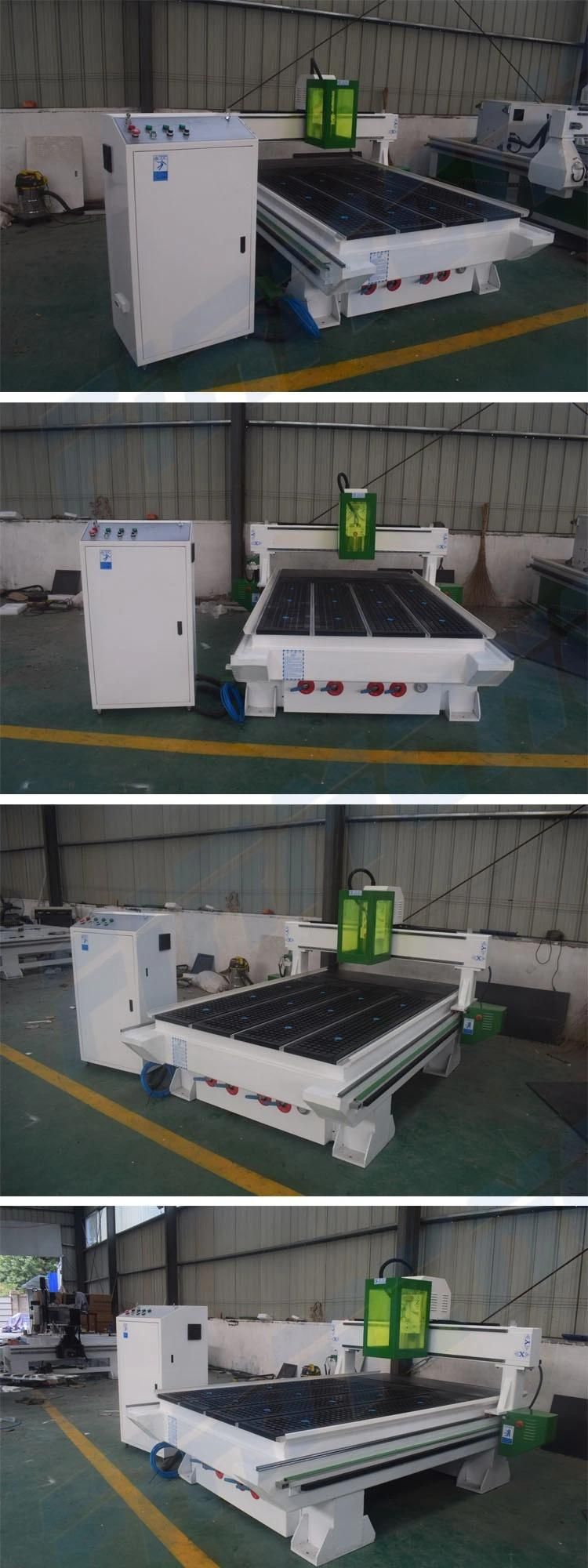

High Precision Wood CNC Router Engraving Cutting Machine

This machine is from Jinan Firm CNC Equipment Co., Ltd. It is a type of woodworking machine, which is equipped with aluminium profile table. It has the T-solt, using the material holders to fasten the mould on the table. There are many occasions it can work: Cutting or engraving on the MDF, soild wooden door, computer desk, cupboard door and window, bedside cabinet, furniture decoration, , wood board, acrylic and so on.


As for the spindle, we have the 3.0KW Chinese water cooling spindle and the HSD air cooling spindle; For the motor, we have leadshine stepper motor and Servo motor, you can choose from them as you requirements. The machine adopt the Fuling inverter, which can ensure the high speed and high precision, and can realize milling with low noise. About the rail, it adopt the world famous rail and guide manufacturer Taiwan Hiwin squre rails, self-lubricating sliding block, no need of human, very convenience. The XY axises adopt gear transmission, Z axis adopt Taiwan ball screw transmission.
We also have vacuum table wood cnc router, 8 pieces of head wood cnc router, ...If any of them interest you, please tell me rapidly.

Applications:
It is widely used in the Small-scale woodworking industry, such as solid wood door engraving, MDF paint door carving, furniture processing.
In artwork industry, it can process wooden craft, musical instrument.
It can also used in the decorative doors and windows processing etc.



Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. Welding bed, after vibration failure treatment, bed will no deformation, good stability, thicken table.
3. High strength and high stability mechanical structure design moves smoothly.
4. Using domestic well-known brand water-cooled spindle, low noise, large cutting force,
Can ensure bulk processing for a long time.
5. X, Y, Z axis Adopt precision work square guild. Good stability, high accuracy, lower wastage and long service time.
6. The z axis adopts imported high precision ball screw, the smooth movement, ensure high precision machine tools.
7. Splendid independent controlling cabinet, easy to make maintenance, use friendly interface.
8. Owns function of break point continuation, power off recovering, ensure the machine can continue working without interferences.
9. Adopting automatic oiling system, which can avoid contamination or disruption of the oil spill troubles and maintain new oil supply lubricating surface.
10. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
11. We can produce the machine as your requirements.
if you interest in this machine, please feel free to contact me. I will recommend suitable model and best price.

Technical Date

Brand	FIRMCNC
Model	FM1325
Engraving area	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0kw constant water cooled spindle
Spindle Rotate (rpm)	24000rpm/min
Motor Driver	High speed step motor (optional servo motor )
Transmission System	Imported ball screw or high accuracy gear rack
Guide rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
EngravingSpeed (mm/min)	10-20m/min
Contorl system	DSP CONTROL (optional Mach3 NCstudio contol)
Tool Diameter (mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	380V/3P/50Hz
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

Application
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.

Package:
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

Company information:
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.

Customers often ask
1.Can you recommend a plasma machine to me ?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness
for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
