• Model NO.：HWZL1610M
• Color：Multi Color
• Transport Package：Nude
• Origin：China
• HS Code：8479300000

Basic Info.

Model NO. HWZL1610M Color Multi Color Transport Package Nude Origin China HS Code 8479300000

Product Description

Raw material:

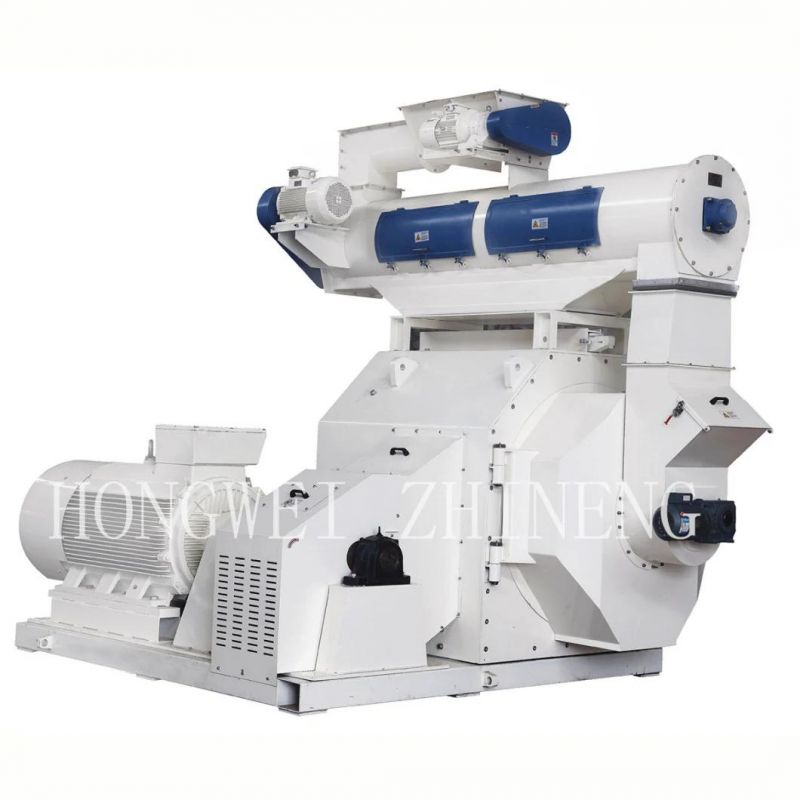

The pellet mill is suitable to make no oily and which are dried by driers, such as rice hus,sawdust, cotton stalks, cottonseed skins, rank grass, and other crops straw and plant waste. The equipment is also widely used in power plant, wood processing plant and biomass fuels plant.
High-efficiency
Gear  dirving system  features  ideal  transmission,  big driving  torque  and  steady running;  Die in many thickness andmultiple die hole diameters ranging fromΦ6mm to   Φ12mm  are optional  in light  of customer's  requirement,  so as  toachieve the best teachnical and economic benefits.

Intelligent
Feeding by anadvanced  frequency-conversion   motor,  equiped  with  an  overload  protecition  device  and  a magneticaeparating device as well; high capacity, low noise, convenient operation and maintenance.



Model	Capacity(t/h)	Power(kW)	Inner Dia. (mm)	Working width of die (mm)	Working area (dm2)	kw/dm2
MUZL420M	0.8-1.2	110	420	55	7.25	15.17
MUZL610M	1.5-2.0	160	520	80	13.07	12.24
MUZL1210M	2.0-3.0	220	630	100	19.78	10.1
MUZL1610M	2.5-3.5	264	800	150	37.68	6.63

Model	Roller num	Enforced feeder (KW)	Feeder (KW)	Conditioner (KW)	Driving
MUZL420M	2	1.5	1.5	5.5	Belt
MUZL610M	2	1.5	1.5	7.5	Belt
MUZL1210M	2	2.2	2.2	7.5	Belt
MUZL1610M	2	2.2	2.2	7.5	Belt
