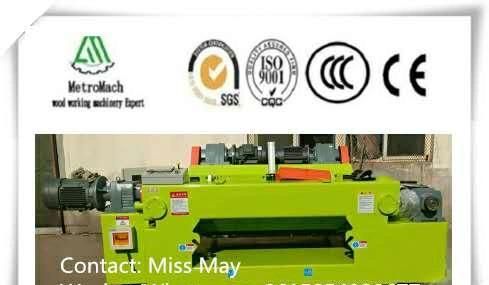

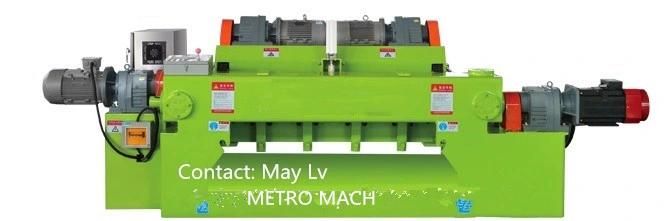

Automatic Hard Wood CNC Spindle-Less Plywood Eucalyptus Veneer Peeling Machine Lathe
Linyi Sin San Lin Smart Machinery Co., Ltd.- Type：Veneer Peeling Machine
- Automatic：Automatic
- Certification：CE, ISO, FDA
- Voltage：380V,415V
- Control：PLC Control
- Max. Wood Diameter：400mm
Base Info
- Model NO.：RBD1400
- Min.Wood Diameter：28mm
- Max. Wood Length：1300mm
- Precision：High Precision
- Setting Mode：Floor-Type
- Peeling Speed：60-120 M,Min
- Transport Package：Standard Export Packing
- Specification：5600mm x 1700mm x1600mm
- Trademark：METRO MACH
- Origin：Linyi City, China
- HS Code：8465960000
- Production Capacity：1000 Sets, Year
Description
Length of the peeling wood970mm-1270mm-1300mm max log diameter max500mm min 30mm roller power double roller motor 11kw single roller motor 5.5kw x 2 feed motor (servo motor) 11kw cutting motor (servo motor) 2.2kw rubber roller motor ( a-c motor) 2.2kw peeling thickness range 0.3mm--4.0mm peeling output speed constant speed 60m/min (adjust speed 60m-120m ) reducer modle R87 helical gear reducer size of machine 4300mm x 1700mm x1600mm weight 5500kg production eficiency (8 Hour) 1.7mm Peeling Veneer 50 m³
2.2mm Peeling Veneer 60m³
3.0mm Peeling Veneer 80m³
3.6 mm Peeling Veneer 90 m³
