Xc400-a Pneumatic Multi-Spindle CNC Machine Router for Routing, Cutting, Side Milling, Sawing, Chamfering, Milling, and Drlling
Hefei Aquila CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
- Specification：1300*2500*300mm
Base Info
- Model NO.：XC400-A
- Trademark：Mars
- Origin：China
- HS Code：8465990000
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. XC400-A Trademark Mars Origin China HS Code 8465990000 Production Capacity 300 Sets/MonthProduct Description
XC400-A Pneumatic Multi-Spindle CNC Machine Router for Routing, Cutting, Side Milling, Sawing, Chamfering, Milling, and Drlling Keywords:15 years experience of productionISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Description:
XC400-A Four Processes CNC Machining Center is MARS featured machine for processing wooden doors,cabinets,wood panels,office furniture,tables&chairs,doors&windows,wooden speakers,game cabinets,computer desks,sewing machines,musical instruments and etc..Now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include milling,drilling,cutting and other processing.
Applicable Materials:
Stone,graphite,acrylic,PVC,MDF,artifical stone,plexiglass,plastic,copper and aluminum.
Application Scope:
Wooden doors,cabinets,wood panels,office furniture,tables&chairs,doors&windows,wooden speakers,game cabinets,computer desks,sewing machines,musical instruments and etc..
Parameters:
| Model | XC400-A Pneumatic Multi-Spindle CNC Machine Router for Routing, Cutting, Side Milling, Sawing, Chamfering, Milling, and Drlling |
| Working Stoke | 1300*2500*300mm |
| Body Structure | Thick-walled steel tube welded, w/ tempering |
| Spindle Power | HQD 6KW+4.5KW+4.5KW+4.5KW air cooling spindle |
| Spindle Speed | 0 ~ 24000 rpm/min |
| Control System | Syntec /ShanLong |
| Drive System | Yaskawa servo motor |
| Lubrication System | Automatic |
| Transmission | XY axis rack and pinion, Z axis ball screw |
| Guide Rail | Taiwan Hiwin linear rail |
| Transforme | 630VA |
| Vacuum Pump | 7.5KW |
| Max Travelling Speed | 25m/min |
| Max Processing Speed | 15m/min |
| Dictate Format | G code/ HPGL |
| Engraving Tool | ¢3.175/ 4/ 6/ 12.7mm |
| Working Accuracy | ±0.02mm |
| Re-positioning Accuracy | ±0.05mm |
| Support Software | Professional cutting optimization software |
| Working Voltage | AC380/ 3PH/ 50H |
| Net Weight | 1900KG |
| Machine Size | 2300*3600*1800mm |

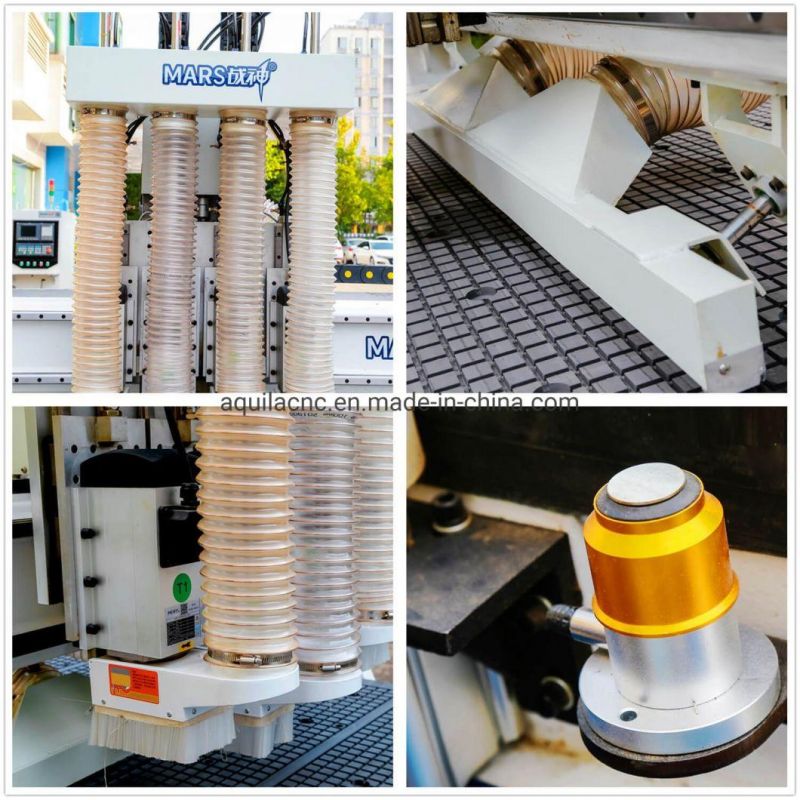

Accessories:
Performance Features:
1. Industrial thick square steel tube welded frame, with tempering aging treatment, to ensure strong, durable, without any deformation.
2. Imported precision ball screw, high speed, high precision, long service life.
3. With break-point and power-off memory function, ensure continuous processing after an accident of tool breaking or power-off.
4. Advanced CNC system, simple operation, easy maintenance, user-friendly design to meet the diverse needs of customers.
5. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..

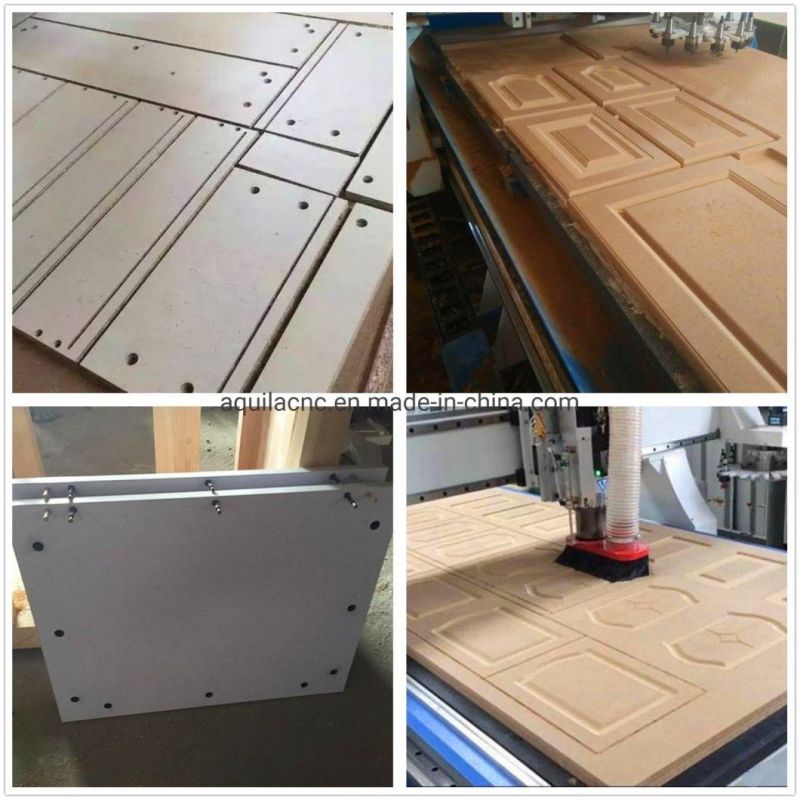

Samples:

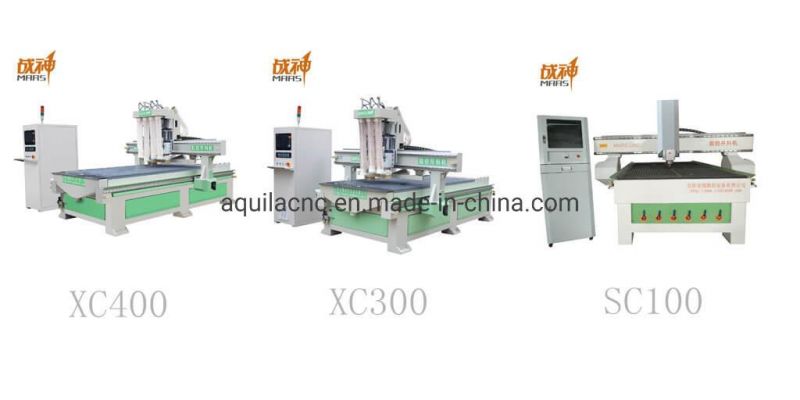

Similar products:
