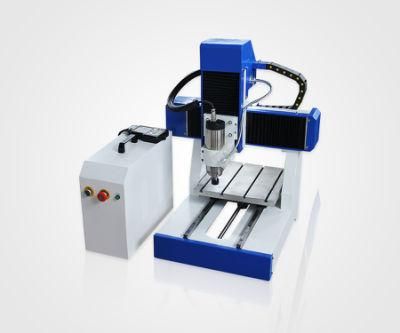

1.5kw Spindle Advertising Small CNC Router (DW3030)
Jinan Dwin Technology Co., Ltd.- Type：Advertising CNC Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE
Base Info
- Model NO.：DW3030
- Customized：Customized
- Condition：New
- Color：Customized
- Working Arae：300mm*300mm
- Z Axis Working Area：60mm
- Working Speed：0 - 3000mm,Min
- Software：Type 3 Software, Artcut Software, Artcam
- Driver Type：Stepper Motor
- Spindle Speed：0 - 24000rpm
- Spindle Power：1.5kw
- Control System：Nc-Studio(Option:DSP Control System)
- Command：G Code, U00, Mmg, Plt
- Machine Structure：T-Slot Table(Vaccum Table for Choice)
- Transport Package：Playwood Box
- Specification：CE
- Trademark：DWIN
- Origin：Jinan City Shandong Province China
- HS Code：8465990000
- Production Capacity：50 Sets,Month
Description
Basic Info.
Model NO. DW3030 Customized Customized Condition New Color Customized Working Arae 300mm*300mm Z Axis Working Area 60mm Working Speed 0 - 3000mm/Min Software Type 3 Software, Artcut Software, Artcam Driver Type Stepper Motor Spindle Speed 0 - 24000rpm Spindle Power 1.5kw Control System Nc-Studio(Option:DSP Control System) Command G Code, U00, Mmg, Plt Machine Structure T-Slot Table(Vaccum Table for Choice) Transport Package Playwood Box Specification CE Trademark DWIN Origin Jinan City Shandong Province China HS Code 8465990000 Production Capacity 50 Sets/MonthProduct Description
1.5kw Spindle Advertising Small CNC Router(DW3030)Features:
1.The machine adopts international advanced accurate guide rail,slide pre-tight installment (guaranteed no space is between the slides) and German original ball screw to realize steady movement ,high precision and small vibration.
2.March 3 control system that adopted by the machine has the advantages of break point and break power continue engraving,assisned G code engraving ,etc.(The DSP handle operation system which enables the machine work without the computer can be choosen .)
Applicable materials:
PVC board,ABS, double-color board,acrylic,MDF,stainless steel,copper,alumnium, zinc etc materials.
Technical parameters:
Machine body: | DW3030 Whole cast iron |
| Work dimensions: | 300 x 300 x 60mm |
| Body dimensions: | 600 x 600 x 600mm |
| Z-axis working area: | 60mm |
| Max. Feeding height: | 60mm |
| Cut thickness of material: | <20mm |
| Max.Speed: | 4200mm/min |
| Working speed: | 0 - 3000mm/min |
| Mechanical precision: | 0.01mm |
| Software: | Type 3 software, Artcut software, Artcam software |
| Max. Power consumption: | 900W |
| Power supply : | AC 220/50Hz |
| Driver type: | Stepper motor |
| Memory: | 1MB |
| Spindle: | 1.2KW variable speed, water cooled motor |
| Spindle speed: | 0 - 24000RPM |
| Blade diameter: | 1 - 6m |
| Control system: | Artcut or Wei hong (NCSTUDIO) or DSP (USB interface) |
| Command: | G code, u00, mmg, plt |
| Interface: | RS232 |
