• Model NO.：FM2030
• Customized：Customized
• Condition：New
• Color：Blue or as Required
• X,Y,Z Working Area：2000mmx3000mmx300mm
• Table Surface：T-Slot and Vacuum Table
• Frame：Welded Structure
• X, Y Structure：Rack and Pinion Drive, Hiwin Rail Linear Bearings
• Command Language：G Code
• Electric Oscillating Tool：German Ecocam Eot-2
• Tangential Creasing Tool：German Ecocam Tct-1
• Optical Reader/CCD/ Industrial Camera：German Dmk72auc02
• X,Y,Z Repositioning Accuracy：<0.03mm
• Drive Motors：Yaskawa Servo Motor
• Transport Package：Standard Export Woode Case
• Specification：CE SGS ISO
• Trademark：FIRMCNC
• Origin：Jinan Shandong China
• HS Code：8465990000
• Production Capacity：60sets,Month

Basic Info.

Model NO. FM2030 Customized Customized Condition New Color Blue or as Required X,Y,Z Working Area 2000mmx3000mmx300mm Table Surface T-Slot and Vacuum Table Frame Welded Structure X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings Command Language G Code Electric Oscillating Tool German Ecocam Eot-2 Tangential Creasing Tool German Ecocam Tct-1 Optical Reader/CCD/ Industrial Camera German Dmk72auc02 X,Y,Z Repositioning Accuracy <0.03mm Drive Motors Yaskawa Servo Motor Transport Package Standard Export Woode Case Specification CE SGS ISO Trademark FIRMCNC Origin Jinan Shandong China HS Code 8465990000 Production Capacity 60sets/Month

Product Description

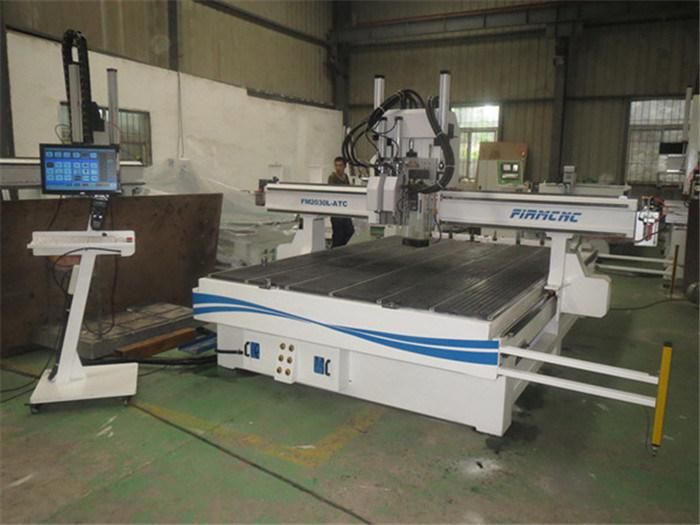

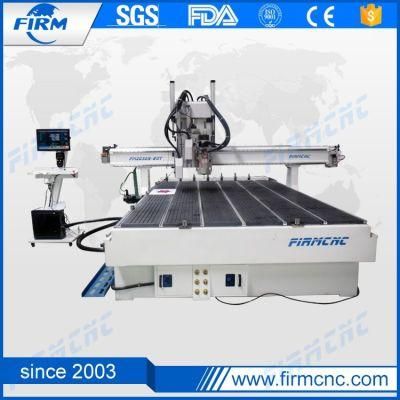

CNC Router Oscillating Knife and Tangential Knife for Corrugated Cardboard

Advantages:

1.Free samples(I can give you samples for free)

2.Auto Tools Changer

3.CE, SGS,ISO

4.German EOT-2(electric oscillating tool)&TCT-1 (tangential creasing tool)

   &CCD camera

5.Syntec 10A-4E control system by PC

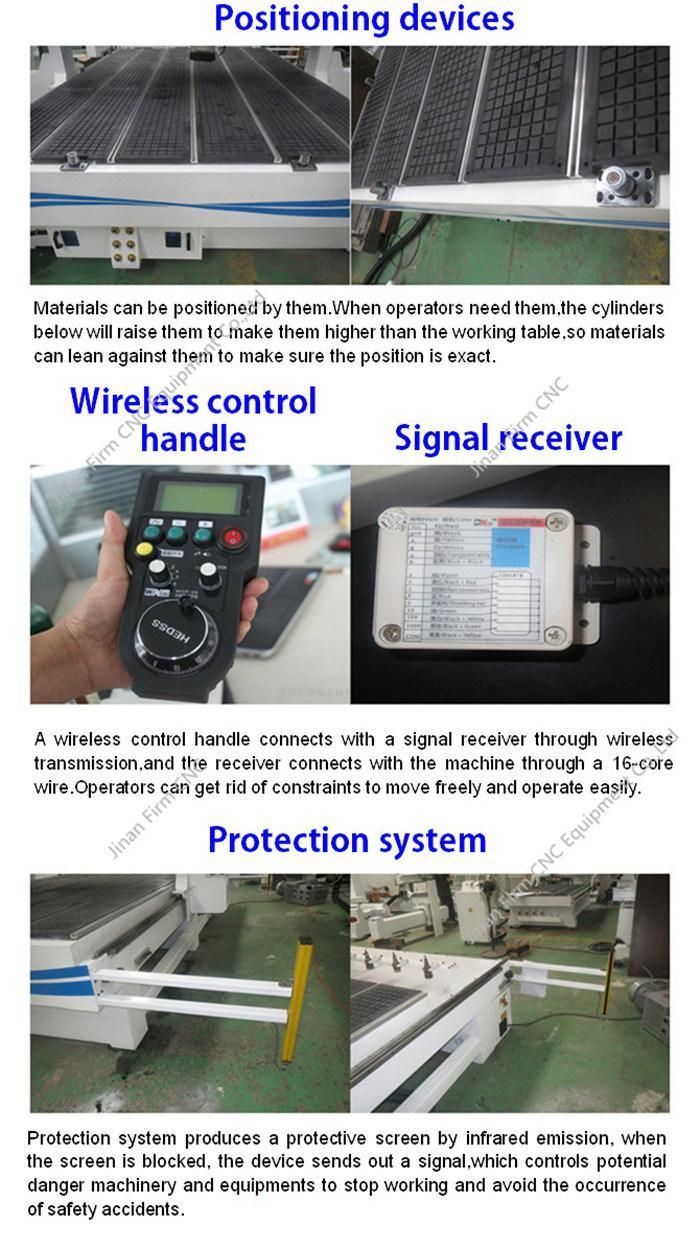

6.Advanced Protect system, meet European safety standards
7.8mm welded steel tube structure

8.Vacuum and T-slot table surface
9.Warranty: 1 year

10.Door-to-door technical service and 24 hours technology online support

Technical Parameters:

Description	Parameter
X,Y,Z Working Area	2000mmx3000mmx300mm
Table Size	2200mm*4000mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table Surface	Vacuum and T-slot Combined
Frame	Welded Structure
X, Y Structure	Rack and Pinion Drive,  HIWIN Rail Linear Bearings
Z Structure	HIWIN Rail Linear Bearings  and TBI Ball Screw
Max. Power Consumption	5KW(Without Spindle)
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Spindle Power	6.6KW
Spindle Speed	0-18000RPM
Inverter	7.5KW Delta Inverter
Drive Motors	Yaskawa Servo System
Electric Oscillating Tool	German ECOCAM EOT-2
Tangential Creasing Tool	German ECOCAM TCT-1
optical reader/CCD/ industrial camera	German DMK72AUC02
Working Voltage	AC380V/50/60Hz,3Phs
Command Language	G Code
Operating System	Syntec 10A-4E control system
Computer Interface	USB
Flash Memory	256M(U Disk)
Collet	ER32
X,Y Resolution	<0.03mm
Software Compatibility	Artcam Software, (Option: Type3 Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Packing Size	4000*2250*2000mm
N.W.	1800KG
G.W.	2000KG



Suitable materials:

With Spindle, EOT-2, TCT-1, CCD, is a CNC Multifunktionelle Anwendungen ( Versatile, Feature-Rich Production ).

Suitable for  cutting and engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.

The multifunctional cutting head, with CCD. Can catch the picture's shape directly, and then cut automaticlly.   Suitable for cutting  laminated sticker,  expanded PVC,  stadur (sandwich: paper or plastic + foam + paper or plastic), cardboard (normal cardboard or falconboard-544)...

Packing & shipment :

Save space as much as possible for container loading.

• Inside:Water-proof Plastic Film Package With Foam Protection
• Outside:Solid Seaworthy Wood Box Package
• Below: Steel Tube



Our service:

1.Free samples(I can give you samples for free)

2.Warranty:1 year

3.English software, user manual and operation CD videos.

4.Door-to-door technical  service and 24 hours technology  online support with  Skype,WhatsApp,QQ  or by mail and phone.
5.International quality certificate:CE,ISO9001:2008,Electrical components are UL and CE certificated

6.Every cnc router machine must be tested for 18 hours before delivery  , so all of them are absolutelyqualified.

FAQ:

1.How long about the machine's guarantee?

1 year

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.Do you Arrange Shipment For The Machines?

Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.

For EXW price, clients need to arrange shipment by themselves or their agents.
