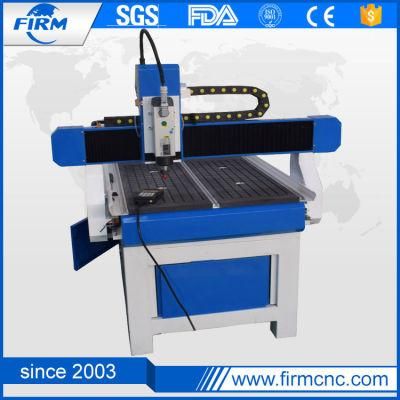

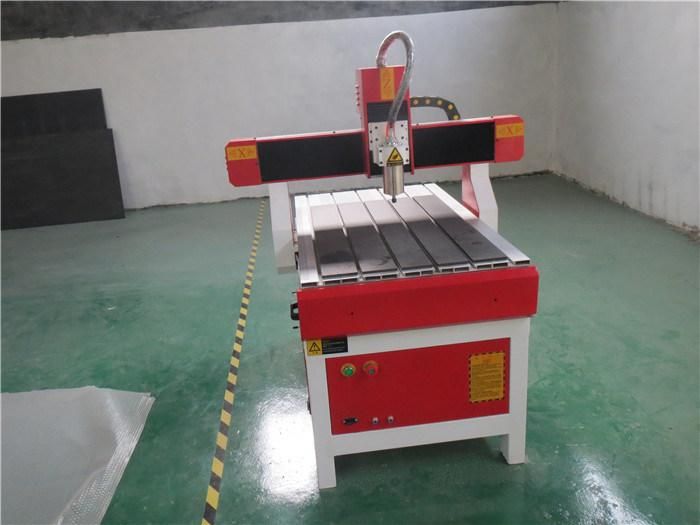

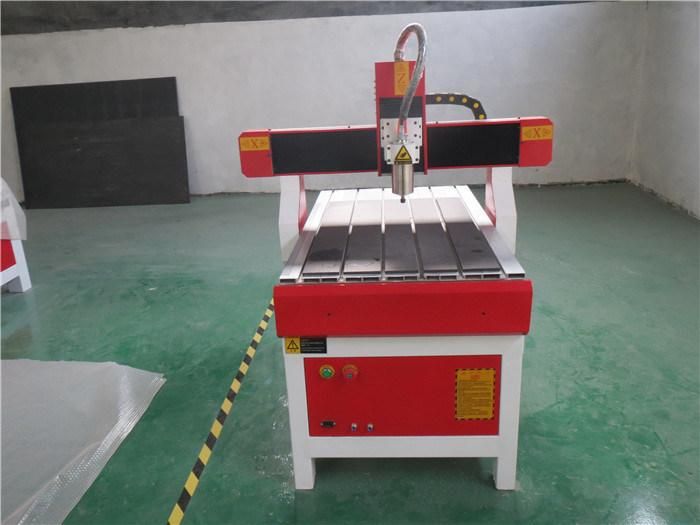

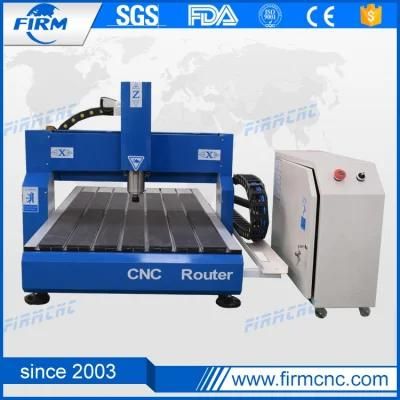

Compititive Price Woodworking CNC Router Machine 600mm*900mm

Jinan Firm CNC Equipment Co., Ltd.
  • Type：Vertical Uniaxial Wood Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：CE, ISO

Base Info

  • Model NO.：FM6090
  • Customized：Customized
  • Condition：New
  • Color：as Your Requirements
  • Xy Working Area：600*900*100mm
  • Table Surface：T-Slot Table
  • Transmission：Hiwin Square Guide Rail, Taiwan Tbi Ball Screw
  • Max. Working Speed：8000mm,Min
  • Spindle：1.5kw Water Colling Spindle
  • Max. Rapid Travel Rate：12000mm,Min
  • Table Size：800*1250mm
  • Computer Interface：USB
  • Control System：Nc-Studio,DSP
  • Transport Package：Plywood
  • Specification：CE ISO SGS
  • Trademark：FIRMCNC
  • Origin：Jinan, China
  • HS Code：84649012
  • Production Capacity：350,Mon

Description

Basic Info.

Model NO. FM6090 Customized Customized Condition New Color as Your Requirements Xy Working Area 600*900*100mm Table Surface T-Slot Table Transmission Hiwin Square Guide Rail, Taiwan Tbi Ball Screw Max. Working Speed 8000mm/Min Spindle 1.5kw Water Colling Spindle Max. Rapid Travel Rate 12000mm/Min Table Size 800*1250mm Computer Interface USB Control System Nc-Studio/DSP Transport Package Plywood Specification CE ISO SGS Trademark FIRMCNC Origin Jinan, China HS Code 84649012 Production Capacity 350/Mon

Product Description

Compititive Price Woodworking CNC Router Machine 600mm*900mm

Compititive Price Woodworking CNC Router Machine 600mm*900mm

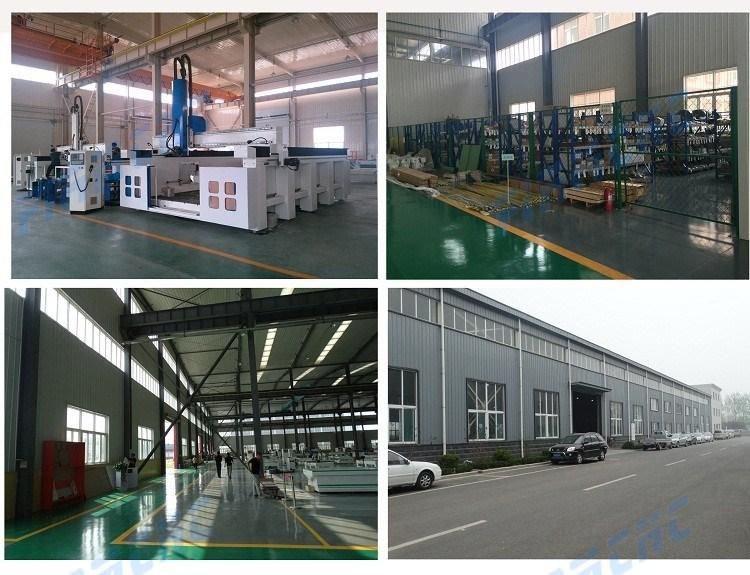

Jinan Firm CNC Equipment Co., ltd is one of the most famous professional manufacturer of CNC Router in China, and we have got CE/ISO certificates, because of the good service and the high quality we have obtained the good reputation in this business.

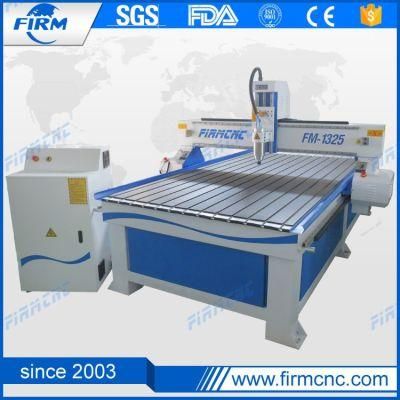

FM-1325 is a very popular products for sales, it can Engraving/Cutting/Carving MDF HDF Acrylic Trademark Aluminum...And it widely used in Woodworking industry, Artwork industry, Soft metal processing and so on, because of the good quality and the most competitive price our products have exported to all over the world.
Compititive Price Woodworking CNC Router Machine 600mm*900mm
The characteristics of this CNC router
1. High speed, high torque, high precision 3.0Kw water cooling guarantees the high working speed and accuracy
2. Taiwan Hiwin square rails guarantees the accuracy and strength of the machine.
3. Import servo motor adopt the current control system save the power consumption.
4. DSP control system, no need computer.
5. The key component parts all adopts casting tempering finish machining technology, ensures stiffness and accuracy.
6. It has the break-point memory points for 10 pcs, reducing materials waste.
7. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
8. Well designed dust and wanter proof device ensure the machine easy maintenance.
9. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.
10. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
11. The professional mechanical design, scientific structure and generous appearance.
Compititive Price Woodworking CNC Router Machine 600mm*900mm
Technical specification

No.
Description
Parameter

1
Working Area
600mmx900mmx120mm

2
Dimension(L*W*H)
1420mm×1120mm×500mm

3
X,Y,Z Traveling Positioning
Accuracy
±0.02/300mm

4
X,Y,Z Repositioning Accuracy
±0.02mm

5
Table Surface
T-slot table

6
Table Size
800mm×1250mm

7
Inverter:
Chinese Fuling Inverter/Taiwan Delta Inverter

8
Spindle
1.5KW Chinese Hanqi water colling spindle

9
Limit switch
Japan Omron limit switch

10
Oil LubricationSystem
Manual

11
X, Y,Z Transmission
Taiwan Hiwin Square Rail and TBI Ball Screw

12
Max. Power Consumption
5KW

13
Max. Rapid Travel Rate
12000mm/min

14
Max. Working Speed
8000mm/min

15
Spindle Power
1.5KW(optional:2.2KW/3KW)

16
Spindle Speed
0-24000RPM

17
Motors
450A stepper

18
Working Voltage
220V/380V

19
Command Language
G Code

20
Operating System
DSP System/NC-studio

21
Computer Interface
USB

22
Collet
ER16/ER20/ER25

23
X,Y Resolution
<0.03mm

24
Software Compatibility
Artcam Software/Type3 Software

25
Running Environment
Temperature
0 - 45 Centigrade

26
Relative Humidity
30% - 75%

27
Packing Size
1520mmX1220mmX700mm

28
N.W.
200KG

29
G.W.
260KG

Compititive Price Woodworking CNC Router Machine 600mm*900mm
Compititive Price Woodworking CNC Router Machine 600mm*900mm
Service
# One year warranty for the machine
# Replacing all parts for free during warranty
# If necessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer technical service within 24 hours.
Last but most important, if you are interest in or have any questions about this CNC router, please contact us without any hesitate,
we will offer the best service for you.
