• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Product Name：China Best Quality CNC Wood Router Wood CNC Router
• Table1325 CNC Router：1300*2500*200mm
• Spindle：3kw Water Cooling Spindle
• Table：Vacuum Table with T-Slot Table
• Guid Rail：Taiwan Hiwin Guid Rail
• Transmission：X Y: Gear Transmission Z: Ball Screw
• Inverter：Fuling,Delta Inverter
• Driver System：Stepper,Servo Motor and Drivers
• Contorl System：Weihong Nk105 DSP Control System
• Reposition Accuracy：0.02mm
• Transport Package：Plywood
• Specification：CE
• Trademark：FM
• Origin：Jinan, China
• HS Code：85219090
• Production Capacity：80 Set,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Product Name China Best Quality CNC Wood Router Wood CNC Router Table1325 CNC Router 1300*2500*200mm Spindle 3kw Water Cooling Spindle Table Vacuum Table with T-Slot Table Guid Rail Taiwan Hiwin Guid Rail Transmission X Y: Gear Transmission Z: Ball Screw Inverter Fuling/Delta Inverter Driver System Stepper/Servo Motor and Drivers Contorl System Weihong Nk105 DSP Control System Reposition Accuracy 0.02mm Transport Package Plywood Specification CE Trademark FM Origin Jinan, China HS Code 85219090 Production Capacity 80 Set/Month

Product Description

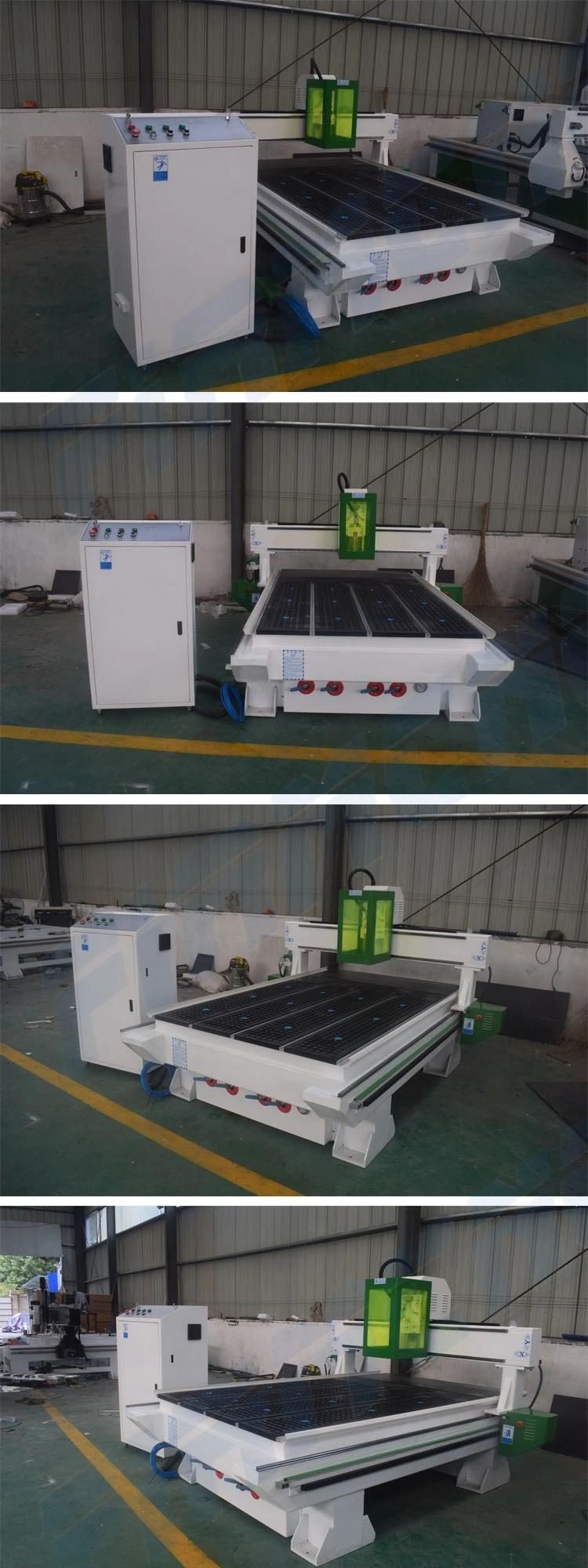

China Best Quality CNC Wood Router Wood CNC Router

Specification
# Vacuum table. 1300 *2500 mm working size
# Water cooled spindle, optional HSD spindle
# DSP contorl, Nc-studio control
# Step motor or Yaskawa servo motor

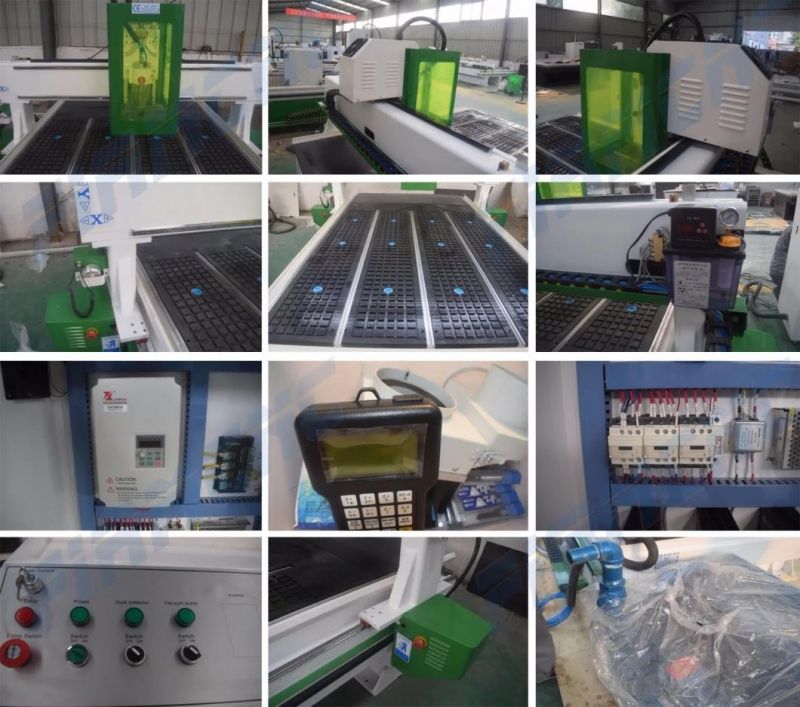

Top-quality components: high-precision, high-efficiency and long working life guaranteed by HQD or HSD spindle, Delta inverter, Hiwin square rails,
TBI ball screw, big Stepper Driving motors, DSP control system and so on.

Features:
1) Big steel square tube structure,by seamless welding and hardening treatment, guarantee it to be strong,reliable and durable, with large bearing capacity and long working life.
 2) Smooth and High-Precision Transmission:imported high-precision ball screw and Taiwan Hiwin linear square rails,
which move smoothly to ensure the machining precision. Strong and thick belt for mechanical transmission.
The rack with 1.25 helical tooth mold guarantees the quick and high precise transmission.
3) Humanized and beautiful designing with creativity.
* Breakpoint specific memory to keep the carving status when power off, processing time forecast and
other functions in case of the accidental power outages.
* Emergency Stop Buttons, emergent shutdown during unexpected accidents and do no harm to human.
* Colorful machines' appearances and high-quality paint make the machine beautiful.
4) Perfect details processing technology:every detail is treated very seriously so that perfect machine could be made.
5) Easy and safe operation and low maintenance cost.Easy and popular operation manual to make the user to learn quickly
how to operate the machine safely; Free training in our factory will be offered. Less time and less money will be
spent on the maintenance because of the top quality of the machines.
6) Many optional configuration and OEM service available.According to your requirement,
different configurations will be offered. OEM service is available for you.
7) Matured and perfect after-sales service system around the clock removes the worries for the future.
Free guarantee for one year and lifetime service; Overseas engineer is available for being dispatched.

Technical specification

Brand	Firm
Model	FM-1325
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size (mm)	2500 *1300
Engraving area (W*L*thickness) (mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate (rpm)	6000~24000
Motor Driver	Chinese servo motor or imported servo motor is optional
Tool Diameter (mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
EngravingSpeed (mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1500Kg

Application
1. Materials could be used: Wood, Timber ,PMMA,PVC Sheet, ABS sheet, KT sheet, Gemstone, Marble ,Aluminum and plastic composite panel, Iron,
Copper, Aluminum, Plastics and etc.
2. Widely used in furniture industry (2D/3D), furniture decoration industry, carpenter decoration, instrument industry,
wooden handicraft industry, large plate craving, wood furniture craving, density plate engraving, window and door craving and so on

After sales service
1.Delivery time: 15 working days after received your deposit
2.30% advance payment paid by T/T,70% balance payment paid by T/T before delivery.
3.The price does not inculde the installation and adjusting fees,but it is easy to be installed by yourself,we can provide the installation manual to you.
4.Warranty:1 year
5.Validity of quotation:30days.

Company information:
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.


Customers often ask
1.Can you recommend a plasma machine to me ?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness
for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
