4 Axis CNC Router 3 Heads Wood CNC Cutting Machine
Jinan Firm CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE, SGS
- CNC or Not：CNC
- Voltage：380V
- Working Area：1800*2500mm
- Computer Interface：USB
Base Info
- Model NO.：FM1825
- Control System：Nc-Studio,DSP,Syntec
- Max. Rapid Travel Rate：33000mm,Min
- Spindle：3.Kw Hanqi Water Colling Spindle,3kw Italy Hsd Air
- Max. Working Speed：25000mm,Min
- High Precision：0.02,300mm
- Frame：Welded Steel Tube Structure
- Transmission Structure：Rack and Pinion, Hiwin Square Guide Rail
- Table Surface：Vacuum and T-Slot Table
- Transport Package：Plywood
- Specification：CE, SGS, ISO
- Trademark：FIRMCNC
- Origin：Jinan, China
- HS Code：84649012
- Production Capacity：350,Mon
Description
Basic Info.
Model NO. FM1825 Control System Nc-Studio/DSP/Syntec Max. Rapid Travel Rate 33000mm/Min Spindle 3.Kw Hanqi Water Colling Spindle/3kw Italy Hsd Air Max. Working Speed 25000mm/Min High Precision 0.02/300mm Frame Welded Steel Tube Structure Transmission Structure Rack and Pinion, Hiwin Square Guide Rail Table Surface Vacuum and T-Slot Table Transport Package Plywood Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 84649012 Production Capacity 350/MonProduct Description

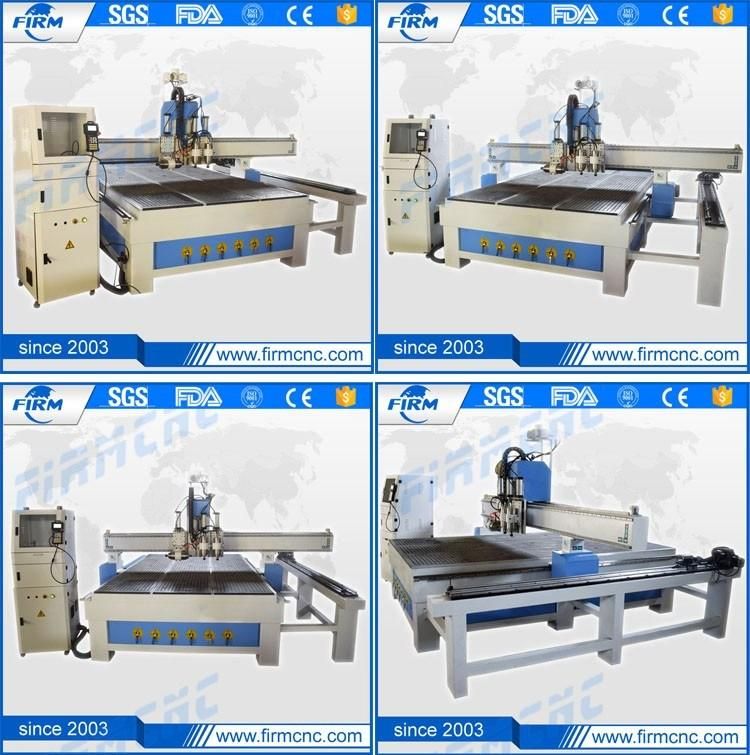

4 axis cnc router 3 heads wood cnc cutting machine
Advantages:
1. Free samples(I can help you process samples for free.
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 3 years
8.Door-to-door technical service and 24 hours technology online support
Techncial specification:
| Description | Parameter |
| X,Y,Z axis working area | 1800* 2500*300mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table surface | Vacuum Combined T-slot |
| Frame | Big steel tube structure |
| Control system | Taiwan Syntec control system |
| Spindle Power | 3kw water cooled spindle ( 3 ) |
| spindle rotating speed | 24000r/min |
| Tool type | Linear type |
| Guide rail | HIWIN square guide rail |
| Motor | AC Yaskawa servo motor |
| Rptary axis diameter | 300mm |
| Max. Rapid Travel Rate | 50000mm/min |
| Max. Working Speed | 30000mm/min |
| working voltage | AC380V/3PH/50HZ |
| Command Language | G Code |
| Computer Interface | USB |
| Operational System Software | Type 3/Artcam |
| Gross Weight | 1900KG |

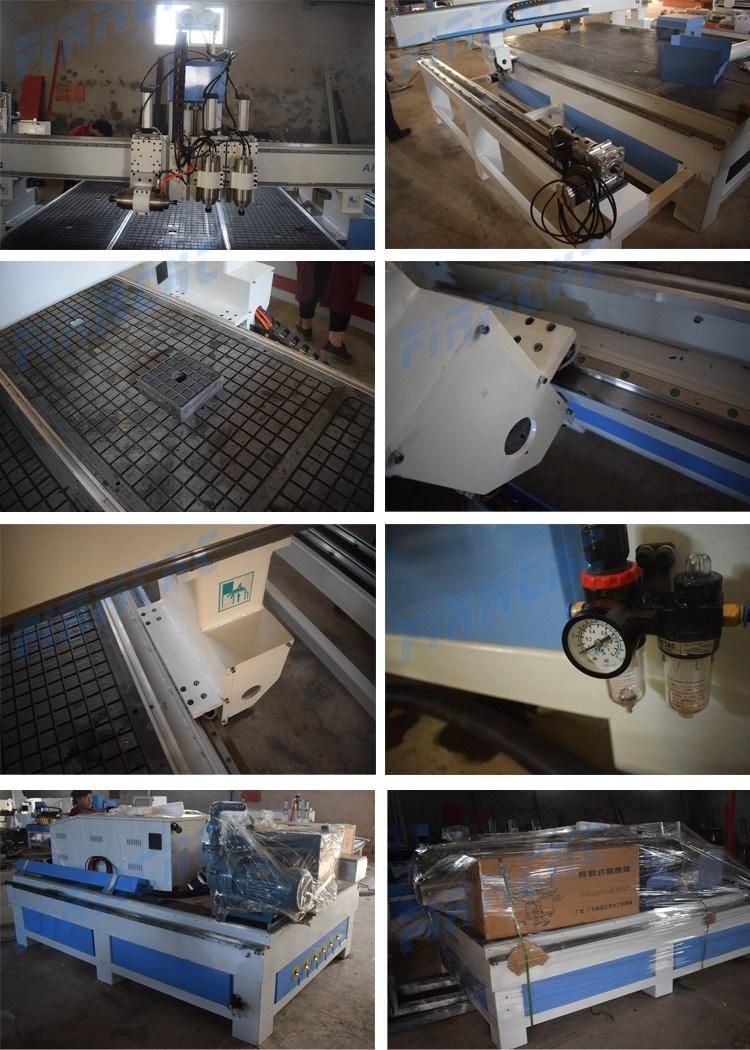

Details

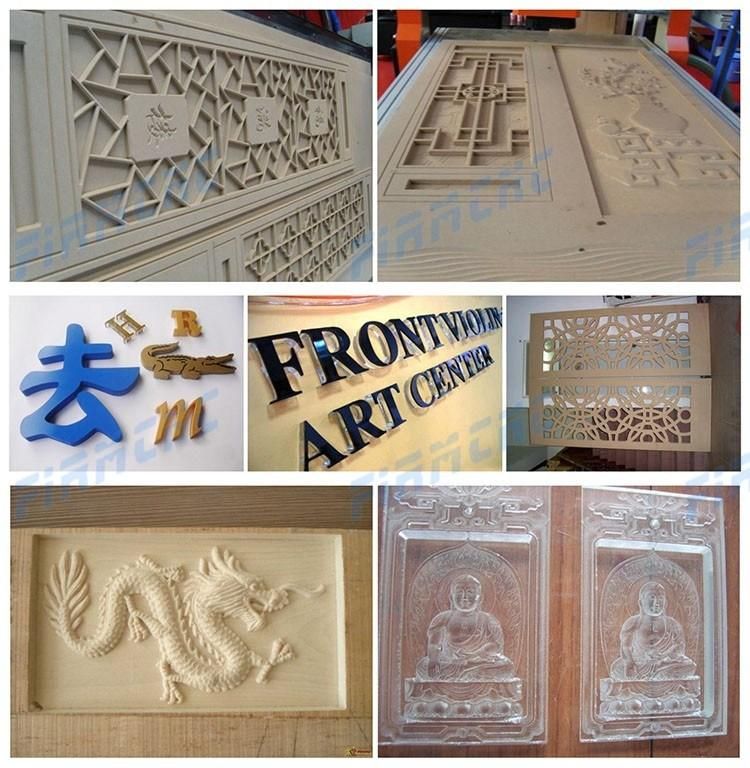

Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
- Inside:Water-proof Plastic Film Package With Foam Protection
- Outside:Solid Seaworthy Wood Box Package
- Below: Steel Tube
FAQ:
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
