• Model NO.：FM1325
• Cutting Thickness：0.3-40mm
• Cutting Speed：0-8000mm,Min
• Guide：Taiwan Hiwin Linear Guide
• Transmission：Helical Rack and Pinion
• Motor：Stepper , Servo Optional
• Drive：Leadshine Drive , Servo Optional
• Transport Package：Plywood
• Specification：CE, ISO, SGS
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Cutting Thickness 0.3-40mm Cutting Speed 0-8000mm/Min Guide Taiwan Hiwin Linear Guide Transmission Helical Rack and Pinion Motor Stepper / Servo Optional Drive Leadshine Drive / Servo Optional Transport Package Plywood Specification CE, ISO, SGS Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

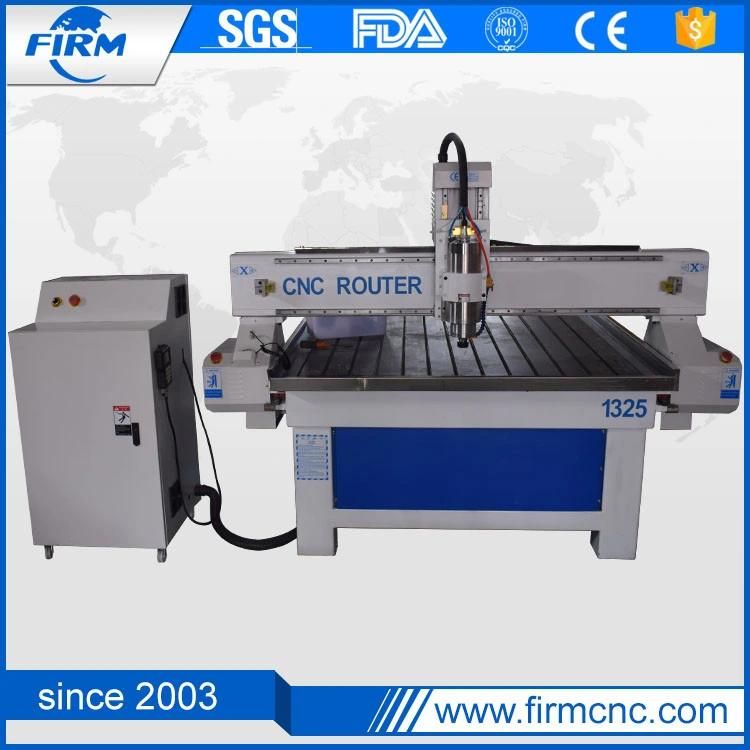

New CNC Wooden Cutting Engraving Carving Machinery

Jinan Firm CNC Equipment Co., ltd is one of the most famous professional manufacturer of CNC Router in China, and we have got CE/ISO certificates, because of the good service and the high quality we have obtained the good reputation in this business.
FM-1325 is a very popular products for sales, it can Engraving/Cutting/Carving MDF HDF Acrylic Trademark Aluminum...And it widely used in Woodworking industry, Artwork industry, Soft metal processing and so on, because of the good quality and the most competitive price our products have exported to all over the world.


The characteristics of this CNC router
1. High speed, high torque, high precision 3.0Kw water cooling guarantees the high working speed and accuracy
2. Taiwan Hiwin square rails guarantees the accuracy and strength of the machine.
3. Import servo motor adopt the current control system save the power consumption.
4. DSP control system, no need computer.
5. The key component parts all adopts casting tempering finish machining technology, ensures stiffness and accuracy.
6. It has the break-point memory points for 10 pcs, reducing materials waste.
7. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
8. Well designed dust and wanter proof device ensure the machine easy maintenance.
9. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.
10. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
11. The professional mechanical design, scientific structure and generous appearance.

Technical specificaton

Name	Specification
Machine Structure	Welded
X Y Guide Rail	Square Rail
X Y Transmission	Imported Rack gears
XYZ Axis Driver	Servo Motor(or Leadshine Stepper Motor)
Control System	Start control system(or DSP)
Working Dictate	G Code
Working Area(X*Y)	1300×2500mm
Cutting thickness	0.3-40mm
Cutting Speed	0-8000mm/min
Cutting precision	≤0.05mm
Repeat precision	≤0.05mm
Plasma Generator	American Hypertherm(Domestic LGK)
Document Transmission Form	USB Interface
Working Form	Untouched Arc Striking
Working Voltage	3-Phase 380V
G.W.	980KGS
Packing	Wooden case
Remarks	Configured with Taiwan servo speed reducing device

Samples

Other cnc router machines shown for you

Service
# One year warranty for the machine
# Replacing all parts for free during warranty
# If necessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer technical service within 24 hours.


JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330        Fax : 0086-0531-69986330
Website: http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091

Last but most important, if you are interest in or have any questions about this CNC router, please contact us without any hesitate, we will offer the best service for you.
