25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser Planer

Shandong STX Machinery Trade Co., Ltd.
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical
  • Motor Power：＞10Kw
  • Spindle Speed：＞5000rpm
  • Process Type：Heavy Processing
  • Certification：CE

Base Info

  • Model NO.：MB2063D
  • Knife Type：Spiral Cutter
  • Machine：Heavy Duty
  • Cutter Side：30 X 12 X 1.5mm
  • Voltage：Customized
  • Max. Working Width：635mm
  • Max. Working Height：200mm
  • Transport Package：Wood Case
  • Trademark：STX
  • Origin：China
  • HS Code：846592
  • Production Capacity：2000 Sets,Year

Description

Motor Power

Top spindle power

11kW

Bottom spindle power

7.5kW

Feeding motor power

2.2kW

Elevating motor power

0.37kW

Total power

21.07kW

Overall diamention

2700*1270*1680mm

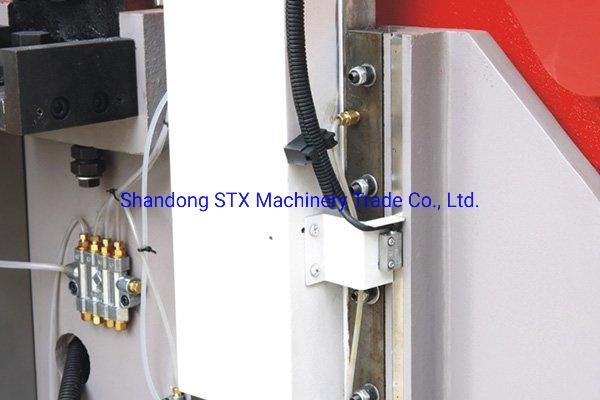

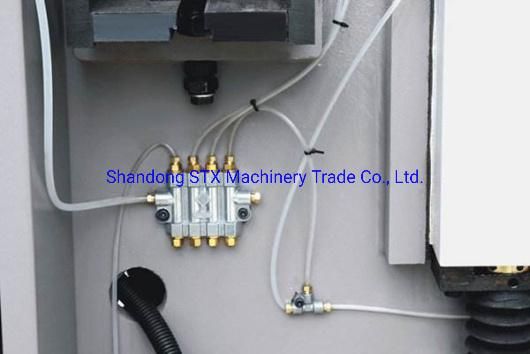

Detailed images25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser PlanerCentralized lubrication system

The configuration set to the cent ralized lubrication system, facilitate the lifting system maintenance lubrication.

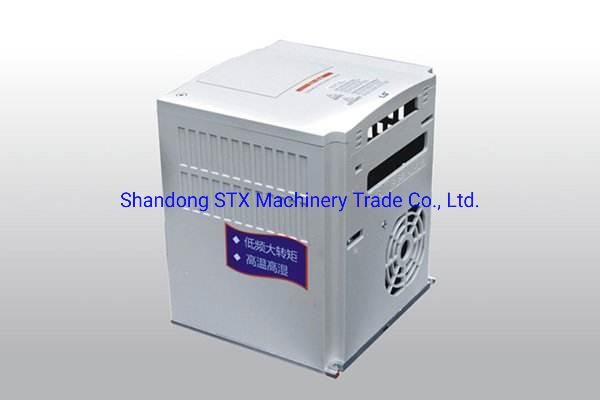

Feeding frequency inverter

Digital display, easy operation, energy saving,reduction of mechanical transmission wear.

25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser Planer25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser PlanerThickness Quick set

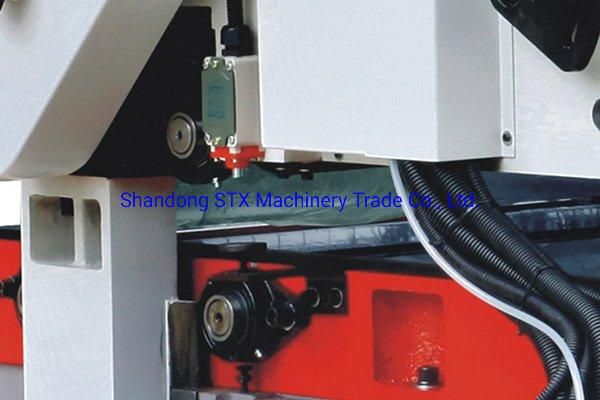

Simply preset thickness timber placed at the microswitch, you can do simple thickness settings

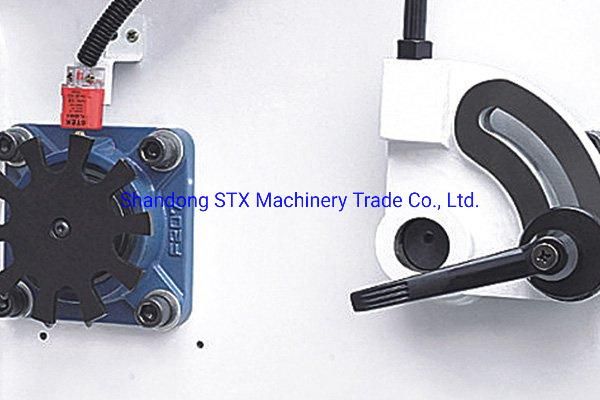

Gate magnetic induction switch

The thickness of the display gate magnetic sensors,accuracy is much higher than conventional proximity sensor.

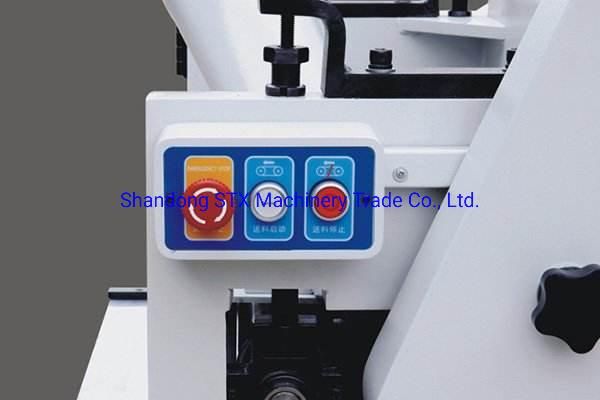

25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser Planer25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser PlanerRear operation box

Machine emergency stop or abnormal reactions only feed stop and start.

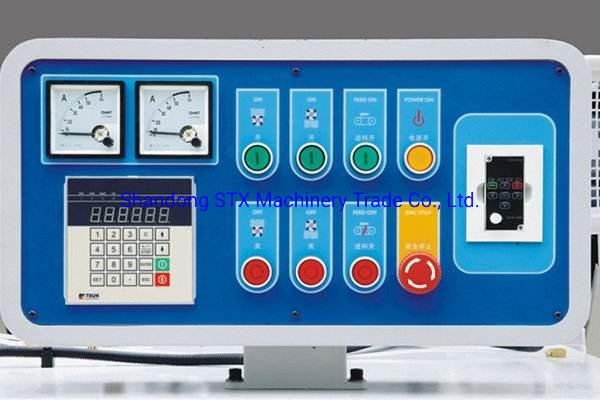

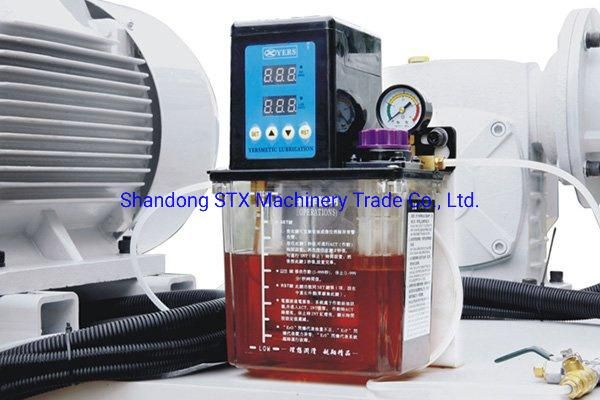

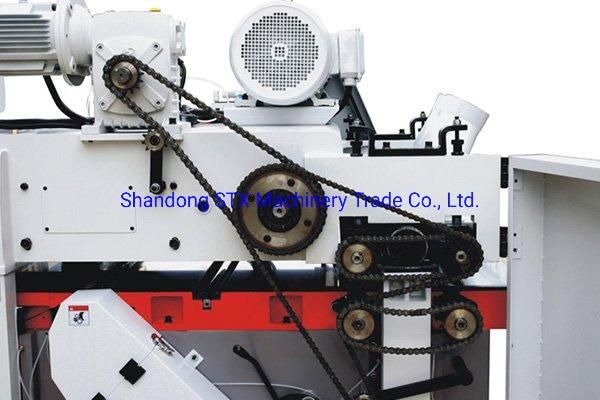

Feeding device is with clutch, which can prevent overload and give a safe operation.25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser Planer25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser Planer Auto grease device keeps the machine always lubricated during working.Alarm detector: When overload or stripping occurs with feeding chain, the alarm switch will give out signal alarm.25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser Planer25 Inch Width Solid Wood Automatic Double Side Surface Thicknesser PlanerThe product is provided with imported digital display device,which can be operated directly to processing thickness from operating panel with the accuracy up to 0.05mm; besides,upper and lower planning motor is provided with current meter for visual observing if it is overloaded while working.

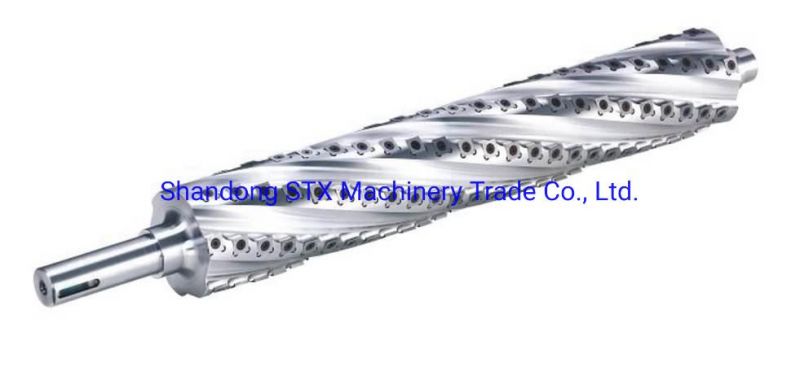

Screw arbor (Heavy Duty)

Arbor screw precision machining
Provide fine planing surfacing, and no noise
Arbor screw assembly removable tungsten carbide blade

DP-2063: Blade size  (30×12×1.5)×90pcs
