• Model NO.：508
• Condition：New
• Color：Multi Color
• Transport Package：Wooden Case
• Origin：China
• HS Code：8436990000

Basic Info.

Model NO. 508 Condition New Color Multi Color Transport Package Wooden Case Origin China HS Code 8436990000

Product Description

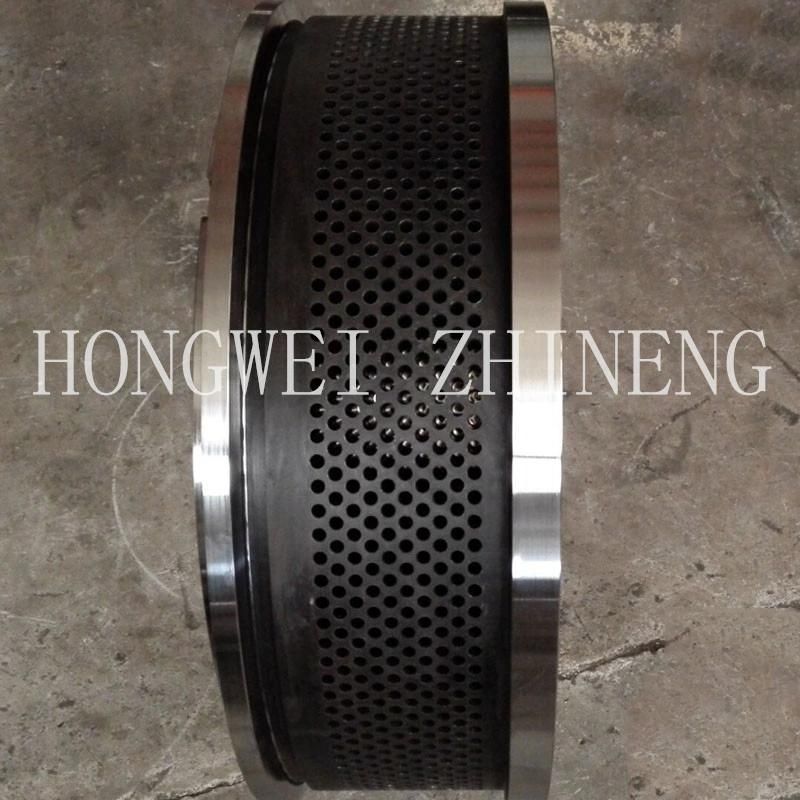

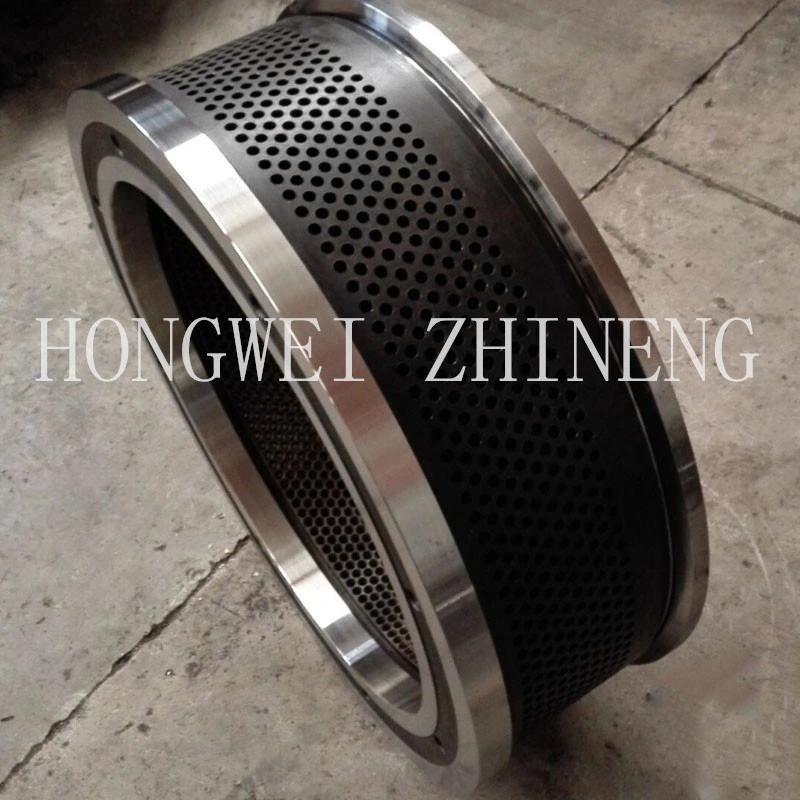

                                        508Ring die
Introduction of pellet machine ring die

1. Material of the ring die:  X46Cr13 /4Cr13(stainless steel), 20MnCr5/20CrMnTi (alloy steel) or customized
2. Hardness of ring dies: HRC54-60.
3. Diameter of ring die can do: 1.0mm up to 28mm
4. Pellet die type can do: Ring Die or Flat Die
5. Outer diameter can do: Outer diameter up to 1800mm
6. Pellet Die model we can customize:
   CPM, Buhler, CPP, OGM, Zhengchang(SZLH/MZLH), Amandus Kahl, Muyang(MUZL), Yulong(XGJ), AWILA,PTN, Andritz Sprout, Matador, Paladin, Sogem, Van Arssen, Yemmak, Promill; etc. We can customize for you according to your drawing.

Process for making pellet mill ring dies
Blank raw material Forging---Rough turning---Half finished turning---Drilling the hole---Grinding inner bore---Treaded hole--- Keyway milling---Heat treatment---Finish turning---Package
Why should choose us:
1.Experienced
over 5years experience on pellet machinery and spare parts.
2.Professional
professoinal sales and engineers team design according to customers needs
3.Manufacturer
We are manufacturer,customers can get better price and directly after-sales service.
