• Model NO.：S100-D
• Working Stroke：1220mm*2440mm+1220mm*2800mm
• Transport Package：Plwood Boxes
• Specification：1300*2500mm
• Trademark：Mars
• Origin：China
• HS Code：84659100
• Production Capacity：3000 Sets Per Year

Basic Info.

Model NO. S100-D Working Stroke 1220mm*2440mm+1220mm*2800mm Transport Package Plwood Boxes Specification 1300*2500mm Trademark Mars Origin China HS Code 84659100 Production Capacity 3000 Sets Per Year

Product Description

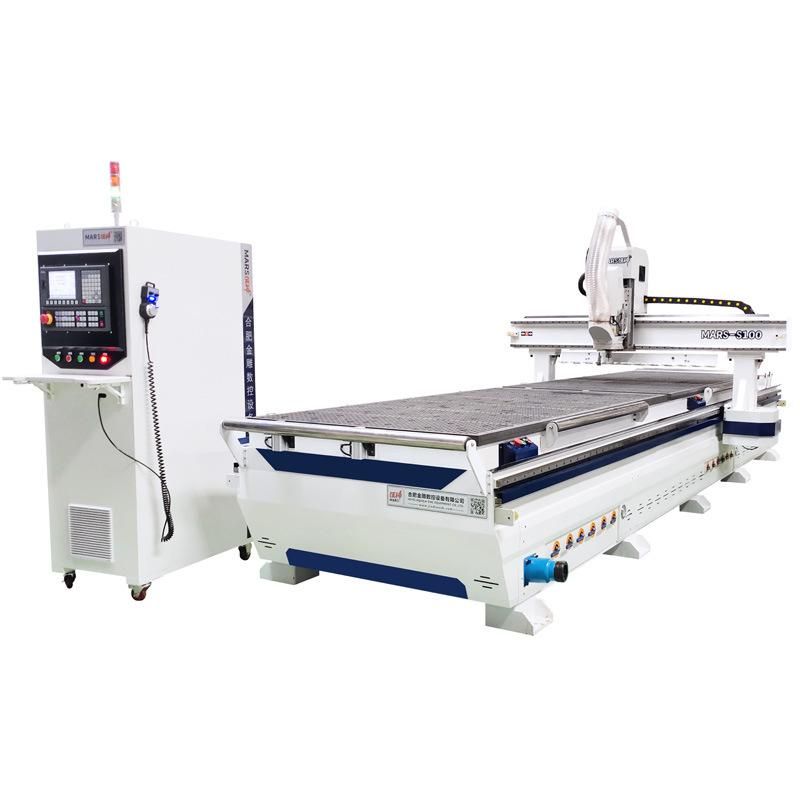

S100-D Linear ATC Double Working Table CNC Machining Center
 1,Product Parameters

Control System	Delta system
Drive System	Delta Bus servo motor
Spindle	9KW air cooling spindle; 0 ~ 24000 rpm/min
Tool Magazine	12pcs linear type tools magazine
Max. Machining Speed	10m-20m/min
Vacuun Pump Power	11kw Water cycle
Lubrication System	Automatic
Transmission Mode	X,Y reducer helical gear drive ,Z ball srew
Running Commands	G code, F/S command compatible
XY Axis Servo Motor	Taiwan Delta Bus servo
Z Axis Servo Motor	Taiwan Delta Bus with band-type brake
Adsorption Method	Cavity vacuum adsorption
Pushing device	Automatic pushing and dust collection,Dockable unloading platform
Positioning Device	L-type cylinder positioning
Tooling Setting	Automatic tooling setting
Re-Positioning Accuracy	±0.05MM
Guide Rail	Taiwan CSK
Ball Screw	Taiwan PYM
Reducer	Planetary
Frequency Converter	MARS/Zoncn/ Fuling optional
Cable	Guangdong CNC special high flexible cable
Electric	Delixi

2,Application scope

Processing	Cutting+Milling+Drilling+Slotting
Material	Artificial stone, wood, bamboo, marble, organic board, color plates and other materials
Application	Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings

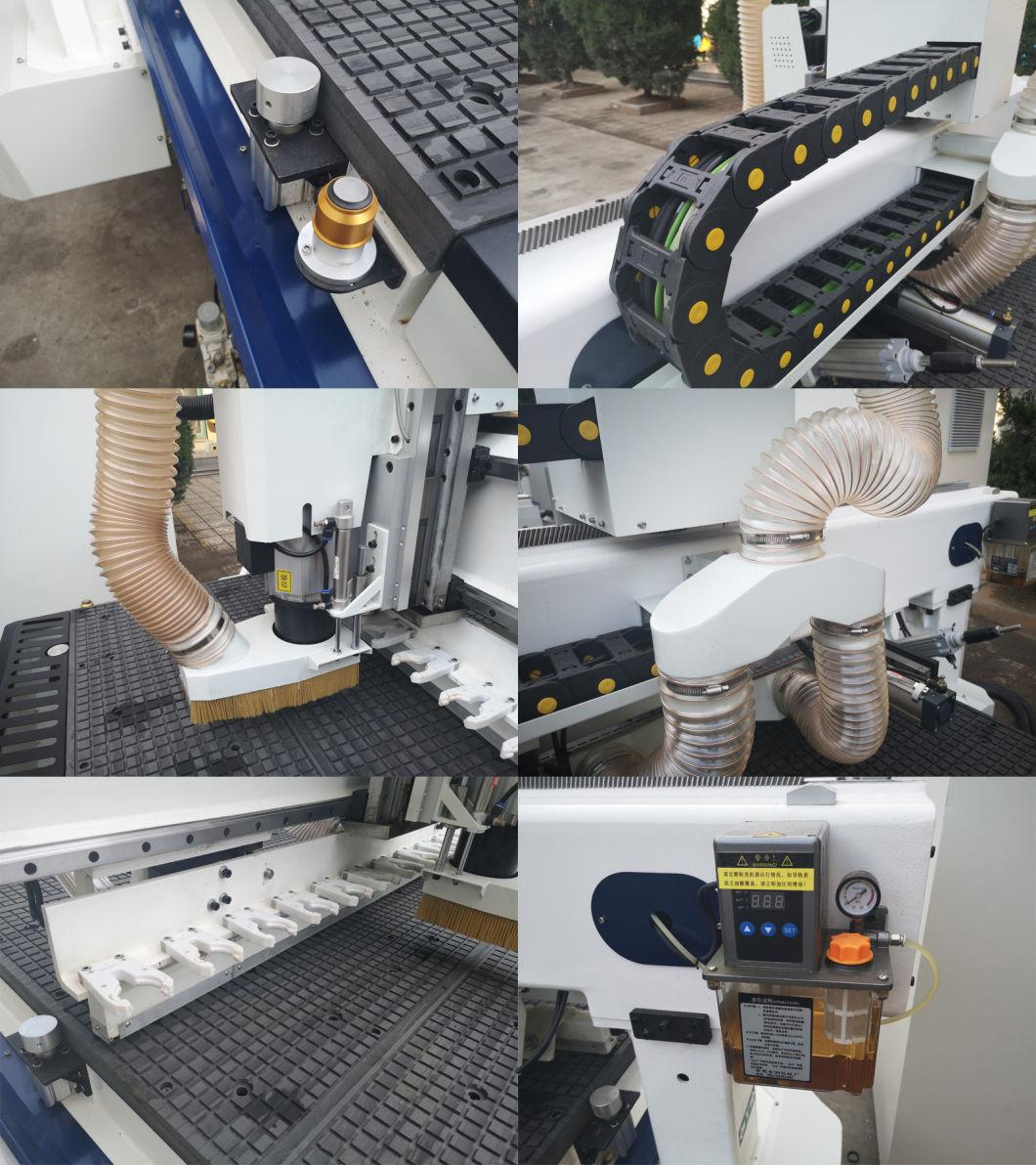

3,Main parts

4,Performance feature

1	Mainly used for cutting,drilling,slotting and one-time processing for the special shape plate in customized panel furniture enterprises,it can also be used for home decoration or cabinet door multi process modeling processing
2	Optional auxiliary feeding function for panel furniture industry,automatic unloading,the automation degree and production efficiency of the equipment are further improved
3	he equipment body welded by thick steel pipe,after high temperature tempering,Formed by CNC gantry machining center at one time,the structure is stable and never deformed
4	All three axes adopt the rectangular track imported from Taiwan,Z axis adopts Taiwan imported precision ball screw,XY axis adopts grinding gear and rack and is matched with imported high precision helical gear reducer,Y-axis double rack double motor drive, so that the machine can run stably at high speed
5	The euipment adopts high-strength phenolic board rectangular adsorption vacuum table,equipped with high efficient vaccum pump,table adsorption capacity is strong,has long service life,Delixi special electrical components
6	Humanized design of machine control interface,fool-style operation, the operator can be on duty after simple training without skilled workers
