• Model NO.：FM1325C
• Customized：Customized
• Condition：New
• Color：Customized
• Product：Wood CNC Router
• Working Area：1300*2500*200mm
• Control System：Nc Studio, DSP, March3, Syntec
• Spindle：Water Cooling, Air Cooling
• Motor：Leadshine, Delta, Yaskawa
• Inverter：Best, Fuling, Delta
• Table：T-Slot, Vacuum
• Transmission：Xy with Helical Rack, Z with Tbi Ball Screw
• Electrical Element：France Scheneider Contactor and Leakage Protector
• Lubrication System：Manual Lubrication
• Transport Package：Standard Export Woode Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325C Customized Customized Condition New Color Customized Product Wood CNC Router Working Area 1300*2500*200mm Control System Nc Studio/ DSP/ March3/ Syntec Spindle Water Cooling/ Air Cooling Motor Leadshine/ Delta/ Yaskawa Inverter Best/ Fuling/ Delta Table T-Slot/ Vacuum Transmission Xy with Helical Rack, Z with Tbi Ball Screw Electrical Element France Scheneider Contactor and Leakage Protector Lubrication System Manual Lubrication Transport Package Standard Export Woode Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

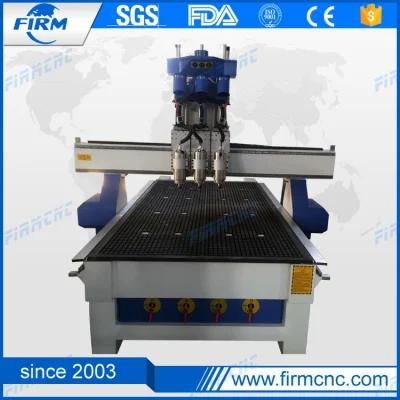

China FM1325C Atc Wood Carving Engraving Woodworking CNC Router


Main Feature of woodworking cnc machine
1. 9KW air cooling auto tool change spindle, imported Italian HSD spindle motor optional
(air cooled spindle 18000 rev/min)
2.Taiwan's high-precision H25 linear guide
3.Yaskawa servo motors, drives
4. Intelligent ATC system,change tools fast and easily.more time-saving safety. can add 6 tools, 8 tools or 10 tools,
(Optional inline type ATC)
5.Vacuum inhaling table,largely improved working efficiency.
6..Industry steel square tube structure lathe.
5.High quality X,Y,Z ball screw or high accuracy gear rack transmission system,imported linear square rails.
7.X,Y,Z high quality dust cover, effectively prevent dust come into the inside of machine.
7. Professional CNC control system,compatible with many CAM software such as Type3,artcam,wentai.
8.auto oil lubricator, dust hood,self-lubrication,tool length measure, push up pins

Technical Date of woodworking cnc machine

Product	Desc
X Y Z Working Area	2500*1300*200mm
Machine Weight	3800kg
Servo Motor	Yaskawa - Japan
Taiwan Syntec controller	DSP/NK260/NK300/Taiwan syntec control system
HQD ATC Spindale -Air cooled	9kw
Tool holders	8
Tool size	ER32     3.175/4/6/8/12.7/16/20   Standard  12.7
# of collets with machine	8 collets
Rack and Pinion	Rack gear
Max Rapid Travel Rate	0-60m/min
Max working speed	1-35m/min
Z axis structure:	Steel
Working voltage	AC380v , 50-60hz, three  phase
Table Surface	Vacuum table
Auto Lubrication	included
Auto tool Calibration	Included
Sheet positioning pins	Included with foot pedal
Hard limit, electric limit	Included
Over travel limit	included
Emergency stop	included
Command languages	G code
Paint Color	Silver gray  (a little green)
software	Type3/ ARTCAM
Tool box and manuals	For all components
Vacuum Pump - Power	10HP (5.5kw)  220 v 3-phase/ 380 v
Dust collector / Power	3kw 380V 3 phase
Guide rail	Square rail--linear guide rail
Other	Push up pins, self-lubrication, tool length measure

Application of woodworking cnc machine
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.

Other different kinds of cnc router machines

Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.
2016 Version Shanghai International CNC Exhibition photos,some customers paid the deposit for us right away
when we finished the test on the sc


Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

FAQ
1.How to choose a suitable model ? processing materials? max cutting thickness?
2.Do you have operation manual and working video?
3.Does your company can processing my samples?
4.If I bought machine, but don't know how to operation, what I can do?
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
