• Model NO.：JCW1325-3H
• Controlling Mode：CNC
• Customized：Customized
• Color：Customized
• Spindle Number：3
• Transport Package：Wooden Package
• Specification：1300mm*2500mm*200mm
• Trademark：Chaoda
• Origin：Linyi China
• HS Code：8465990000
• Production Capacity：200 Set,Month

Basic Info.

Model NO. JCW1325-3H Controlling Mode CNC Customized Customized Color Customized Spindle Number 3 Transport Package Wooden Package Specification 1300mm*2500mm*200mm Trademark Chaoda Origin Linyi China HS Code 8465990000 Production Capacity 200 Set/Month

Product Description

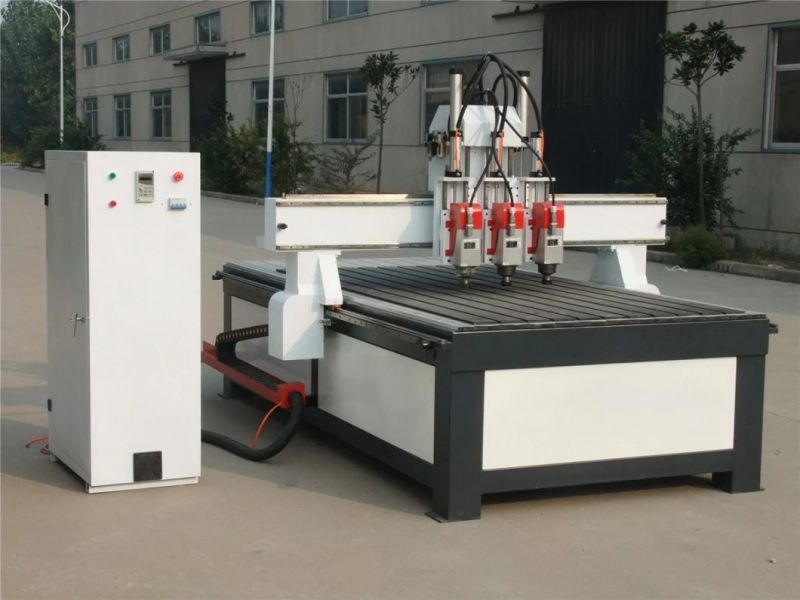

                                   CNC wood engraving machine for door cabinet

Description	Parameters
MODEL	JCW1325-3H
X,Y,Z axis working area	1300*2500* 200mm
X,Y,Z axis	Taiwan HIWIN square linear guide rail;
X,Y structure	Rack and pinion transmission, high speed and more stable; Y -double motor drive
Z structure	Imported ball screw, high precision
Spindle	4.5 kw water-cooled * 3kw water-cooled spindle
Spindle rotating speed	0-18000rpm/min
Max. operating speed	20m/min
Max. engraving speed	14m/min
Resolution	0.025mm
Reposition accuracy	0.05mm
Command language	G code*.u00*.mmg*.plt
Running environment	Windows98/2000/XP
Interface	USB
Operating system	Ncstudio control system
Software	Artcam
Spindle cutter	Φ3.175---- Φ12.7
Work Mode	Stepper (option : Servo)
Work voltage	AC380V, 3 phase, 50-60Hz

Wide applications:
1. Industries:
Furniture,  Decoration,  Musical Instrument,  Mould,  Craft,  Advertising Industries, and so on.
2. Materials:
Suitable for mass processing of solid woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics,
Acrylic Sheets, Glass, Organic glass, Aluminum plates and other materials.
3. Performances:
- It can be used to engrave Text, Pictures, Imagines on flat or curve surface(doors,cabinets,desk legs,casting moulds, food moulds,relief craftworks, pendants, automobile accessories, chest cards and various label plates).
- It's also good at cutting and drilling on those materials.

Technical advantages:
This model adopts unique multi spindle design , make the machine have ATC function with 3 tools. Saving production time and cost, enhancing the working efficiency.
High accuracy Imported linear guide rail, high quality ball screw make sure heavy burthen and fast speed.
Good performance, low noise, long life span, low maintenance cost.
Advanced DSP control system (out of computer),easy to operate and learn.
Adopt high-speed stepping motor and driver,Y axis adopts double motors to drive.

                               After-sale service we provide?
1. Friendly English version manual and operation video CD disk.
2. 2-3 days free training, making sure customers operate machine well.
3. 24 technical support via email, phone, remote-control, skype, whatsapp.

                          How to make sure this machine best suitable?
1. Think over first the material, size, and operation you want.
2. We can also give you suggestions.
