• Model NO.：ELECNC-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC380V,50Hz or Customized
• Weight：1500kg
• Control System：Taiwan Syntec6MB Controller
• Application：3D Wood Craft, Wooden Toy, MDF
• Spindle：6kw Hqd Air Cooling Spindle
• Motor：750W Japan Yaskawa Servo Motor
• Inverter：7.5kw Fuling Inverter
• Working Area：1300*2500*400mm
• Software：Ug
• Transmission：Taiwan Tbi Ball Screw and Swede
• Transport Package：Stretchy Film Inside, Plywood Case Package Outsid
• Specification：according to your order
• Trademark：BLUE ELEPHANT
• Origin：Jinan City, Shandong Province
• Production Capacity：200sets,Months

Descriptions

Parameters

Model

ELE1325-4

Working area

1300*2500*400mm

Control system

Taiwan SYNTEC6MB Controller

Working Voltage

380V or 220V

Spindle

6kw HQD air cooling spindle, spindle rotation in 180 degrees, 18000RPM

Spindle speed

0-18000rpm

Inverter

7.5kw Fuling inverter

Motor and Driver

750w Japan YASKAWA servo motor and driver

Table surface

T-slot and vacuum working table

Structure

Heavy Duty 8mm Steel machine bed; 10mm Moving Steel Gantry

Lubrication system

Manual lubrication system

Transmission

X,Y axis: rack and pinion drive

Z axis: Taiwan TBI ball screw

X,Y axis: Sweden ABBA square guide rails with 20mm

Vacuum pump

5.5kw Votex vacuum pump,

Control box

independent box

Software

UG

Rotary

200mm diameter and 2000mm length of rotary device on Y axis

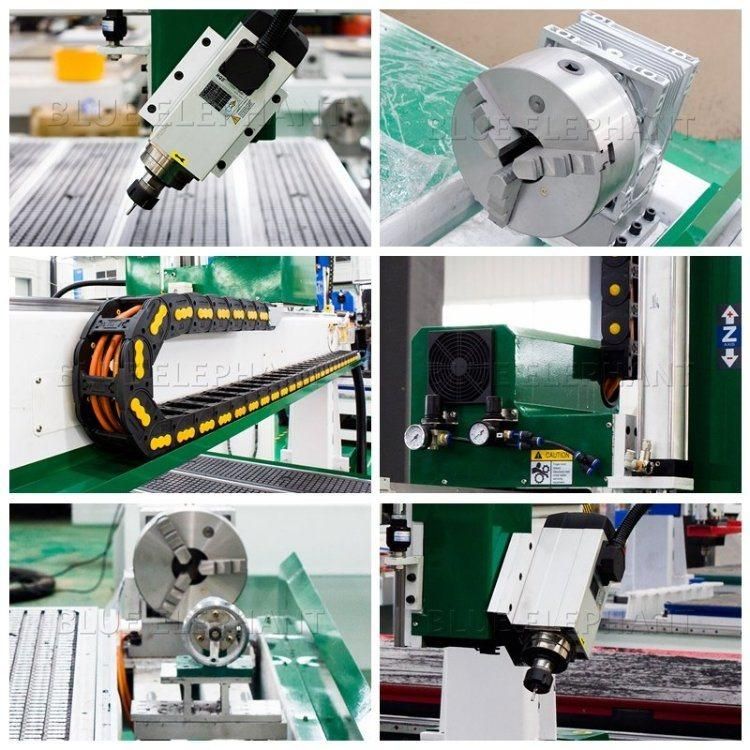

Details


Optional Parts

1.1 Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.

1.2 Spindle cover and Dust collector

They are designed for human operation protection and promise clean table surface, save maintenance time for you.

1.3 Pump

We can provide vacuum pump or water circulation pump for your choice.

1.4 Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.

We can also provide other optional parts according to your needs.

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

Feedback


Packaging&Service

Generally we will take care of your machine packages well like picture show.

Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong plywood case package according to your needs.

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email or MSN/Skype around the clock

2. Friendly English version manual and operation video CD disk

3. Engineer available to service machinery overseas

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.

Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc

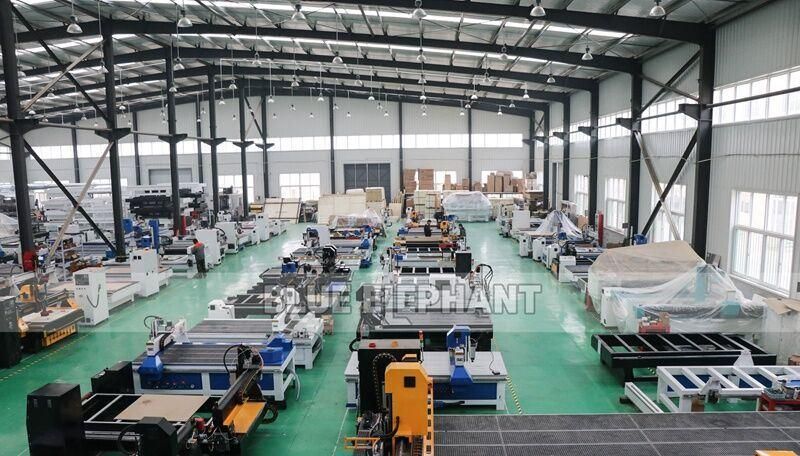

Our Factory






• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.
