• Model NO.：DT1212-1
• Customized：Customized
• Condition：New
• Color：Customized
• Spindle：Scm Hiteco Italy 17kw
• Tool Magazine：Bamboo Hat Atc
• Vacuum Pump：160m3
• Servo：Yaskawa
• Linear Guide and Ball Screw：Taiwan Hiwin and Tbi
• Transport Package：Plywood Case
• Specification：DT1212-Z850
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：1 Sets Per Month

Basic Info.

Model NO. DT1212-1 Customized Customized Condition New Color Customized Spindle Scm Hiteco Italy 17kw Tool Magazine Bamboo Hat Atc Vacuum Pump 160m3 Servo Yaskawa Linear Guide and Ball Screw Taiwan Hiwin and Tbi Transport Package Plywood Case Specification DT1212-Z850 Trademark DONGTONG Origin Shandong China HS Code 84659900 Production Capacity 1 Sets Per Month

Product Description

5 AXIS CNC MACHINING CENTER
5 AXIS CNC ROUTER
5 AXIS CNC MACHINE
5AXIS CNC ROUTER IN WOOD ROTER
From professional cnc woodworking engraving machine maufacturor.






1. All ball screw driving, high precision, long service life. X/Y axis adopts screw fixing nut rotating structure, high speed, balance and reliable.
2. The design of overall beam and beam seat, good rigidity, high precision.
3. Z axis drive section and some parts made by casting materials, high strength, good rigidity.
4. Automatic exhaust lubrication system, software controlled fuel rationing timely and quantitatively.
5. Five axis double swing, B and C axis adopt gapless worm gear drive, the output torque rigidity, back lash adjustable quickly.




1. MOULDING INDUSTRY: It can engrave all kinds of nonmetal moulding,especially for auto car foam moulding, steamship wooden model,aviation wooden model,train wooden model and so on.
2. MUSICAL INTRUMENT INDUSTRY: It can engrave 3D surface of large scale musical instrument, and the contour cutting.
3. OTHER INDUSTRY: Stair railing,large-scale sculpture.model of UAV,the handle of a gun and so on.



CONFIGURATOIN	CNC1212-1 5 AXIS CNC MACHING CENTER
Spindle	Italy Scm Hiteco 17KW 24000RPM Water cooling HSK F63
Working area	1200×1200×850mm
B Axis(°)	±110(0-220)
C Axis(°)	±200(0-400)
Tool quantity	5 pcs
Servo	Yaskawa from Janpan
Control system	Sytec 200 from Taiwan
Screw & Rail	TBI from Taiwan
Inverter	Delta
Vacuum pump	160m³/h Eurovac from Taiwan
Geometric accuracy	0.04mm/200mm
Re-positioning accuracy	≤0.03mm
Workpiece accuracy	±0.1mm/200mm
Machine's size	2400x2400x3500mm
Weight	6800 kgs

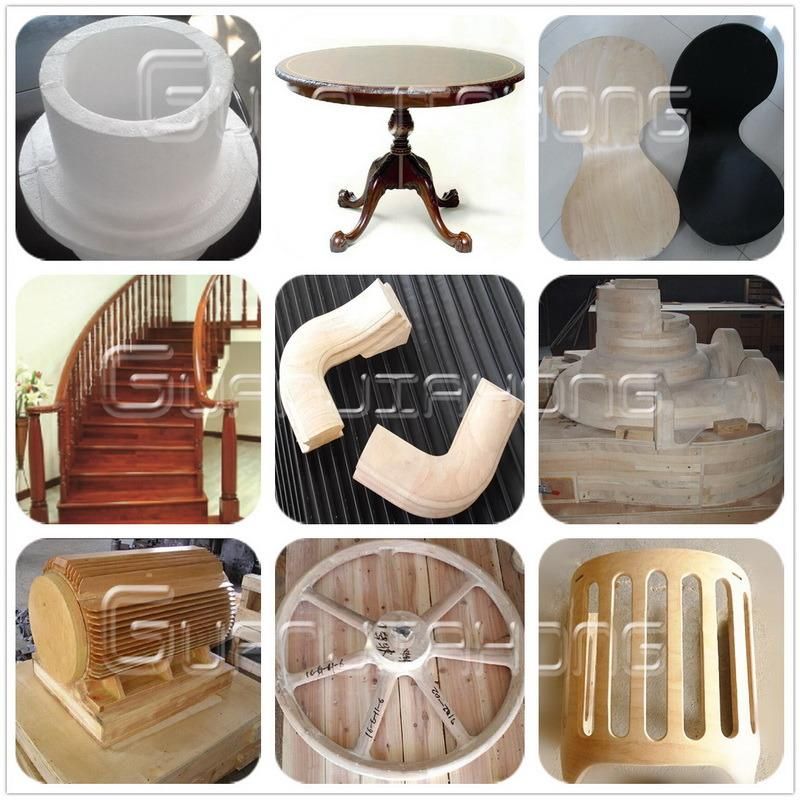

Our perfect engraved samples:

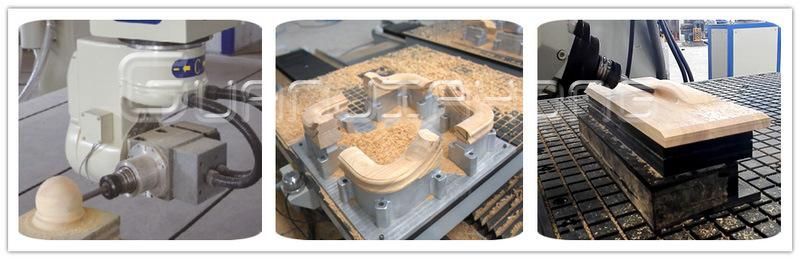

Our Processing Time:

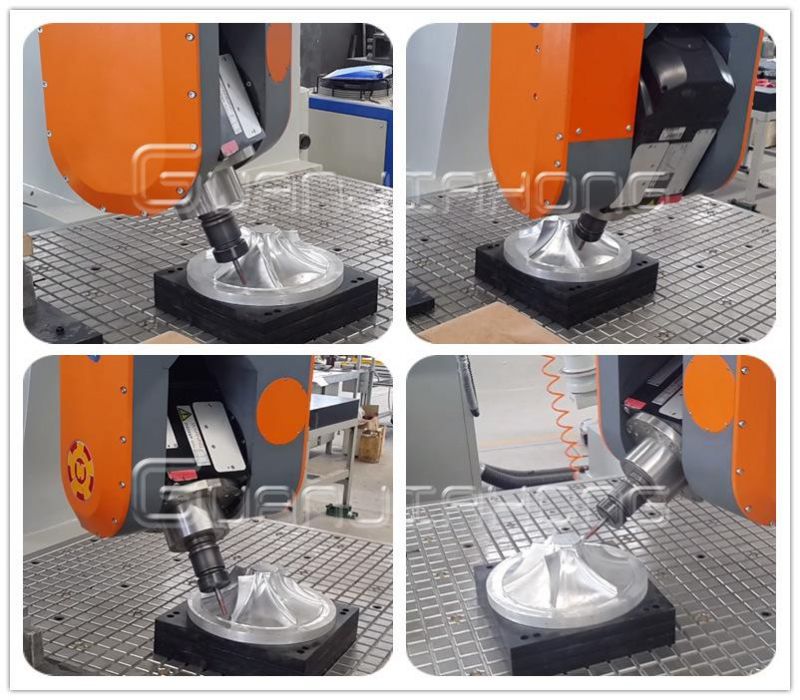

Also can be used for Aluminium mold:


 Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.



 Guarantee & After-sale service1. One year warranty under normal use and we supply lifelong maintenance. 2.24 hours technical support by Phone, Email, Skype, Msn, or romote. 3. Free training to make sure you master the operation of the cnc router.
 OEM Service Available1. Usually, we will manufacturer the machine as our regular design. 2. X Y Z Working Area could be custmer-oriented designing. 3. Special configuration could be customer-oriented designing.
