• Model NO.：HT-SG630
• Color：Customized
• Product Name：Sanding Machine
• Power：11kw
• Machine Weight：2000kg
• Sanding Plate Width：630mm
• Sanding Plate Thickness：2.5-100mm
• Sanding Plate Lenght：>370mm
• Front Belt Velocity：20m,S
• Rear Belt Velocity：16m,S
• Conveyor Belt Speed：6-24m,Min
• Conveyor Belt Size：630*2920mm
• Transport Package：Fumigation-Free Wooden Case
• Specification：1800*1150*1900mm
• Trademark：Honest
• Origin：China (Mainland) of Henan
• Production Capacity：300sets,Month

Basic Info.

Model NO. HT-SG630 Color Customized Product Name Sanding Machine Power 11kw Machine Weight 2000kg Sanding Plate Width 630mm Sanding Plate Thickness 2.5-100mm Sanding Plate Lenght >370mm Front Belt Velocity 20m/S Rear Belt Velocity 16m/S Conveyor Belt Speed 6-24m/Min Conveyor Belt Size 630*2920mm Transport Package Fumigation-Free Wooden Case Specification 1800*1150*1900mm Trademark Honest Origin China (Mainland) of Henan Production Capacity 300sets/Month

Product Description

Excellent Performance Sanding Machine with Competitive Price
 1.Machine Introduction:
Fully automatic sanding machine, flat surface curved sand sander.
The primer sander is mainly suitable for solid wood flooring, panel furniture, composite plank, solid wood doors and windows, handicrafts, antique floor paint and sanding finish.
The machine tool adopts the lifting structure of the upper body frame, and the working table is constant relative to the ground height. When the thickness of the workpiece changes, the body rises and falls.
The front sand roller is used to sanding the plate, and the rear sand light roller makes fine sand. It has high precision, does not nibble the head, does not sweep the tail, does not cover the side, thus gets the better effect. It is especially suitable for the production line. It is a necessary equipment for the high grade sheet production line. Lower sand machine line use, one feed up and down two sides can be sanded at the same time, high efficiency saving manpower. Mainly used for: panel furniture, solid wood doors, calcium silicate board, decorative plate, fibreboard and other flat board thickness sanding.

2.Features:
1, the use of air bag sanding pad, high sanding accuracy, good effect, front microcomputer control panel, easy to operate, flexible and fast.
2, in the case of failure, equipment power failure, brake, The conveying bed produces the protection drop, may protect the workpiece from being destroyed.
3, the advanced dynamic balance detects the fixed thickness roll, the steel roll, the belt pulley, causes the machine to run more smoothly.
4, the sand frame adopts the steel construction body structure, the deformation is small, Good vibration absorption effect.
5, high power transmission speed regulation, strong transport, high production efficiency.
6, air pressure is insufficient or sand belt fracture since Dynamic shutdown to ensure safety.
7, energy saving, high production efficiency, flat and smooth processing plate.
8, light, electricity, gas integrated design, reliable operation.

3.Technical Parameters:

Model		HT-SG1000
Voltage	380v	380V
Working form	automation	automation
Power	11kw	15kw
Machine weight	2000kg	25000kg
Sanding plate width	630mm	1000mm
Sanding plate thickness	2.5-100mm	2.5-100mm
Sanding plate lenght	>370mm	>370mm
Front belt velocity	20m/s	20m/s
Rear belt velocity	16m/s	16m/s
Conveyor belt speed	6-24m/min	6-24m/min
Conveyor belt size	630*2920mm	1000*2980mm
working air pressure	0.5-0.8Mpa	0.5-0.5Mpa
Belt size	650*1920mm	1020*2020mm
Machine size	1800*1150*1900mm	2050*1580*2200mm

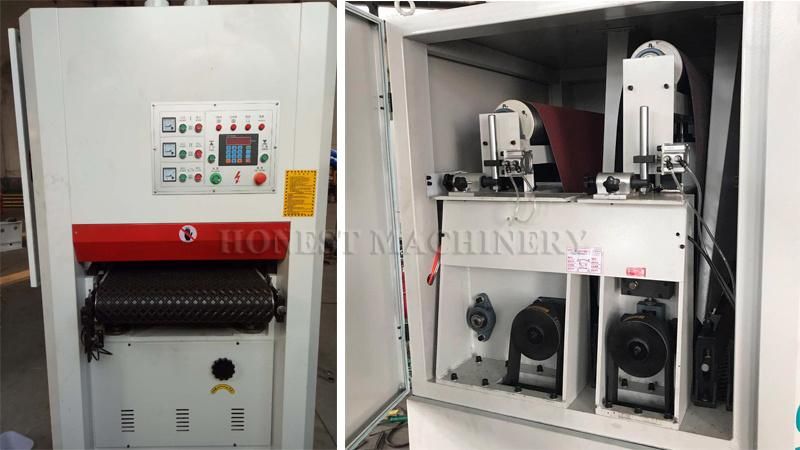

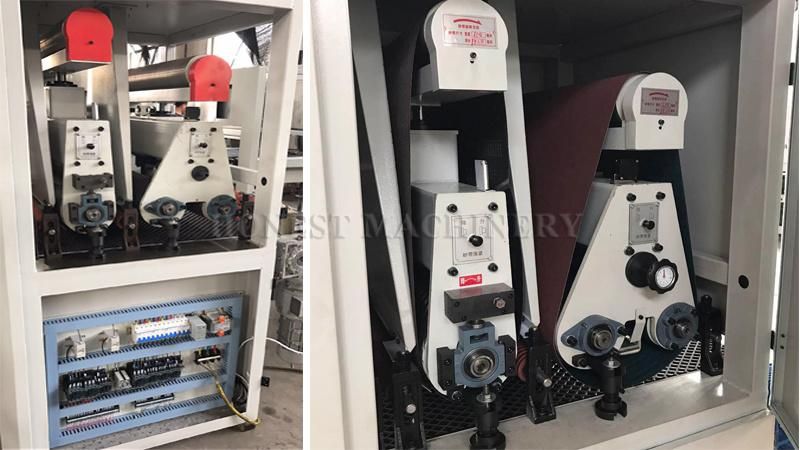

4.Machine Pictures:




5.Company Certificates:



6.Our Customers:


7.Contact us:
If you need further information, please contact us freely, we will do our best to cooperate with you.
