• Model NO.：JC1530-5AXIS
• Customized：Customized
• Condition：New
• Color：Customized
• Working Size：1500X3000X1000mm
• Working Table：T-Slot with Clamps
• Spindle Power：10kw Air Cooling Atc
• Tool Magazine：Disk Type, 8 Tools Ability
• Working Mode：Japan Servo
• Control System：5 Axis Syntec
• Software：Powermill
• Option：Rotary Device
• Application：EPS Foam,Styrofoam,Polystyrene,Wood,PVC,Aluminum
• Name：5 Axis CNC Engraving Machine , 5 Axis CNC Woodwork
• Transport Package：Iron Wires, Film.
• Specification：1500X3000X1000mm
• Trademark：CHAODA
• Origin：Linyi, Shandong, China
• HS Code：8465990000
• Production Capacity：200sets,Year

Basic Info.

Model NO. JC1530-5AXIS Customized Customized Condition New Color Customized Working Size 1500X3000X1000mm Working Table T-Slot with Clamps Spindle Power 10kw Air Cooling Atc Tool Magazine Disk Type, 8 Tools Ability Working Mode Japan Servo Control System 5 Axis Syntec Software Powermill Option Rotary Device Application EPS Foam,Styrofoam,Polystyrene,Wood,PVC,Aluminum Name 5 Axis CNC Engraving Machine , 5 Axis CNC Woodwork Transport Package Iron Wires, Film. Specification 1500X3000X1000mm Trademark CHAODA Origin Linyi, Shandong, China HS Code 8465990000 Production Capacity 200sets/Year

Product Description

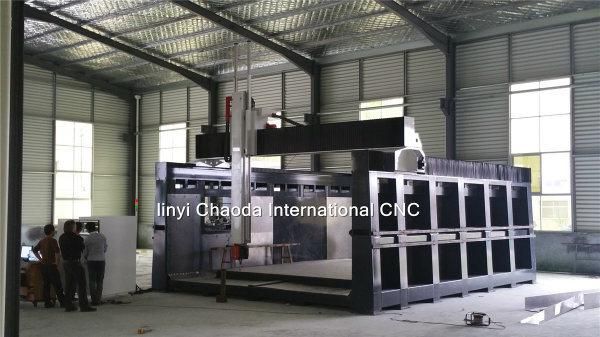

5 axis cnc router for large 3d mould sculptures making

Model: JC1530-5AXIS



Application Materials:

eps foam,styrofoam,polystyrene,wood,MDF,plastic,acrylic,aluminum composite panel,aluminum block,copper and so on.

Technical Features:

1. Welded lathe bed of profiled steel, stabilizing treated under high temperature
2. Y axis with double motors to drive that ensures stable and precise performance
3. Adopt high precision rack gear transmission, and Imported square linear guide rail that ensure high accuracy,fast speed ,heavy duty with long service life.
4. professional design and high quality machine parts provides this CNC Router with low break down rate
5. big power 10kw spindle,high working speed,good performance
6. disk type automatic tool changer system,can change 8 tools automatically
7. All dust-proof and water-proof design.

Optional Machine Size:

2000mm*3000mm, 2000mm*4000mm, 3000mm*3000mm, 4000mm*5000mm.
Also can be customized according to your specific requirements.

Technical parameter:


1	Model	JCS1530-5AXIS
2	X,Y,Z axis working area	1500*3000*1000mm
3	Whole structure	Welded Steel gantry structure
4	Table surface	T-slot with clamps
5	X,Y,Z structure	Square linear guide rail
6	X,Y structure	Rack and pinion
7	Z structure	ball screw
8	Max. idling speed	60m/min
9	Max. working speed	30m/min
10	Spindle	10kw air-cooling ATC spindle
11	Spindle rotating speed	0-24000rpm/min
12	Diameter of tools	3.175 -20mm
13	Tool magazine	disk type, with 8pcs tool magazine
14	command	G code
15	working model	Japan servo
16	Operating system	Taiwan SYNTEC control system ( option: OSAI )
17	software	powermill
18	oil system	automatic
19	voltage	AC380V, 3ph, 50-60Hz
20	weight	12000kg
21	option 1	rotary device
22	option 2	3d scanner

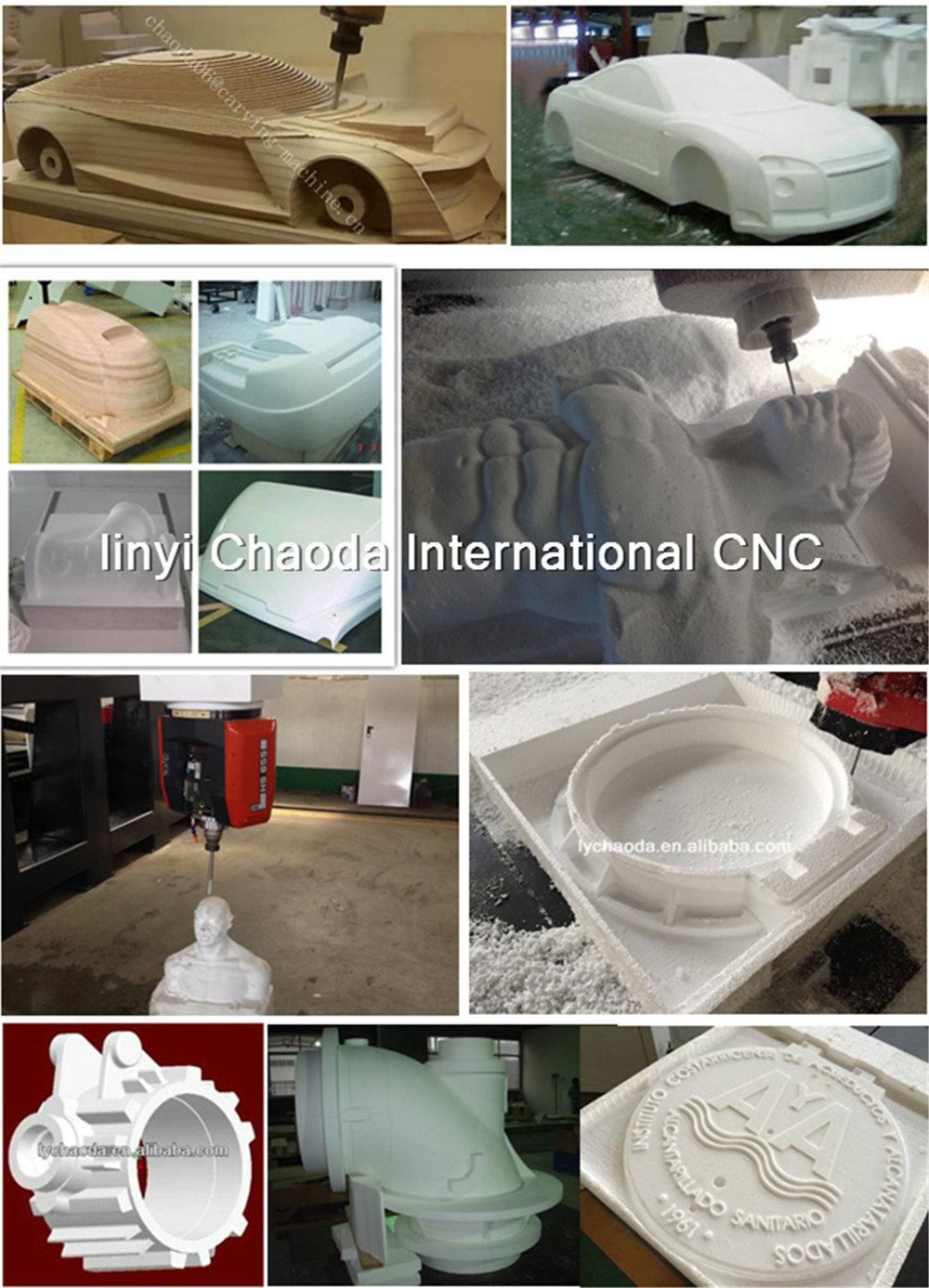

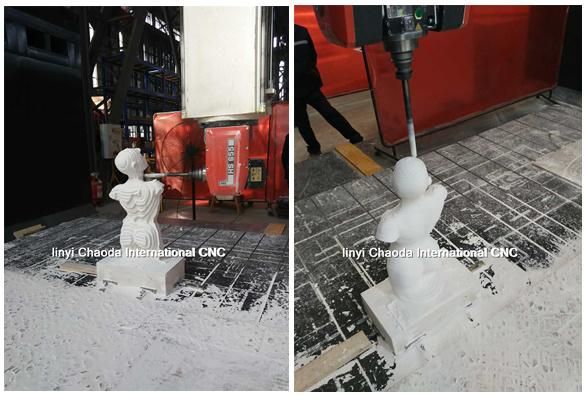

Sample pictures:





Certificates:




contact us as below guide, we will offer you our best price !!
