• Model NO.：KL150P
• Warranty：2 Years
• Customized：Customized
• Condition：New
• Color：Multi Color
• Raw Material：Below 6mm in Powder
• Tractor Power：8HP to 150HP
• Capacity：40kg,H to 1200kg,H
• Transport Package：Plywood Box
• Specification：75*32*61cm
• Trademark：chengda
• Origin：China
• HS Code：8479300000
• Production Capacity：5000 Piece Per Year

Specification1). Low noise.2). CE approved.3). Long service life.4).Good after-sale service.5). Move it anywhere you want.6).Set it freely for little space.

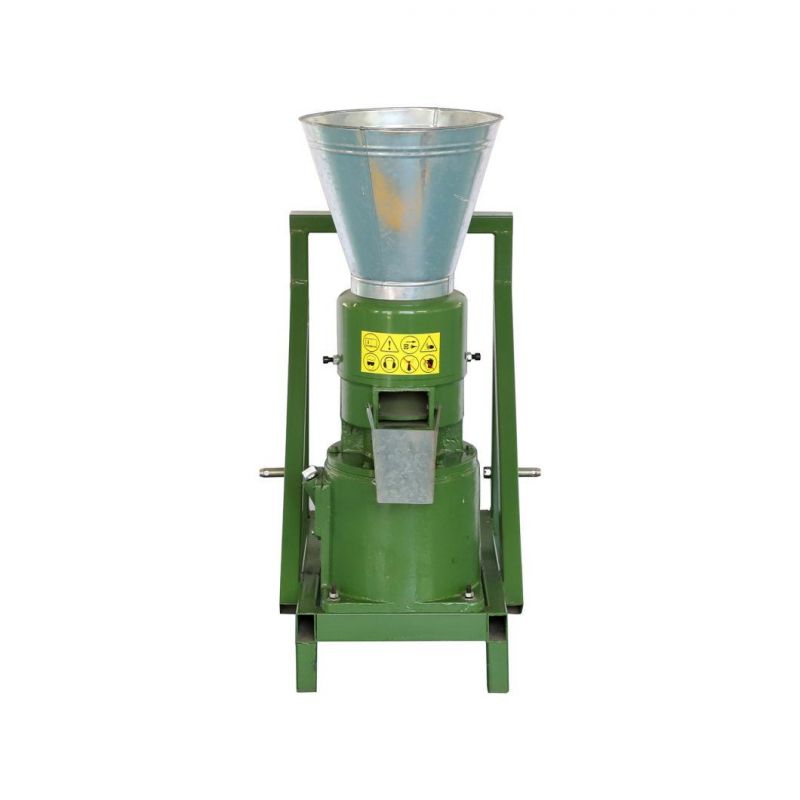

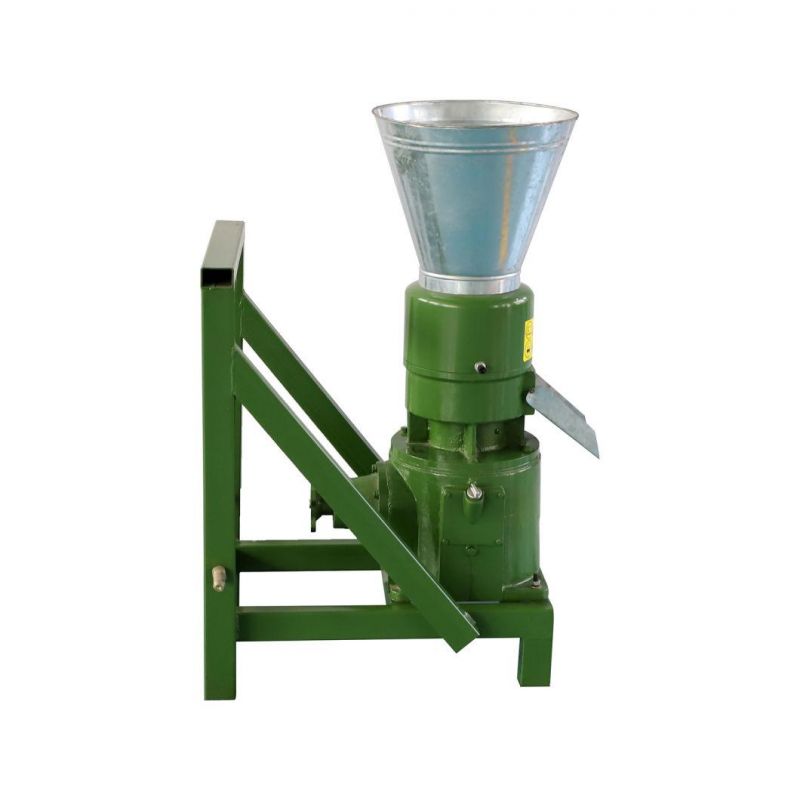

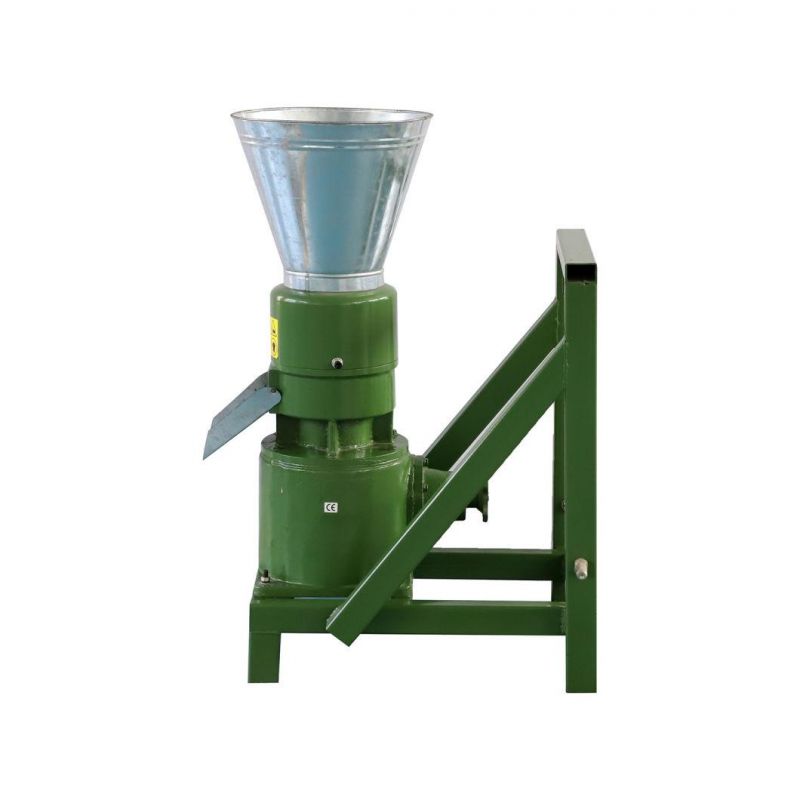

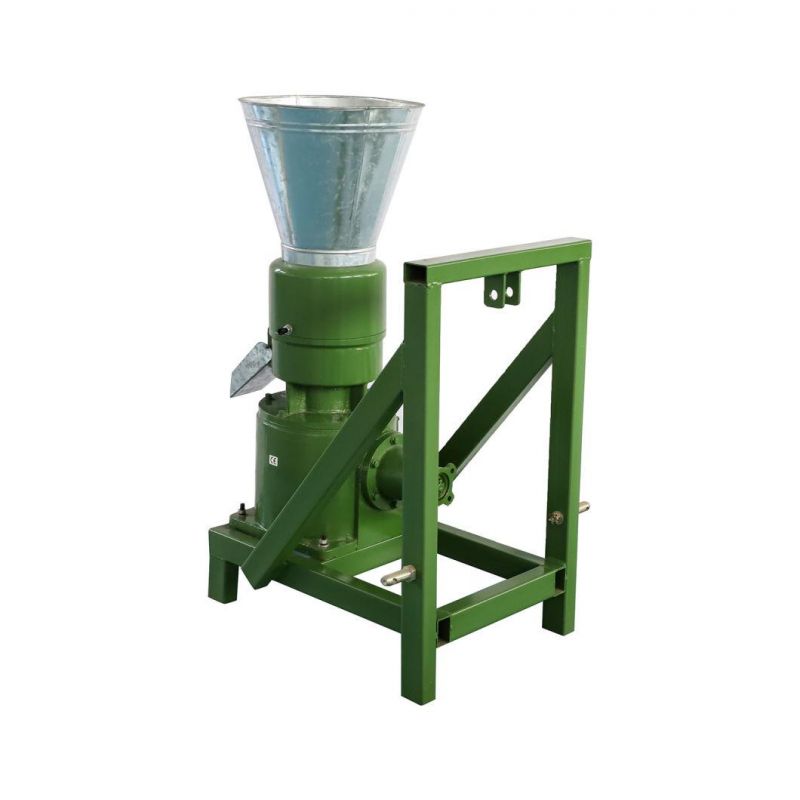

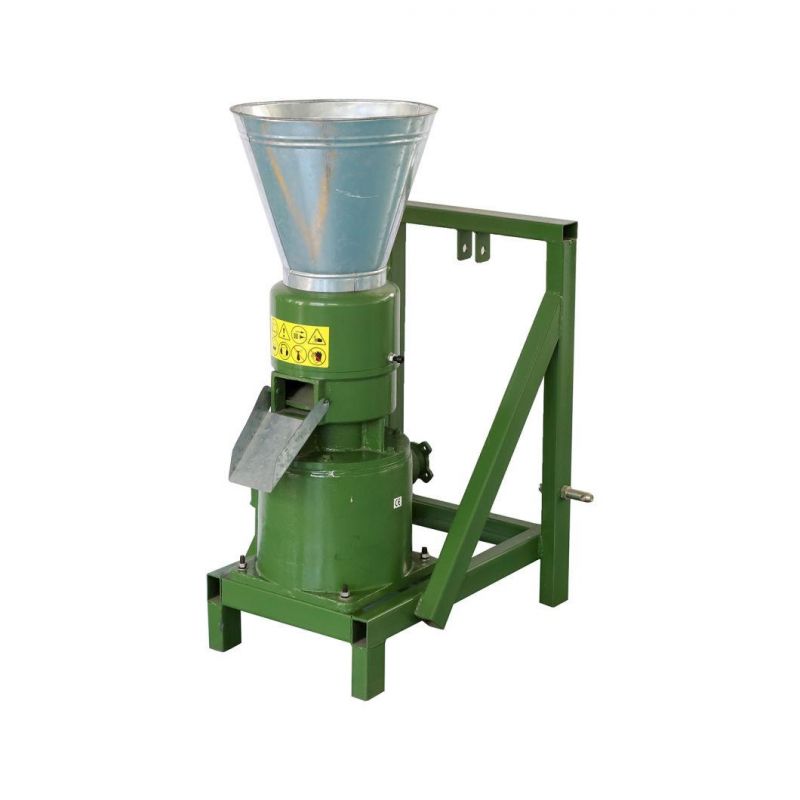

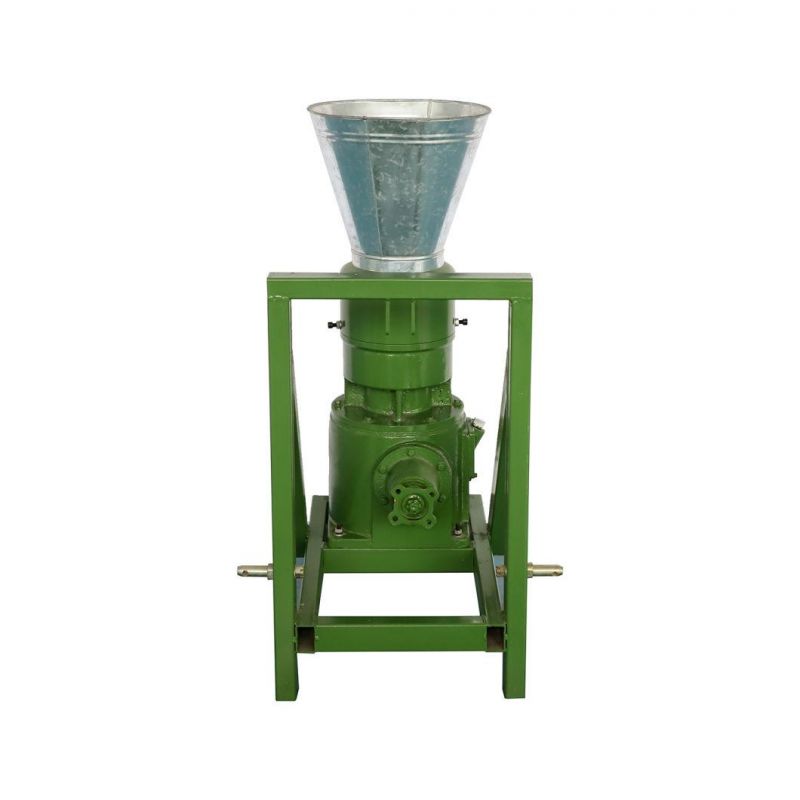

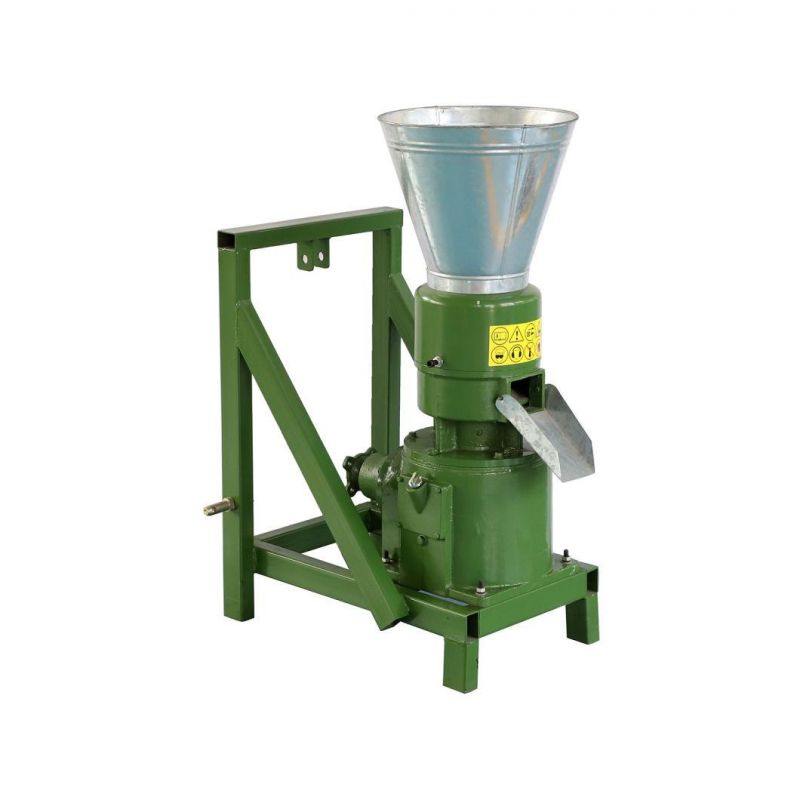

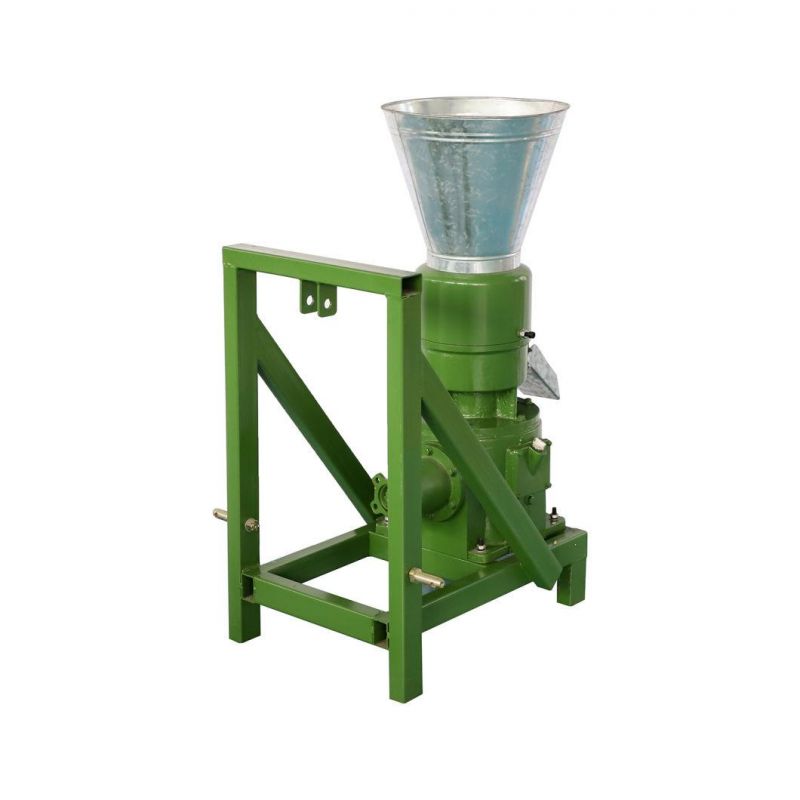

 Advantages1. With reasonable design and compact structure. The PTO wood pellet mill is designed to be connected and disconnected easily.

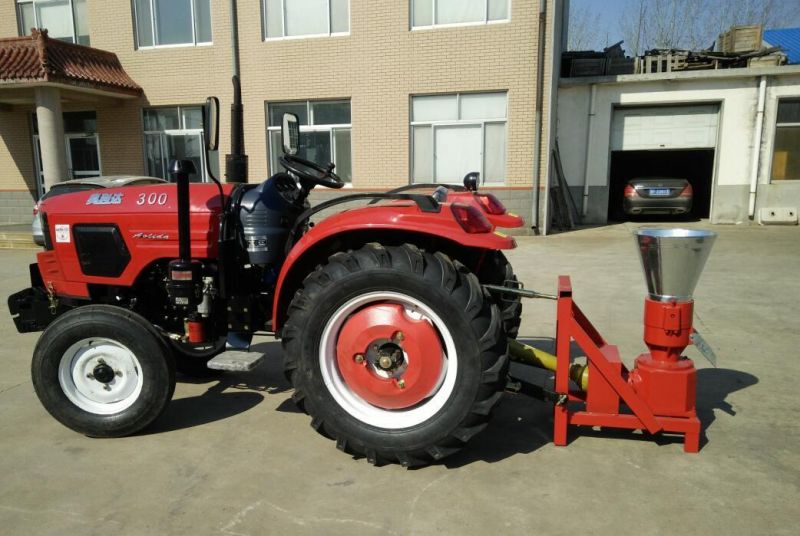

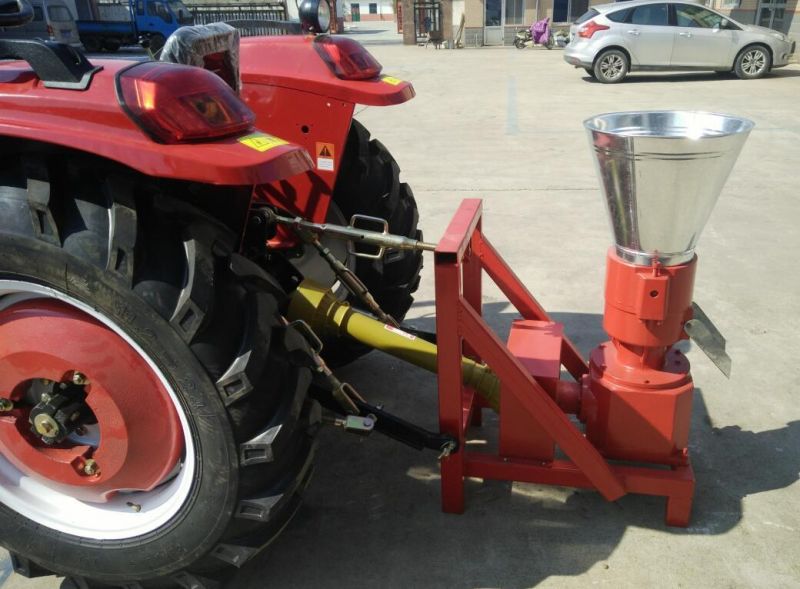

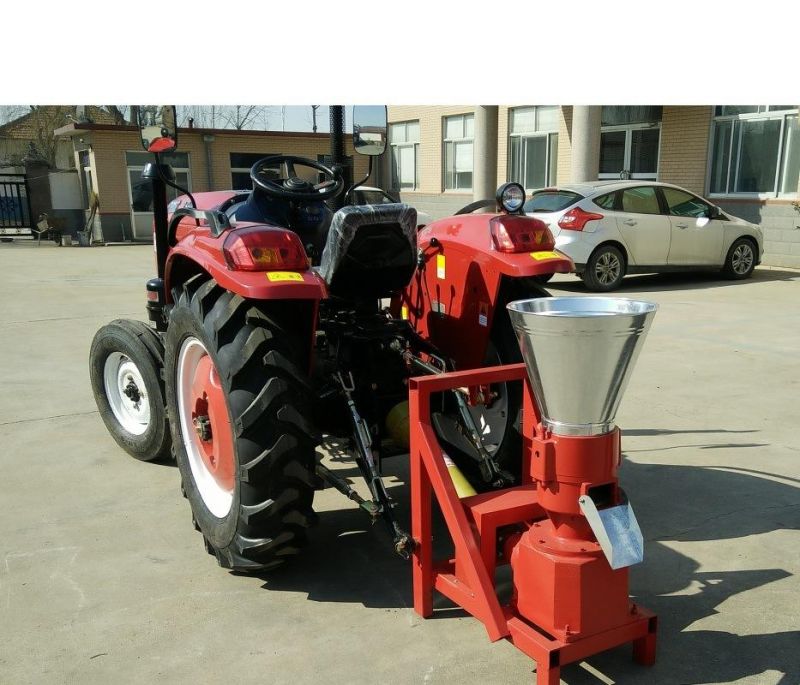

2. Easy and convenient to use. Since the machine can connected with the tractor, so it is easy to move the PTO pellet mill .
3. Low energy consumption and high efficient. Since the PTO wood pellet mill is powered by the tractor, it can work continuously and use less energy.
4. With a competitive price. Since the PTO wood pellet mill is without power engine, so the price the lower and the farmers can take advantage of their tractors to be used as the power.
5. Can customized according your requirement. We have 8 different models of PTO wood pellet mill in different size and production capacity, we can offer you PTO pellet mill according to your requirement.Wide Application of PTO Driven Wood Pellet Mill1. Since this PTO pellet mill is suitable for farmers, so the raw materials for PTO wood pellet mill are usually easy to get. Sawdust, shavings, rice husk, cotton stalk, cotton seed skins, weeds and crop stalks and other plant wastes can all be pelletized into high quality pellets by using the PTO driven wood pellet mill.                                                                                             2. The pellets made by the machine are mainly used as fuels for stove, furnace and other heating equipments. In addition, the PTO pellet mill can also make pellets for animal bedding and animal feed.

Technical Data

Model	Power	Die Diameter	Die Hole Specification	Saw Dust Capacity	Feed Capacity	Packing Size
KL120P	6-10HP	120mm	2.5-10mm	40-60kg/h	60-100kg/h	50*41*76 cm
KL150P	6-12HP	150mm	2.5-10mm	50-90kg/h	90-120kg/h	57*44*76  cm
KL200P	10-18HP	200mm	2.5-10mm	110-140kg/h	200-300kg/h	77*56*102 cm
KL230P	18-28HP	230mm	2.5-10mm	150-190kg/h	300-400kg/h	77*56*102 cm
KL260P	28-45HP	260mm	2.5-10mm	200-280kg/h	400-600kg/h	77*56*105 cm
KL300P	45-55HP	300mm	2.5-10mm	300-360kg/h	600-800kg/h	77*80*106 cm
KL360P	50-60HP	360mm	2.5-10mm	300-380kg/h	700-900kg/h	77*80*106 cm
KL400P	50-70HP	400mm	2.5-10mm	400-550kg/h	900-1100kg/h	77*80*106 cm











About our company
Laizhou Chengda Machinery Co., Ltd was founded in 1992, which is a high tech enterprise that integrates new product design, development, manufecturing and international trade business.
Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Our company always takes the product quality and credibility as the foundation of us present and tomorrow survival and development. We always adhere to the "quality and reputation first" concept.And we have got the 'quality advanced company" and "quality trustworthy company" and the "honorary company". we are AAA level enterprise to be named by the national quality, reputation and service department.
Our company is located in Laizhou Bay, near to Qingdao seaport. It's convient in sea, road, and air transportation, we have very perfect import and export service system in China. At the same tine , we have a widely range of commodity information network, partners all over the world. Believe our sincere cooperation will creat a better tomorrow.


Our Services

1. We provide 1 year guarantee. 2. We provide English manual and video for installation & operation. 3. If required, we could send technicians for installation and commissioning, training. 4. We provide feed formula and free spare parts.



FAQ

1. How to order?

After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the payment. For single set, your machine can be ready within 30-45 days after we getting the payment, we will send to the port and deliver to you by sea.

2. Related products?

PTO driven

3. How to get to your factory?

Our company is located in Sanlihezi Village, Wenfeng Road, Laizhou, Shandong province, near Qingdao, if you arrive in Qingdao Liuting Airport, we can drive to Qingdao to pick you up to our factory.

4. How long is your warranty period?

One year

5. How does your factory do quality control?

Our factory has gained CE certificate and ISO certificate. " Quality is priority" we always pay great attention on quality controling from the begining to the end.
