CNC AC Wood Router (RJ-1325)
SHANDONG RUIJIE CNC TECHNOLOGY GROUP CO., LTD.- Certification:CE
- Condition:New
- Max Engraving Speed:20000mm,Min
- Automatic:Non-Automatic
- Reposition:0.05mm,300mm
- Spindle Power:3.8kw 6kw 9kw
Base Info
- Model NO.:RJ-1325
- Transport Package:Wooden Case
- Specification:1300x2500mm
- Trademark:Ruijie
- Origin:China
- HS Code:84609090
- Production Capacity:100 Sets,Month
Description
Basic Info.
Model NO. RJ-1325 Transport Package Wooden Case Specification 1300x2500mm Trademark Ruijie Origin China HS Code 84609090 Production Capacity 100 Sets/MonthProduct Description
CNC Routers with Ball Screw Transmission RJ1325Linear ATCProduct features:
1. Welded structure by thick profiled steel, stress relief, high rigidity with gantry design, ensures good overall stability of the machine.
2. The machine is mainly assembled with precise parts, such as X, Y, Z axes 32*32 imported ball screw, Japanese YASKAWA servo motor(850W), Italy HSD water-cooling spindle(3.8 KW), all these endow the machine with fast speed, high accuracy and precision. It is a better choice for process hard wood, non-ferrous metals.
Description | Parameter |
Working Area | 1300x2500x150mm (51.1 x98.4 x5.9 inch) |
Max Moving Speed | 25000mm/min |
Max Engraving Speed | 20000mm/min |
Reposition | 0.05mm/300mm |
Spindle Power | 3.8KW 6KW 9KW |
Voltage | AC 380V/220V/50Hz/60Hz |
Control System | DSP(USB interface) |

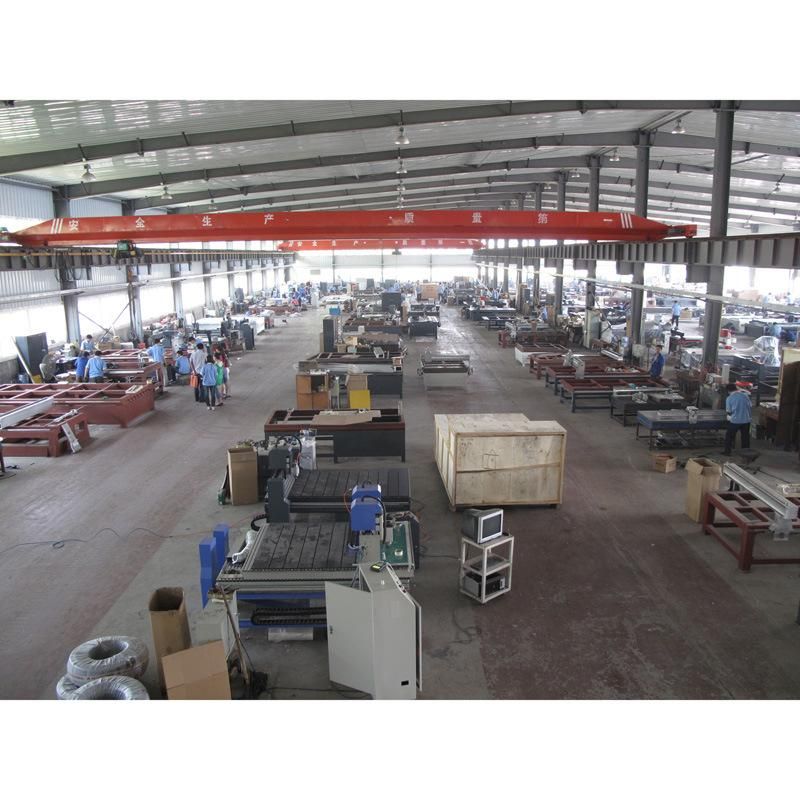

Factory Show
