• Model NO.：RJ-1318
• Production Capacity：100 Set,Month

Basic Info.

Model NO. RJ-1318 Production Capacity 100 Set/Month

Product Description

CNC Router

Equipment with 2 to 4 heads; The machine one time can complete the works done by several machines, to save cost and improve the working efficiency.
The distance between heads can be adjusted according to the working pieces being processed.
Spindle power is selected according to customer's requirements.
Rotary attachment is optional. Which enable the machine to engrave on column work pieces likeTable leg.
Especially firm structure and special design on details make the machine to achieve the best perfptmance results.
It is possible to start any one of the heads only.


Description	Parameter
X. Y. Z Working Area	1300X1800X100mm(51.2x70.9x3.9 inch)
X. Y. Z traveling Positioning Accuracy	≤ 0.1mm
X. Y Z Reposition Accuracy	≤ 0.1mm
Table Surface	PVC
Lathe Bed	Cast
X. Y Transmission	High accuracy rack gear
Z Transmission	Imported Ball screw
Max Power Consumption(Without spindle)	12KW
Max Travel Speed	30000/mm/min
Max Working Speed	20000mm/min
Spindle Power	1.5KWx3
Max Spindle Speed	24000r/min
Driver system	Step Motor
Working Voltage	380V/220V
Command language	G code
Operating System	DSP
Interface	USB
Flah Memory	128M
Collect	Φ 3.175-Φ 12.5
X. Y Resolution	≤ 0.1mm
Software	UCANCAM, Type3, ARTCAM

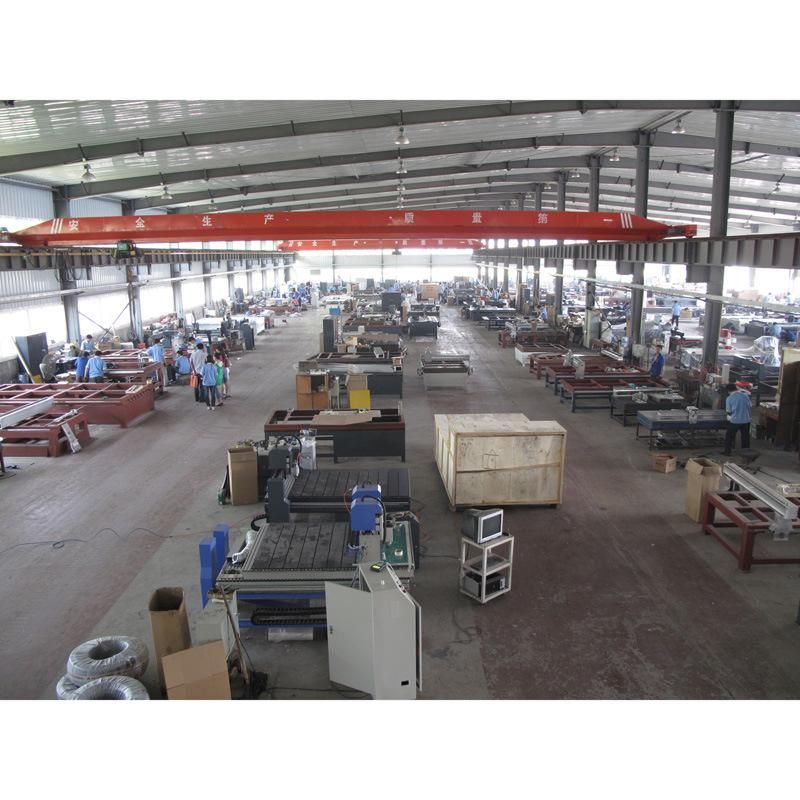

Factory Show
