Ptp3013 CNC Drilling Machining Center for Routing, Cutting, Side Milling, Sawing
Hefei Aquila CNC Equipment Co., Ltd.- Structure：Horizontal Drilling Machine
- Layout：Horizontal
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Precision：High Precision
- Certification：CE, ISO, FDA
Base Info
- Model NO.：PTP3013
- Energy Saving：Energy Saving
- Warranty：1 Year
- Customized：Customized
- Condition：New
- Spindle Power：Hsd 9.0kw Air Cooling Spindle
- Spindle Speed：24000 Rpm,Min
- Tool Magazine：Carousel
- Tool Slots：8PCS
- Vacuum Pump：7.5kw
- Transport Package：Wooden Case Package
- Specification：1300*3700*150mm
- Trademark：Mars
- Origin：China
- HS Code：84659900
- Production Capacity：300 Sets,Month
Description
OthersReducer Taiwan planetary reducer Transmission XY axis rack and pinion, Z axis ball screw Guide Rail Taiwan Hiwin linear rail Tools change Carousel type tools magazine, 8pcs Drilling Head 9 vertical+6 horizontal+1 sawing unit Vacuum Pump 7.5KW Resolution ±0.02mm Re-positioning Accuracy ±0.05mm Max. Traveling Speed 80m/min Max.Working Speed 20m/min Dictate Format G-Code / HPGL Working Voltage AC380V/ 3PH/ 50HZ Support Software Professional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense) Net Weight 3000KG
Accessories:
Performance Features:Performance Feature1 Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver 2 Carousel type tool magazines support automatic tool changer, improve processing efficiency 3 Italy HSD 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics 4 Taiwan-made guide rail and ball screw, high precision, long service life, good stability 5 Taiwan planetary reducer, small volume, withstand large torque, high transmission efficiency, wide range of deceleration 6 Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area 7 Syntec CNC control system can automatically accomplish multi-layer 3D job. Easy to operate, fully support automatic production

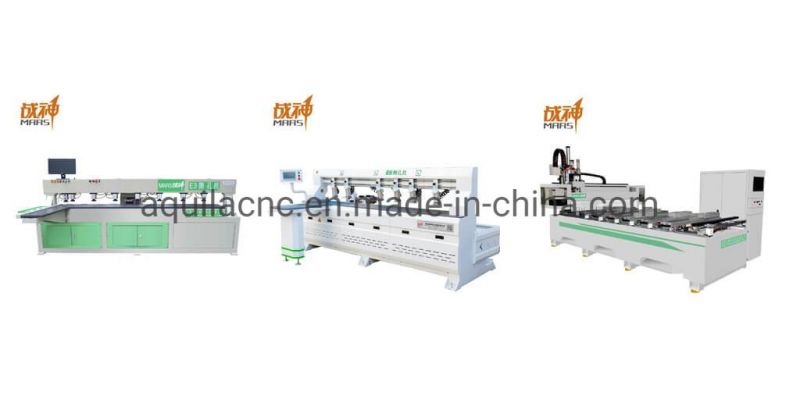

Similar Products
