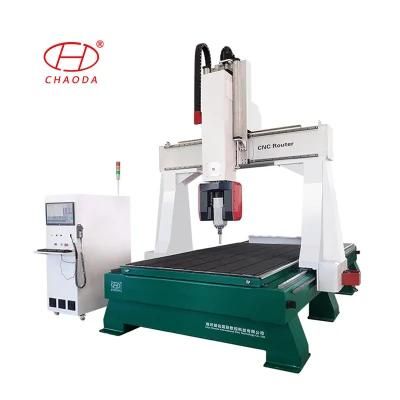

• Model NO.：JCF1530L ATC
• Flat Working Size：1500mm X 3000mm X 500mm
• Table：Removable Flat Table
• Rotating Spindle：0-180 Degree
• Spindle：9kw Air Cooling Atc Spindle
• Motor and Driver：Japan Yaskawa Servo Motor and Driver
• Control System：4 Axis Ncstuidio (Weihong) with Screen
• Transport Package：Wrapped with Protection Film,Fasten by Metal Wires
• Specification：4300*2700*2400mm
• Trademark：CHAODA
• Origin：China

Model No.JCF1530L ATCFlat working size1500*3000*500mm*180 degreeRotary working size1000mm diameter, 2500mm lengthLathe bed structureT-extrusion, Thick Steel frameTable Removable, T-slot with clampsX structure  Rack and pinion, linear square railY structureRack and pinion, linear square railZ structure Ball screw, linear square railReposition accuracy±0.02mmMax. travelling speed 0-60000mm/minMax. working speed0-30000mm/minSpindle9kw air cooling ATC spindleTool magazine Linear type auto tool changer, 8 tools abilityDriving systemJapan YASKAWA servo motor and driverOperating system4 axis Ncstudio with ScreenOperation languageG codeWorking voltageAC380V, 3-phase, 50HzWorking materialsEps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc.








1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
