Horizontal Type Rotating Blade Band Saw Machine Horizontal Band Resaw
Shandong STX Machinery Trade Co., Ltd.- Type：Band Saw
- Power Type：Electric
- Layout：Horizontal
- Automatic Grade：Automatic
- Precision：High Precision
- Certification：CE
Base Info
- Model NO.：MJ3971A x 400
- Customized：Customized
- Condition：New
- Color：Customized
- Max.Working Width：400mm
- Application：Wood Timber Resaw
- Saw Wheel Motor：18.5kw
- Width of Conveyer Belt：385mm
- Transport Package：Standard
- Trademark：STX
- Origin：China
- HS Code：846591
- Production Capacity：2000 Sets,Year
Description
Max. working size (Saw blade to 150mm)
400×300mm
Distance from saw blade to worktable
3~200mm
Width of conveyer belt
385mm
Diameter of saw wheel
711mm
Feed speed
0~18 m/min
Saw wheel elevation motor
0.18kw
Saw wheel motor
18.5kw
Hydraulic pressure
55kg/sqcm
Dust outlet diameter
102mm×2
Size of saw blade (L×W×H)
4572×27×0.9mm
4572×41×1.27mm
Saw kerf
1.2~2.2mm
Orerall dimensions(L×W×H)
3000×1950×1850mm
Net weight
1800kg
Detailed images

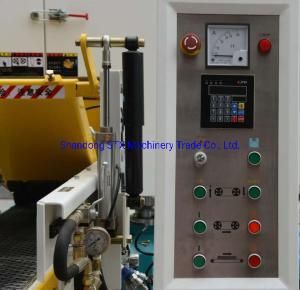

Digital display thickness setting:Use the numeric keyboard keys to set the plate thickness, the operation is fast and convenient,and the positioning is accurate.
Introduction of quality accessories:
1.Front pressing:The design of the inclined pressing plate facilitates continuous feeding of materials of different heights.The aluminum wheel is light and easy to feed and lift the pressure plate.The glue layer prevents slippage of the material and adjusts slightly when the height of the wood is different. The air cylinder adjusts the air pressure according to the thickness cf the material,presses the wood
to prevent it from drifting,and ensures accurate
sawing.
screw,the lifting height can be set freely within
200MM, which is convenient for adjusting the
thickness of the plate and positioning accurately.
sawing,when the saw blade is hot, it will automatically increase the pressure. Ensure the saw blade is stable,not easy to break or deviate.
0-18m/min: 1. Imported valve from the United States:Control the flow of hydraulic oil,the output is smooth and stable, and it does not appear to be fast or slow or continuous heating. Ensure the feeding is stable without jitter,the sawing board is smooth without chattering,the speed range is wide,and the speed can be adjusted according to woods.(Other brands use motor drive to feed,the speed adjustment range is small,and the motor is easily damaged when the adjustment range is exceeded)
Chinese-Italian hydraulic motor:Specially imported technology from Italy, which drives the power of the feeding belt. The oil flow djustment range is large. When the hydraulic motor is switched between high and low speeds,the power and speed are stable.
Hydraulic feeding device:the hydraulic motor drives the feeding wheel to drive a single-slot belt feeding. The curved surface feeding wheel prevents the feeding belt from swinging and deviating,the feeding is stable,and the sawing plate is smooth and accurate.
Therefore,the sawing is accurate and wear-resistant.
