• Model NO.：RMJ1500-3A
• Customized：Customized
• Condition：New
• Color：Customized
• Spindle Number：Three or Six
• Transport Package：Soft Package
• Specification：2700*2300*2200mm
• Trademark：SAMACH
• Origin：China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. RMJ1500-3A Customized Customized Condition New Color Customized Spindle Number Three or Six Transport Package Soft Package Specification 2700*2300*2200mm Trademark SAMACH Origin China Production Capacity 300 Sets/Month

Product Description

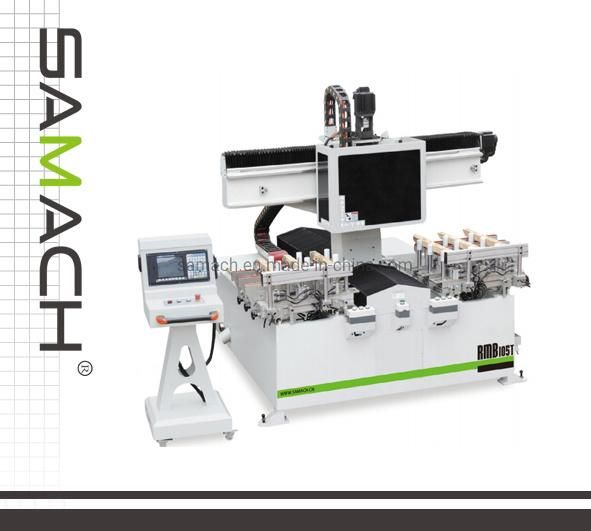

Woodworking Machine Three-axis Six Axis CNC Tenon Mortising Machinery



Machine performance characteristics:

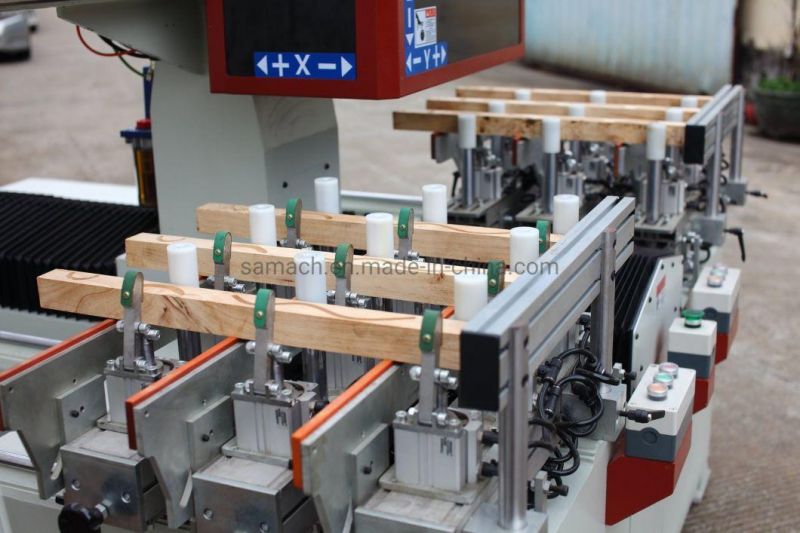

 1. RMJ1500-3A adopts 3-axis RMJ1500-3B adopts 6-axis multi-sation high-speed continuous cutting. While a group of workpieces are being processed, other workpieces can be loaded and unloaded, and non-stop production. Machining tenon grooves(holes) per day( 8 hours) more than 20, 000.
2. Using advanced CNC system, man-machine dialogue interface, easy to learn, ordinary workers only need to train for 2-3 hours to operate, using the tool bar for tool setting, no programming, point-to-point can automatically generate machining program, adjust A job takes only about ten minutes.

3.It is suitable for processing workpieces with different shapes and different specifications of gutters(holes). It is highly practical, especially for multi-grooves, with small groove spacing, gutter combination, same workpiece gutter length and depth are different and complex. The machining of profiled workpieces has significant advantages.

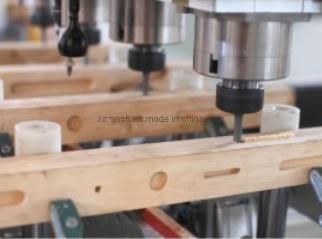

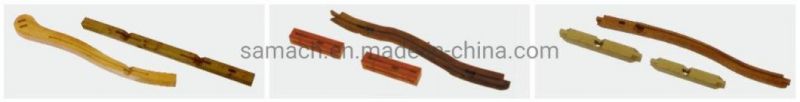

Tenon processing :



Machine configuration:

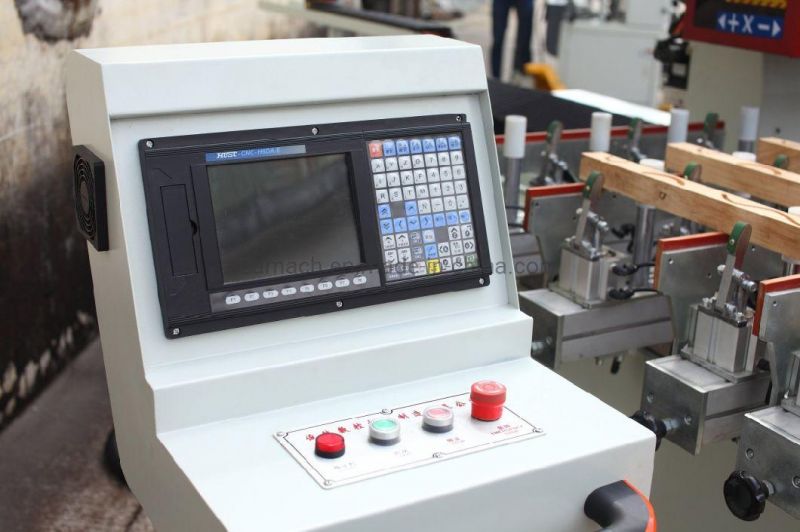

1. Intelligent industrial computer control.



2. Simultaneous efficient processing of multiple sets of workpieces.



3. Cutting and drilling can be processed simultaneously.

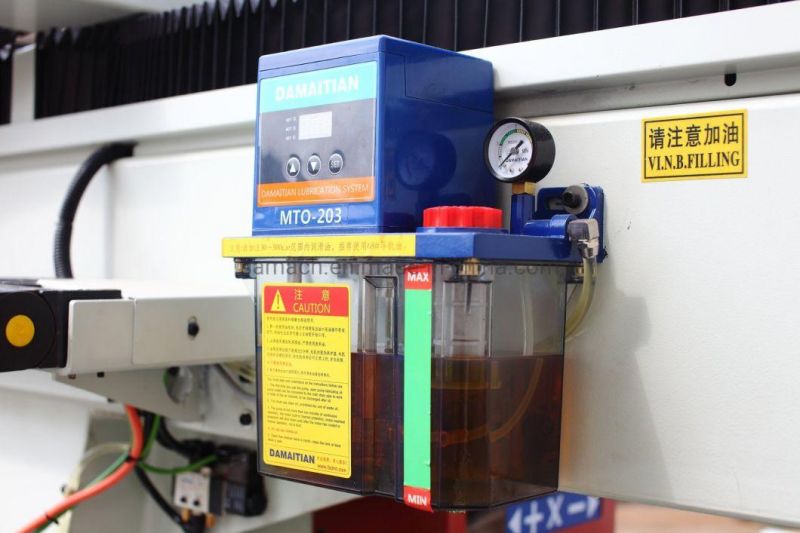

4. Automatic oil filling system.





Parameter


Model	RMJ1500-3A	RMJ1500-3B
Processing range	1500*140*200mm	1500*140*200mm
Spindle power	2.2kw/3.7kw*3 pc	2.2kw/3.7kw*6 pc
Spindle speed	18000r/min (VFD)	18000r/min (VFD)
Equipment power	11kw/16kw	11kw/16kw
Processing speed	1-15M/min	1-15M/min
Return speed	50M/min	50M/min
Cnc system	Taiwan Yitu	Taiwan Yitu
Installation size	2700*2300*2200mm	2700*2300*2200mm
Weight	2.1T	2.3T

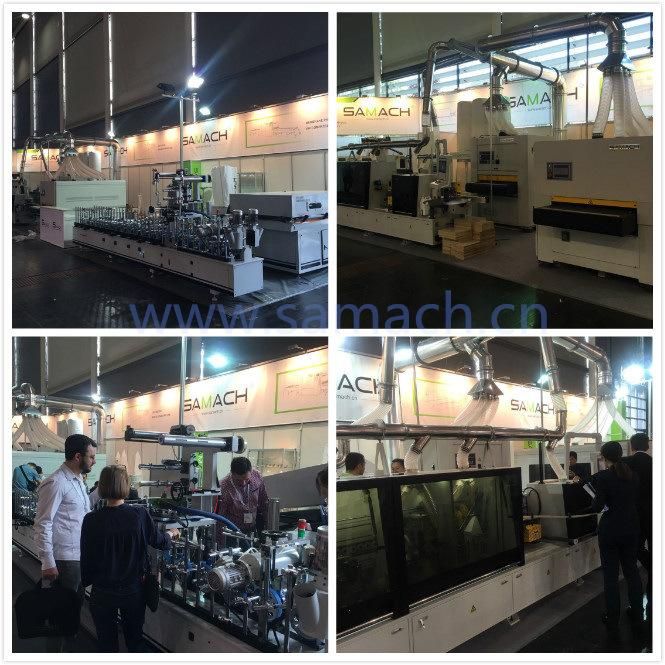

Exhibition

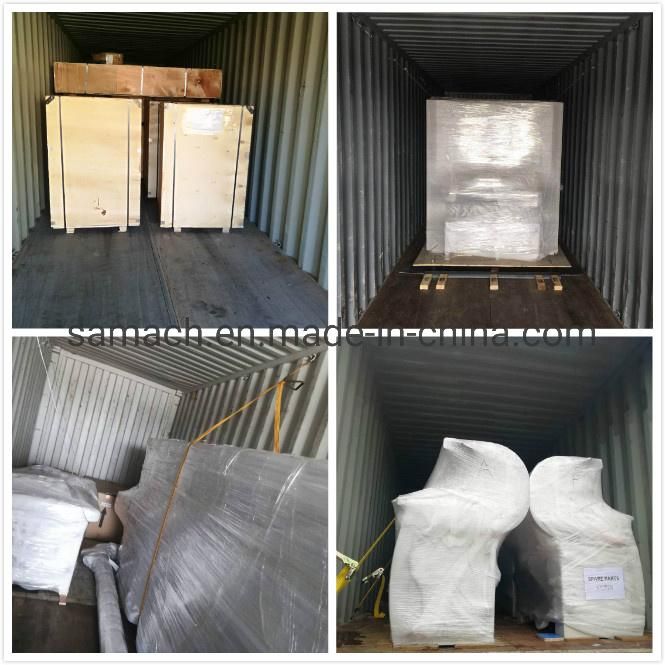

Packing and transportation

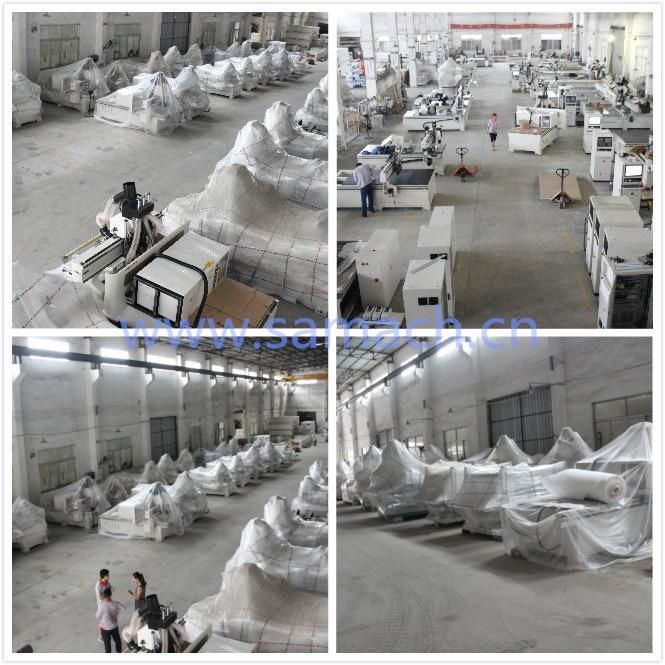

Factory



Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after services.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
