Horizontal Wood Drilling Machine / Automatic Wood Boring Machine

Zhengzhou Honest Machinery Co., Ltd.
  • Structure：Horizontal Drilling Machine
  • Layout：Horizontal
  • Controlling Mode：Artificial
  • Automatic Grade：Automatic
  • Precision：High Precision
  • Certification：CE, ISO, TUV Co

Base Info

  • Model NO.：HT-MZ73212
  • Energy Saving：Energy Saving
  • Warranty：2 Years
  • Customized：Customized
  • Condition：New
  • Max Drilling Diameter：35mm
  • Max Drilling Depth：60mm
  • Vertical Machining Holes Distance：285-1220mm
  • Number of Auger Shaft：21 Axis *2 Row
  • Rotate Speed：2840r,Min
  • Power：1.5kw*2
  • to Adapt to The Pressure：0.6-0.8MPa
  • Transport Package：Umigation-Free Wooden Case
  • Specification：2400*1080*1400mm
  • Trademark：Honest
  • Origin：China
  • Production Capacity：300 Pieces, Month

Description

Basic Info.

Model NO. HT-MZ73212 Energy Saving Energy Saving Warranty 2 Years Customized Customized Condition New Max Drilling Diameter 35mm Max Drilling Depth 60mm Vertical Machining Holes Distance 285-1220mm Number of Auger Shaft 21 Axis *2 Row Rotate Speed 2840r/Min Power 1.5kw*2 to Adapt to The Pressure 0.6-0.8MPa Transport Package Umigation-Free Wooden Case Specification 2400*1080*1400mm Trademark Honest Origin China Production Capacity 300 Pieces/ Month

Product Description

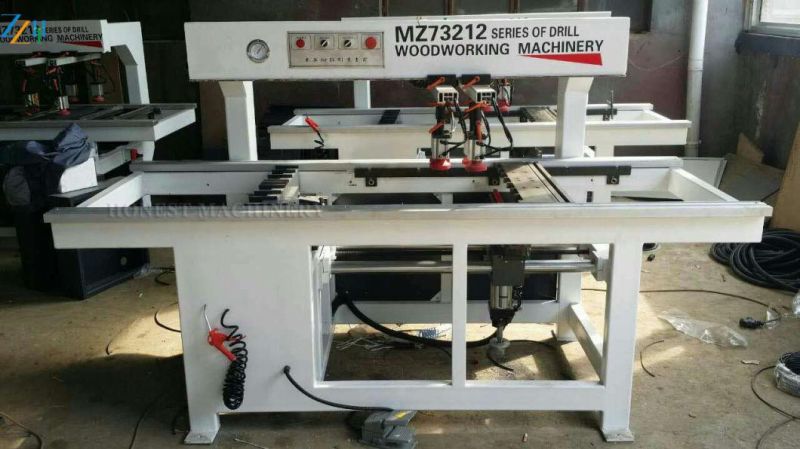

                Horizontal Wood Drilling Machine / Automatic Wood Boring Machine
1.Machine introduction of Horizontal Wood Drilling Machine / Automatic Wood Boring Machine
Main features:
1, drilling and drilling a large range, all bits using quick joints, convenient and quick;
2, the depth of drilling, drilling distance are used photoelectric switch, positioning fast, accurate;
3, the use of imported drill row, motor, durable;
4, machine parts, the use of high quality steel, high heat treatment will never deformation;
5, equipped with digital size calculator, improve work efficiency.
Horizontal Wood Drilling Machine / Automatic Wood Boring Machine

2.Technical parameters of Horizontal Wood Drilling Machine / Automatic Wood Boring Machine
 Type  HT-MZ73212
Max drilling diameter35mm
Max Drilling depth60mm
Vertical machining holes distance285-1220mm
Number of auger shaft21 axis *2 row
rotate speed2840r/min
Power1.5kw*2
Voltage380V 50HZ(three-phase)
To adapt to the pressure0.6-0.8MPa
Dimension2400*1080*1400mm
Horizontal Wood Drilling Machine / Automatic Wood Boring Machine

3.Contact information of Horizontal Wood Drilling Machine / Automatic Wood Boring Machine
If you need further information, please contact us freely, we will do our best to cooperate with you.
