• Model NO.：ELE1325
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：220V, 1 Phase, 50,60Hz
• Power(W)：3kw
• Dimension(L*W*H)：3700*2140*1850mm
• X,Y,Z Working Area：1300X2500X200mm
• Control System：DSP 4 Axis
• Spindle Power：4.5kw Hsd Spindle
• Inverter：Taiwan Delta 5.5kw Inverter
• Drive Motor：Japan Yakaswa Servo Motors
• Spindle Speed：0-18000rpm
• Frame：Welded Structure
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELE1325 Customized Customized Condition New Color Customized Voltage 220V, 1 Phase, 50/60Hz Power(W) 3kw Dimension(L*W*H) 3700*2140*1850mm X,Y,Z Working Area 1300X2500X200mm Control System DSP 4 Axis Spindle Power 4.5kw Hsd Spindle Inverter Taiwan Delta 5.5kw Inverter Drive Motor Japan Yakaswa Servo Motors Spindle Speed 0-18000rpm Frame Welded Structure Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

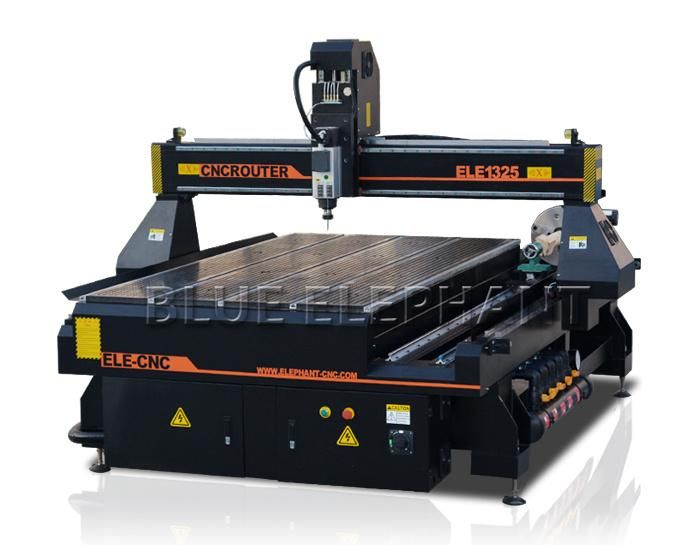

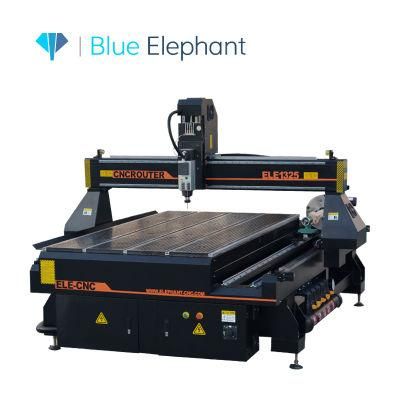

Jinan Blue Elephant 4x8 cnc router 1325 4 axis with rotary device for round materials

Features:

1).4.5kw HSD air cooling spindle from Italy

2).5.5kw DELTA inverter from Taiwan

3).Original DSP 4 AXIS control system

4).Japan YASKAWA servo motor

5).vacuum pump

6).Vacuum and T-slot working table

7).with rotary device

Parameter of cnc router pantograph

Number	Description	Parameter
1	X,Y,Z Working Area	1300x2500x300mm
2	Table Size	1480×3050mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	Vacuum and T-slot working table
6	Frame	10-15mm Welded steel Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle)  3.2Kw
10	Max. Rapid Travel Rate	37000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Power	6kw Italy HSD air cooling spindle
13	Spindle Speed	0-18000RPM
14	Drive Motors	Japan Panasonic servo
15	Working Voltage	380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH)
16	Command Language	G Code
17	Operating System	Mach3 4axis control System
18	Computer Interface	USB
19	Rotary device	300mm diameter*2200mm length
20	Collet	ER32
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
23	Running Environment  Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%

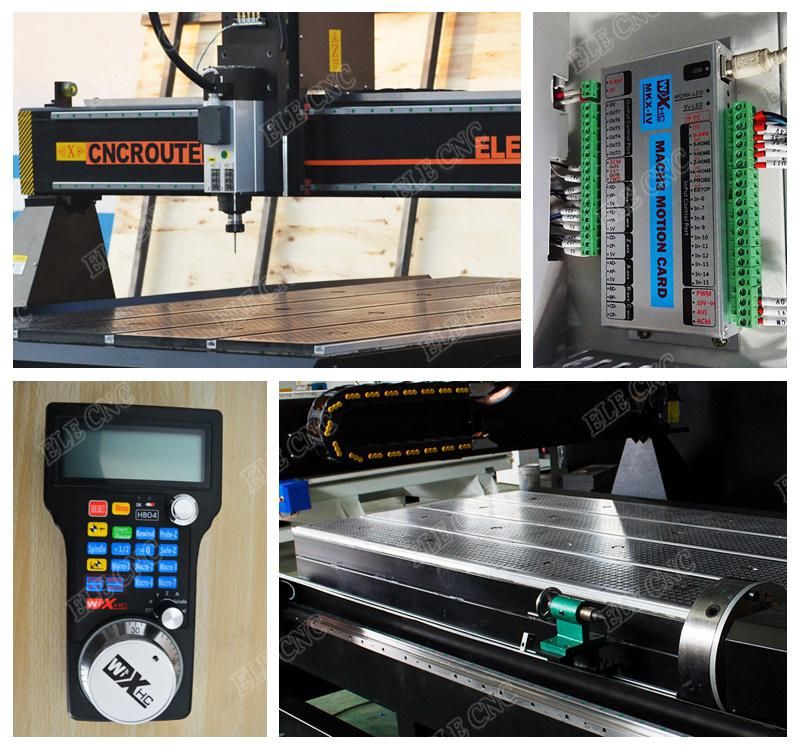

Details


Application

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

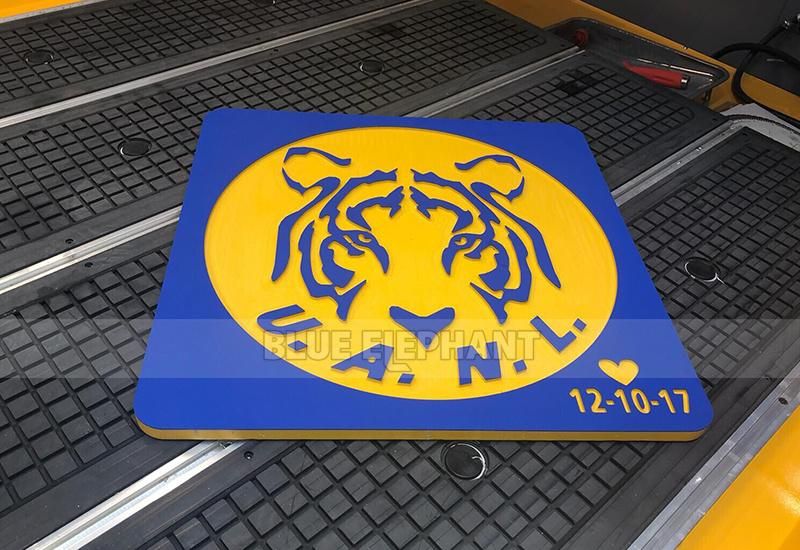

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.

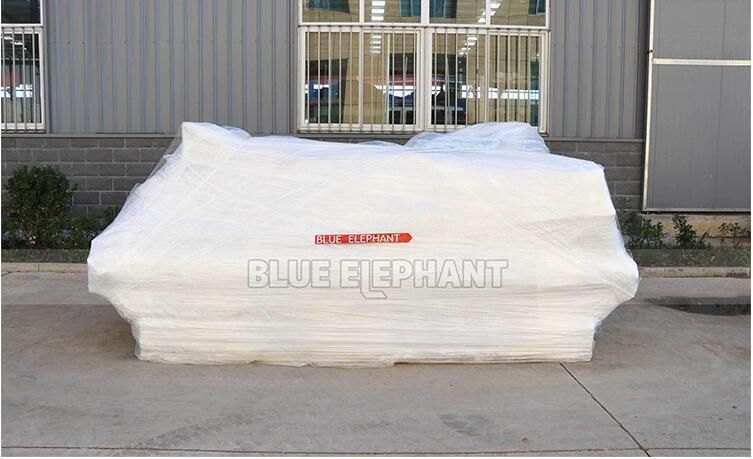

Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.


Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Our factory



Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
