• Model NO.：ZDV8D
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Iron Grey
• Transport Package：Plywood Case
• Specification：3250*3150*900mm
• Trademark：ZD
• Origin：China
• HS Code：84659100
• Production Capacity：500 Set,Month

ModelZDV8DDimension of sliding table3200*375mmGross cut capacity3200mmWidth of cut between saw blade and rip fence1250mmTilting saw group0-45°Diameter of main saw blade300mmMax. cutting height (90°)80mmSpeed of main saw spindle4000/6000r.p.mMain saw motor power5.5kwMain spindle diameter30mmDiameter of scoring saw blade120mmSpeed of scoring saw spindle8000 r.p.mScoring saw motor power1.1kwScoring saw spindle diameter20mmLifting of saw bladeElectrical liftingWeight750kgOverall dimension3250*3150*900mm



Components:

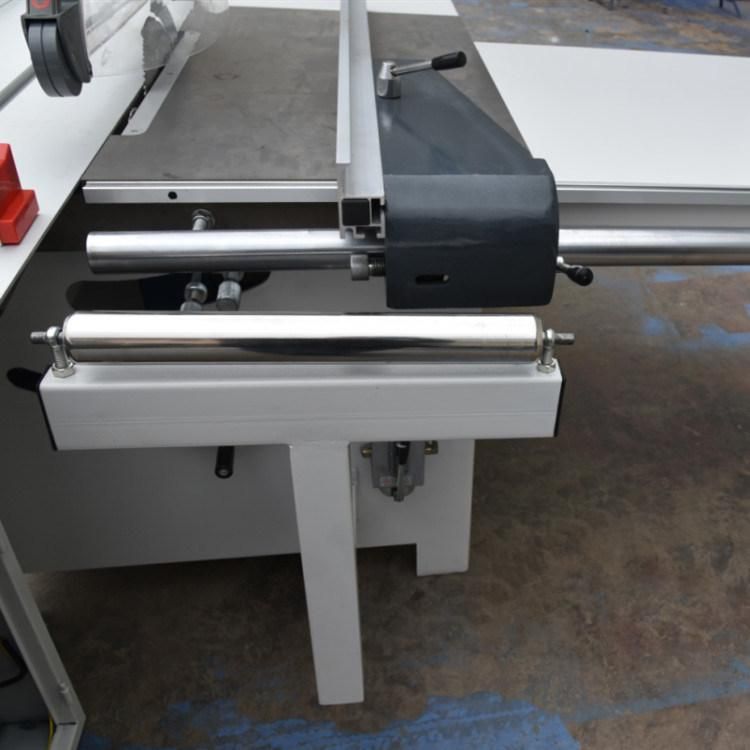

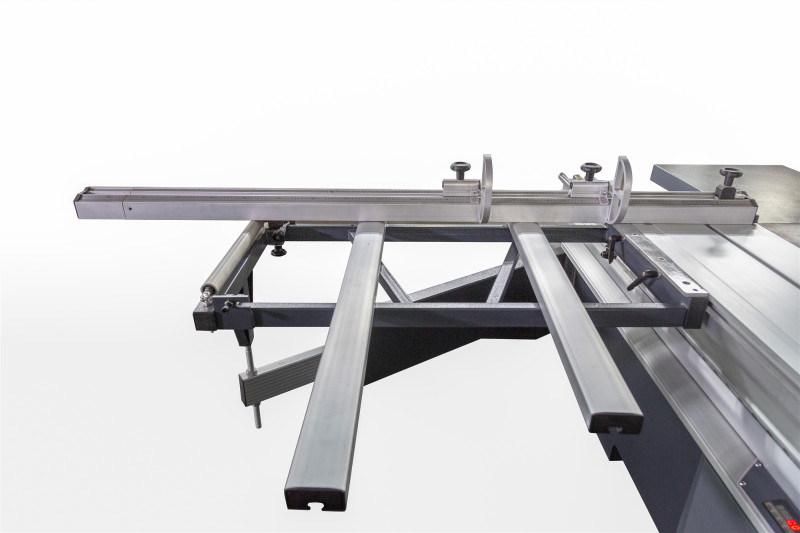

roller guide -- Euro-Seating (at your option)

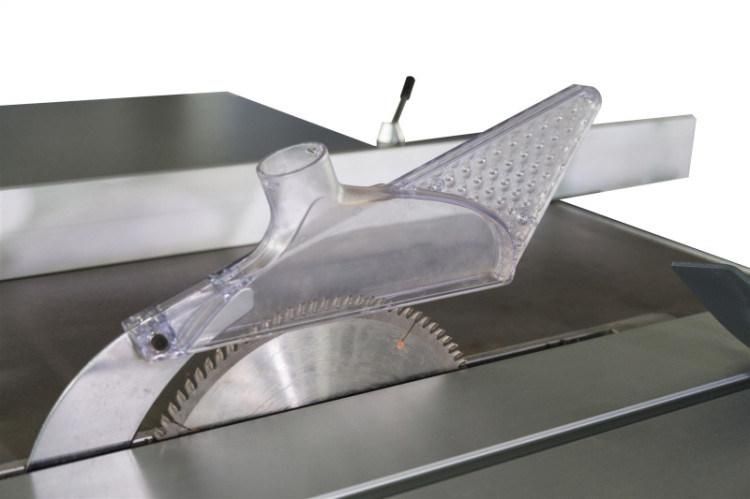

Dust hood with high arresting efficiency, remove dust and protect the environment. Equipped with small one, but big one is Optional.

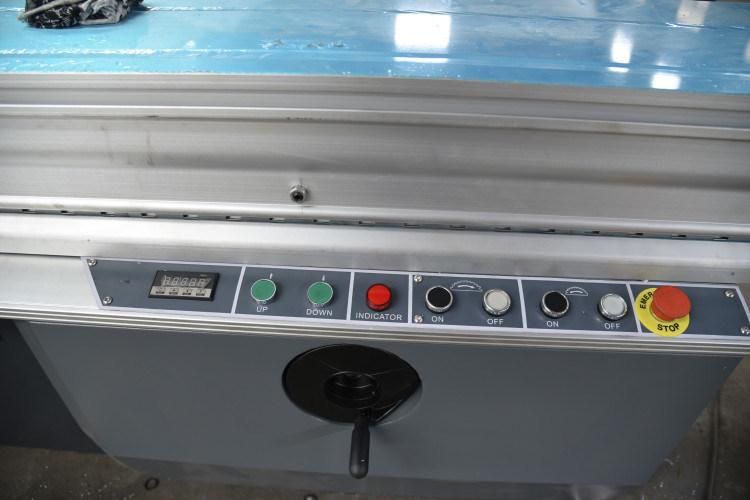

Buttons -- controlling the whole machine





Main table--made of cast iron, firm, abrasion proof and uneasy deformation



Auxiliary table --made of cast iron

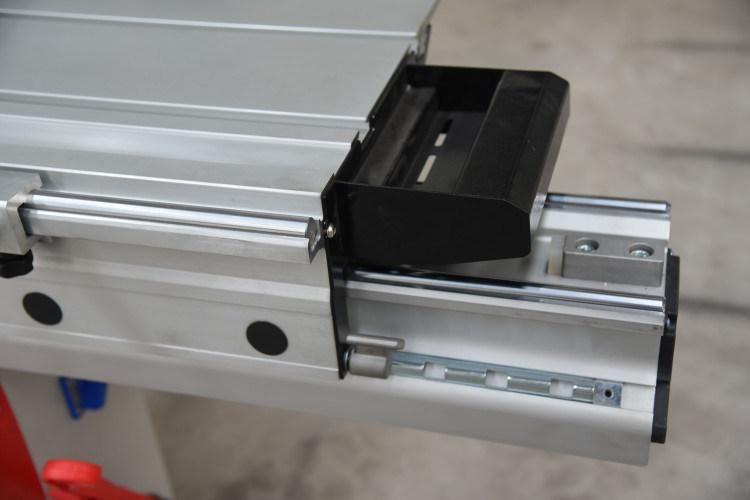

Sliding table-made of high-strength extruded aluminum alloy , light and uneasy distortion. Double layer sliding table.

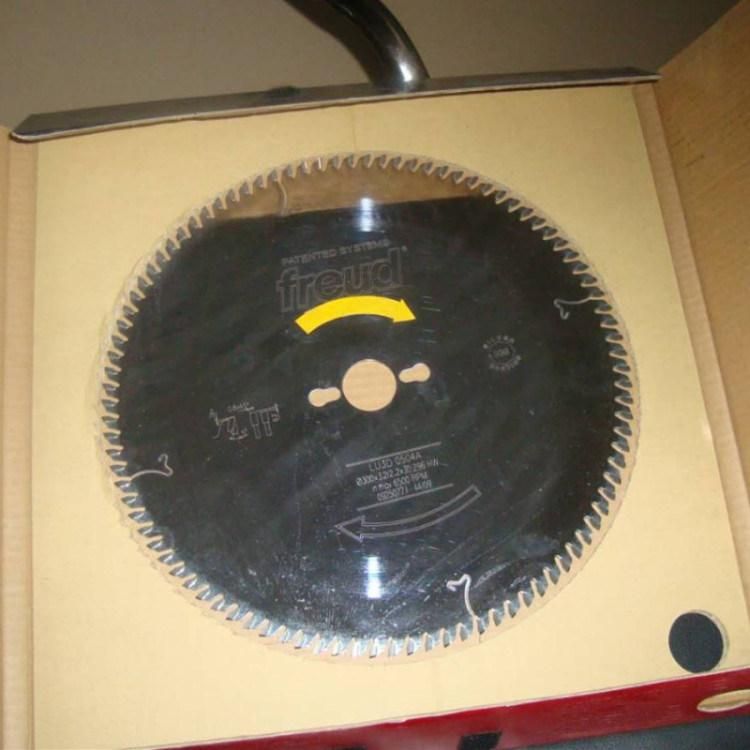

Main saw blade--made of duralumin







Main ruler--made of aluminum,ensure the cutting precision, strength saving

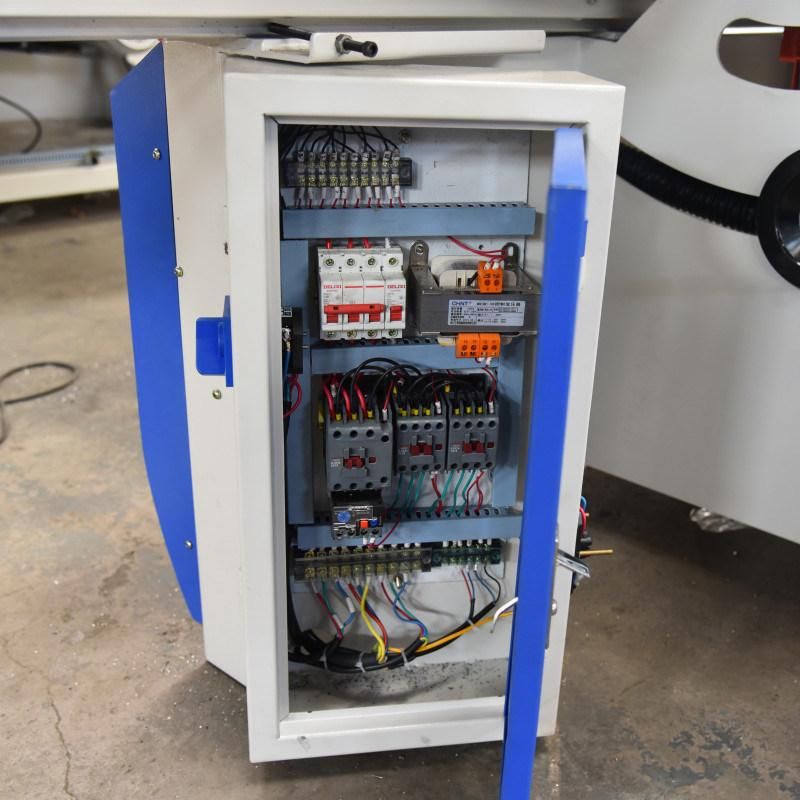

Indepent electric box:






Packaging:

About our company



For more details, pls feel free to contact us.
