CNC Wood Working Router Center Machine (Rj-1325)
SHANDONG RUIJIE CNC TECHNOLOGY GROUP CO., LTD.- Type:Wooden Mold Router
- Spindle Layout:Horizontal
- Spindle Number:According to The Customer Request
- Feed Mode:Manual
- Controlling Mode:CNC
- Certification:CE, ISO, FDA
Base Info
- Model NO.:RJ-1325
- Customized:Customized
- Condition:New
- Color:Optioanl
- Transport Package:Wooden Case
- Specification:1300x2500mm
- Trademark:Ruijie
- Origin:China
- HS Code:8456100090
- Production Capacity:100 Set,Month
Description
Basic Info.
Model NO. RJ-1325 Customized Customized Condition New Color Optioanl Transport Package Wooden Case Specification 1300x2500mm Trademark Ruijie Origin China HS Code 8456100090 Production Capacity 100 Set/MonthProduct Description
Table-moving CNC Woodworking Center Machine RJ1325Application
The machine is suitable for door and cabinets processing. Also it can be used for the flat engraving, cutting and 3D relief carving of wood and MDF.
Features
1. Equipped with a fixed grantry and movable working stable, improves the stability and antivibration capability of the machine.
2. Welded structure by thick profiled steel, stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
3. The installation of vertical and horizontal drill and saw which can rotary 90' makes the machine a complete woodworking center in doors making. Confirguring of imported Carrousel tool magazine makes the process of tools changing rapid and accurate.
4. The special tool sensor enables the machine compensate the tolerance of the tool length accurataly.
5. Japan YASKAWA servo motor, high precision helicalrack, ensures the machine run stably with low noise, fast speed, and high positioning accuracy.
6. The vaccum stable adopts double cavity type adsorption. The use of high strength Bakelite board milled in one time ensures high adsorption power.
7. Strong Dust Collection systerm keeps the machine away from dust blowing when working.
8. Auto lubrication system, one touch can finish the periodic maintenance.
9. Optional Germany imported horizontal transform head, realized side processing. L", "sans-serif"; Mso-fareast-font-family:; Color: Black'>
6. Bakelite vacuum table. High density, hard adsorption, and no deformation.
7. Perfect software compatibility: Compatible with many kind of design software, such as TYPE3/Castmate/Artcam/Ucancam/JD Paint etc.
Working travel | X axis 1300 mm Y axis 2500 mm Z axis 230 mm |
Table size | 1300 mm*2500 mm |
Maximum speed | X Y axes 60m/min |
Spindle | Voltage: AC380v Frequency: 400Hz |
Italy HSD | Speed: 24000r/min Power: 8kw |
Pressure | Air-blow pressure 0.4 MPa Tool hold Pressure 0.7 MPa |
Pressure protection | No less than 0.7 |
Dust collecting power | 3.0kw |
Vacuum power | 5.0kw (phenol aldehyde laminated cloth board) |
Total power | 23.0kw |
Mechanism size | Area: 1.8m*3.3m Height: 1.5m Weight: 850kg |
Japanese servo motor | Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min. |
Tool storage | 8 tools |
Diameter of cutter head | 3.175mm, 6mm, 12.7mm. |
Cubage | 18.0 CBM |

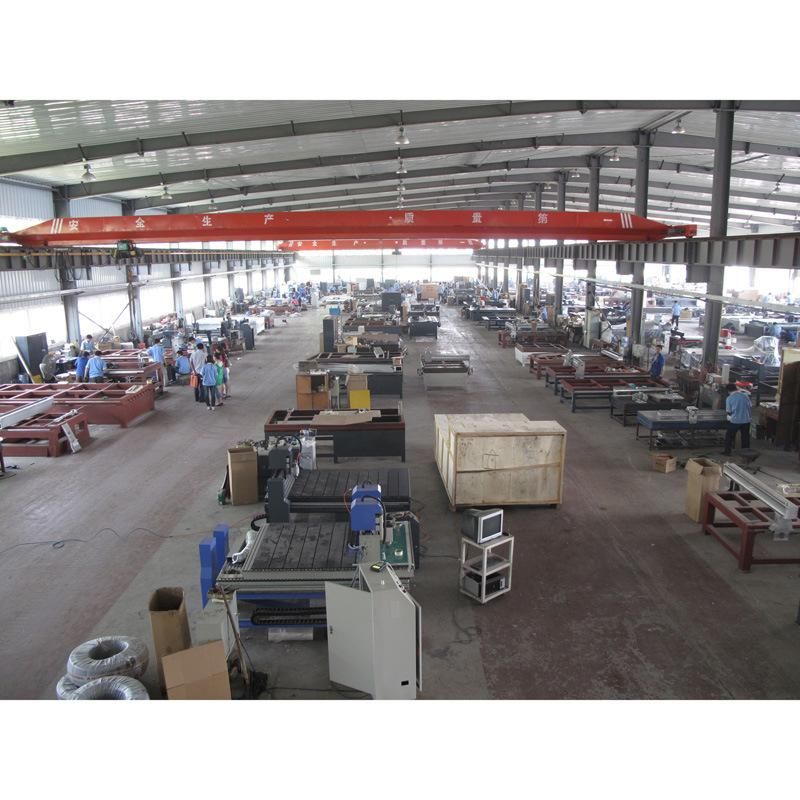

Factory Show
