• Model NO.：GD-1325
• Weight(Kg)：1000
• Control System Brand：Nc Studio,DSP
• Application：Wood Acrylic PVC Engraving Cutting
• Transmission：Taiwan Hiwin 20mm Guide Rails
• Color：Customer Needing
• Transport Package：Wooden Box
• Specification：1300*2500*200mm
• Trademark：Guandiao
• Origin：China Jinan
• HS Code：8465990000
• Production Capacity：50000pieces,Years

Basic Info.

Model NO. GD-1325 Weight(Kg) 1000 Control System Brand Nc Studio/DSP Application Wood Acrylic PVC Engraving Cutting Transmission Taiwan Hiwin 20mm Guide Rails Color Customer Needing Transport Package Wooden Box Specification 1300*2500*200mm Trademark Guandiao Origin China Jinan HS Code 8465990000 Production Capacity 50000pieces/Years

Product Description

NICE TO MEET YOU !!!
My friend, i am waitting for you in this website so long time.

Our factory produce Various woodworking machines and other woodworking machinery ,Can also be customized according to your own requirements,Our price is also very advantageous.so that you can save lots of time and cost .

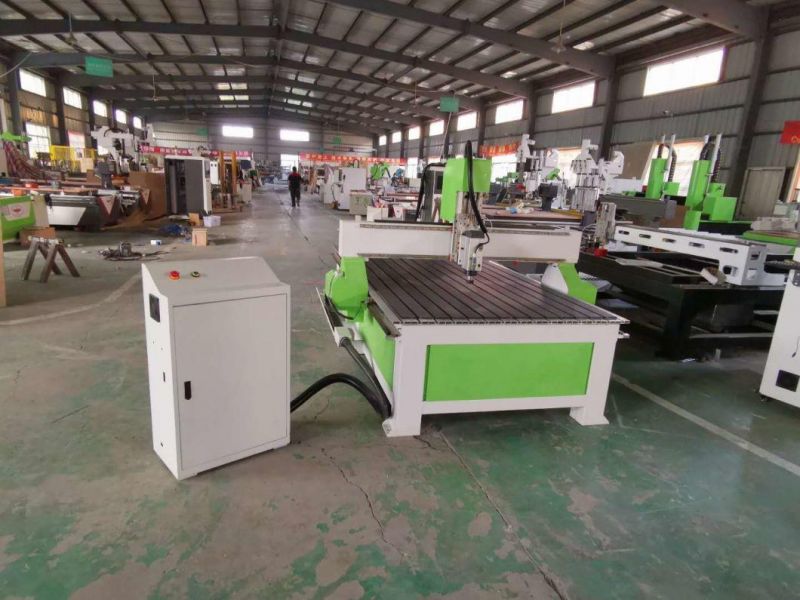

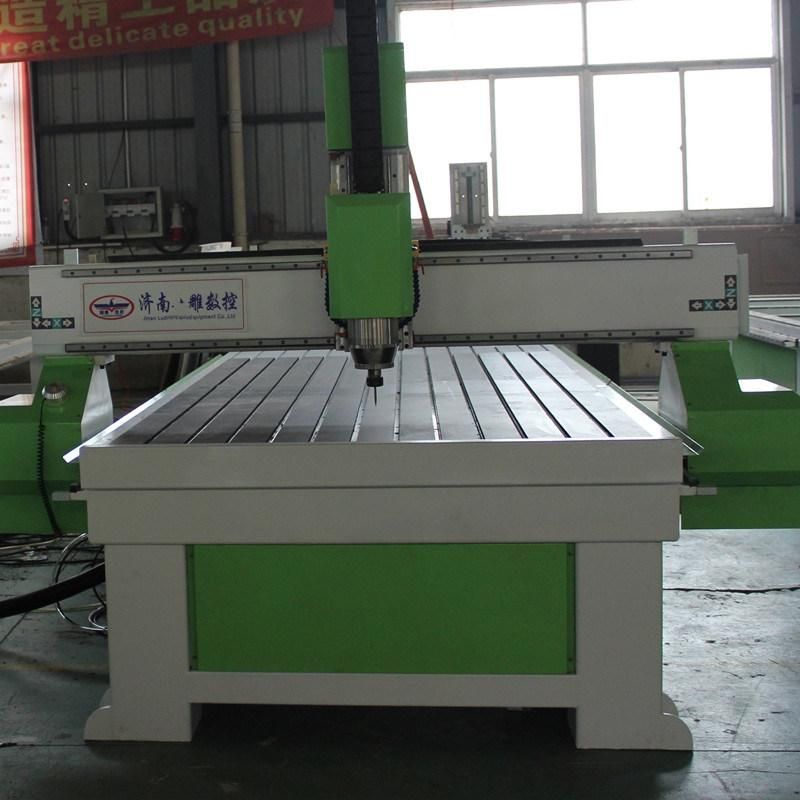

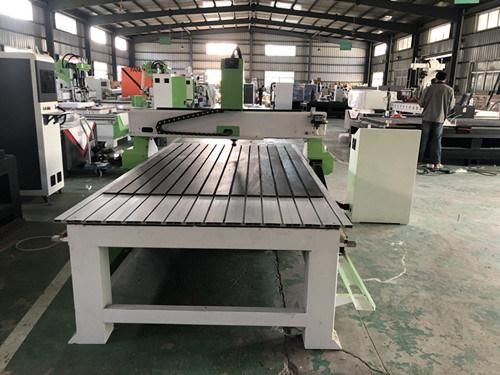

This is 1325 CNC router machine.

PS: All the working area and specifications can be customized according to your requests.

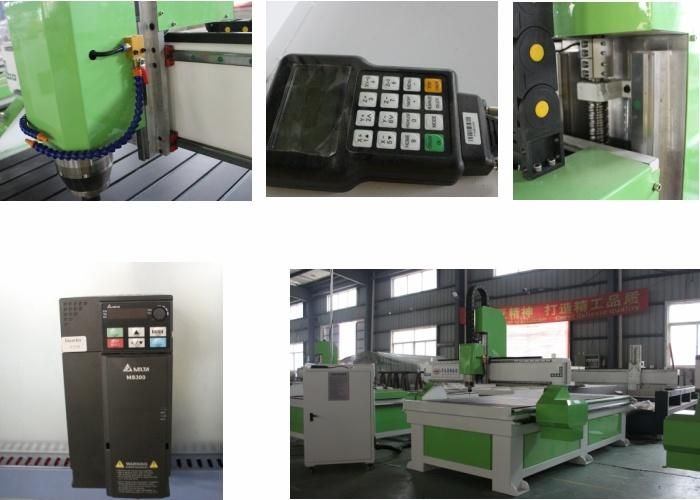

Features:

1. Simple operation and installation, when delivery we will provide the videos for training.

2. More steady and strong equipped bed structure with thick steel.

3. Equipped with air cooling spindle, can be optional water cooling spindle, more powerful, enough to cut more thickness materials.

4.The manual oiling lubricating system, just pushing the handle then can realize the whole machine oiling, very convenient.

5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.

6. Ncstudio control system, can be optional DSP control system.

7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.

8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors.

9.Function of re-carving after break point and power off, reducing the materials wasting.

10.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.


Model	GD-1325
Working Area	1300*2500*200 mm
Spindle	3.2 kw,/4.5kw 24000 rpm, Air cooling(Optional)
Table	Vacuum Suction
Transmission	Rack and pinion for x.y, ball screw for z
Guideway	HIWIN square linear guideway
Resolution	0.01 mm
Traveling speed	35m/min
Working Speed	30 m/min
Driver	China stepping motors and leadshin driver
Code	G Code, HPGL Code
Power Supply	AC380V/50Hz
Control System	NC Studio / DSP(optional)
Software	JD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc
Software Environment	Windows98/2000/XP
Relative humidity	30%-75%
Running Environment Temperature	0-45ºC
Packing	Wooden Box
Weight	Net weight:800 kg        Gross Weight:1000 kg
Packing size	3.2*2*1.7m

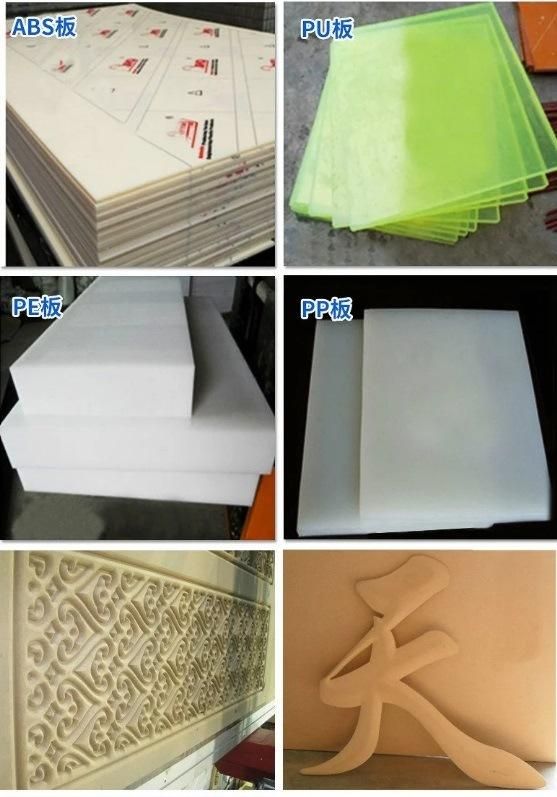

Applicable Materials	wood, PVC, acrylic, MDF, Plexiglass, and aluminum, copper,  aluminum composite panel, etc.
Stand accsssories	5.5Kw air pump, USB line,  Tool box(Spanner,brush, etc). cutting tools.  Dust collector.  Manual

 Optional Parts

1. Oil/Water Mist Cooling Sprayer

It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.

2. Spindle cover and Dust collector

They are designed for human operation protection and promise clean table surface, save maintenance time for you.

3. Pump

We can provide vacuum pump or water circulation pump for your choice.

4. Rotary Device

It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.

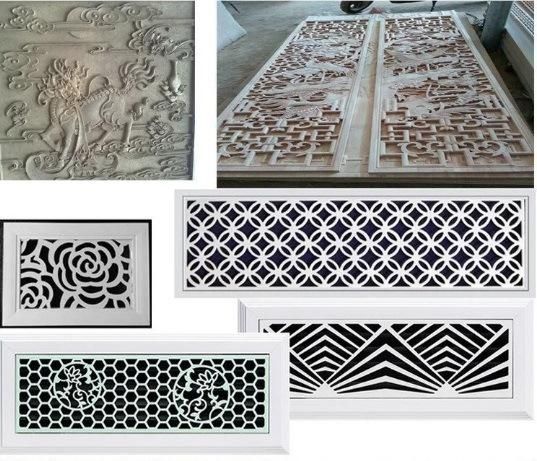

Sample







Our Services

1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost.  Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service
5.We accept the ODM,OEM
