• Model NO.：ELECNC- 2240
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC380V, 50Hz, 3pH (Option: 220V)
• Working Area：2200*4000*200mm
• Spindle：China Brand Changsheng Water Cooling Spindle
• Motor：FL118 Stepper Motor
• Driver：Yako 2608 Driver
• Inverter：5.5kw Fuling Inverter
• Table Surface：T-Slot and Vacuum Working Table
• Rail：Sweden Abba #20 Linear Square Rail
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELECNC- 2240 Customized Customized Condition New Color Customized Voltage AC380V, 50Hz, 3pH (Option: 220V) Working Area 2200*4000*200mm Spindle China Brand Changsheng Water Cooling Spindle Motor FL118 Stepper Motor Driver Yako 2608 Driver Inverter 5.5kw Fuling Inverter Table Surface T-Slot and Vacuum Working Table Rail Sweden Abba #20 Linear Square Rail Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

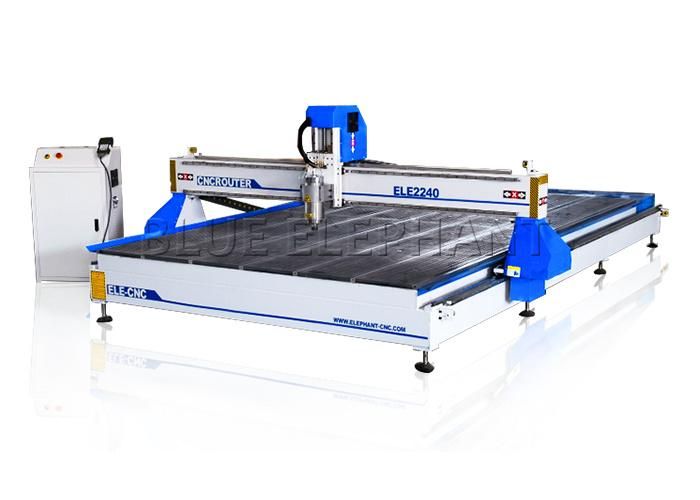

Engraving Cutting CNC Router Wood Carving Machine 2240 Big Working Size
Introduction

1. With 2200*4000mm working area,bigeer working area
2. With desk top body,don't need to connect legs
3. DSP handle controller,don't need to connect computer
4. 5.5KW water cooling spindle,bigger power for cutting and carving

parameter


Description	Parameter
X,Y,Z Working Area	2200*4000*200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Table Surface	Vacuum & T-slot Working Table
X, Y Structure	Helical Rack gear, Sweden ABBA Linear Square Rail 20#
Z Structure	Taiwan TBI Ball Screw, Sweden ABBA Linear Square Rail 20#
Spindle Power	5.5KW Changsheng water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	FL118 stepper motor and YAKO 2608 driver
Inverter	5.5kw Fuling Inverter
Lubrication system	Manual lubrication system
Working Voltage	AC380V/50Hz,3PH (Option: 220V)
Operating System	DSP A11 Control System  (Options: Ncstudio /Mach3 Software)
Control box	Single-sided indenpended control box
Pump	water circulation vacuum pump (380V, 3Ph, 50Hz)
Optional	Japan Omron limit switch

PS:All the working area and specifications can be customized according to your requests.

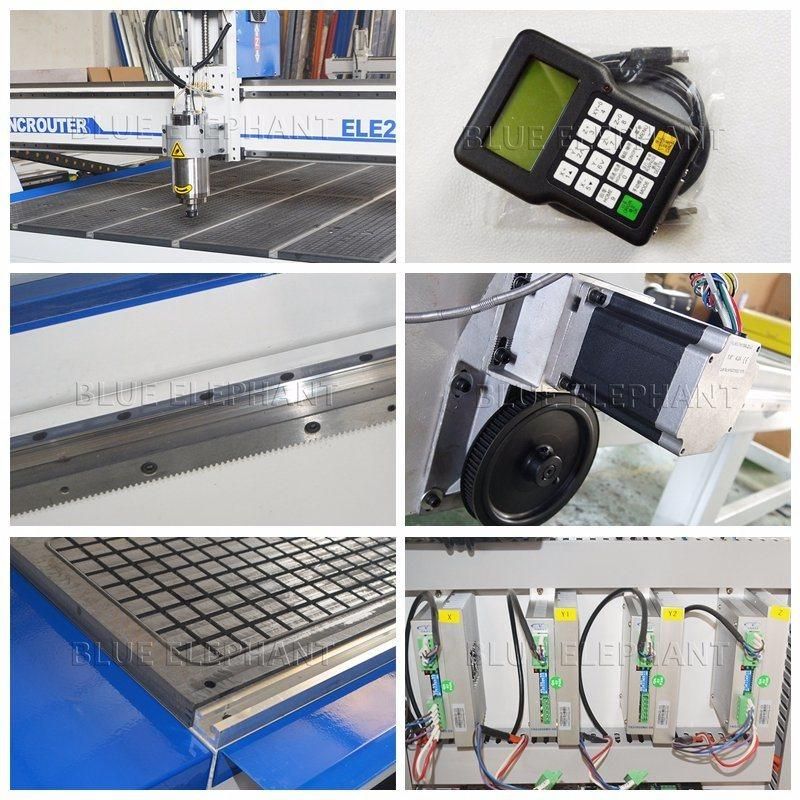

 Product details

Applications

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.


Packaging & Delivery:

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.



Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.


Our Factory


Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
