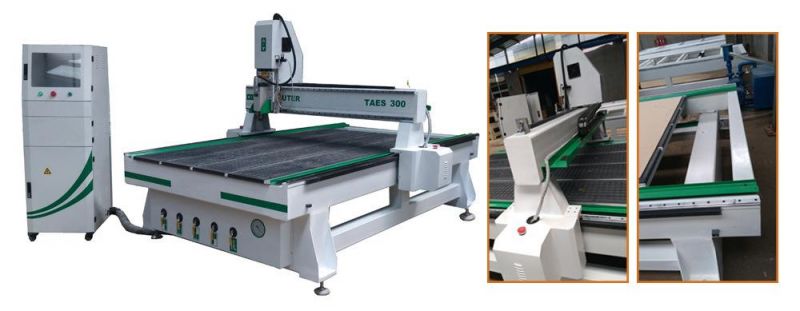

1325 Wood, Acrylic, MDF, Plastic, Rubber, Soft Metal, Engraving and Cutting Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE, ISO
Base Info
- Model NO.:1325
- Customized:Customized
- Condition:New
- Color:Customized
- Voltage:380V,220V
- Weight:1500kgs
- Dimension:1300*2500*200mm
- Control System:Nc Studio or Richauto
- Guild Rail:Hiwin Square Rail
- Ball Screw:PMI, Taiwan
- Transport Package:Plywood Case
- Specification:CE
- Trademark:DONGTONG
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:50 PCS,Month
Description
Basic Info.
Model NO. 1325 Customized Customized Condition New Color Customized Voltage 380V/220V Weight 1500kgs Dimension 1300*2500*200mm Control System Nc Studio or Richauto Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 PCS/MonthProduct Description

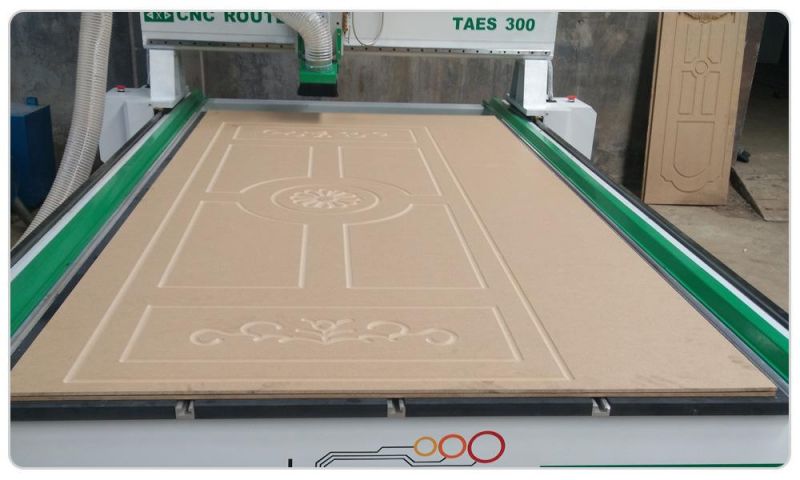

Multi-workstage auto tool change, 1325, ATC Engraving Cnc Router for door and cabinet from professional cnc router manufacturer in ChinaIndustries : Processing various kinds of moulds and furniture such as door, window, cabinet, craft wooden door, screen and so on.

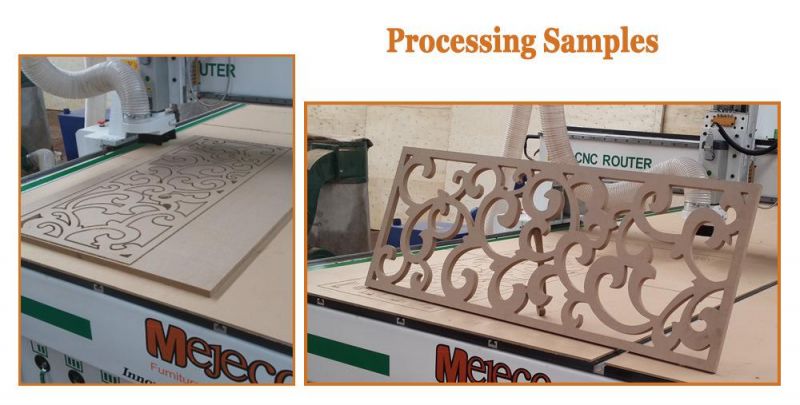

Materials: Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
1. Advanced control system: Taiwan SYNTEC or NC STUDIO
2. Compatible with software such as:TYPE3/ARTCAM/UG/PRO- E/UCANCAM/AUTOCAD/MASTERCAM
3. Functions of power-off recovery, continuation on break point, time anticipation.

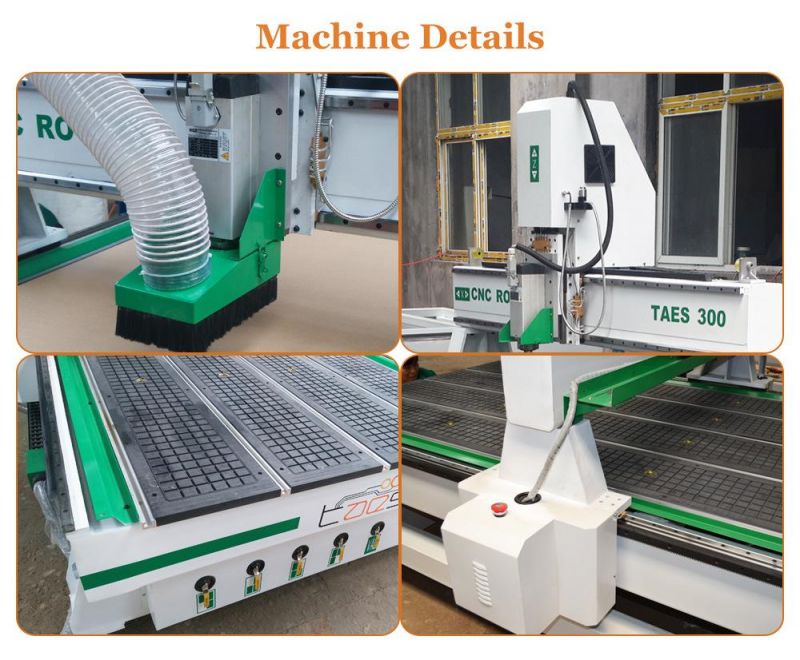

4. Excellent components: HIWIN guild rail and ball screws, low noise spindle
5. Welding steel structure and 10mm gantry
6. Powerful vacuum table divided to 6 zones, can adsorb different size materials.
7. 3 spindles work in turn as request, save change tool time.
8. Two motors for Y axis, running steadily
3. Special configuration could be customer-oriented designing.
NO | Performance index | Performance index | Parameter |
1 | Working area | X axis | 1300mm |
Y axis | 2500mm | ||
Z axis | 200mm | ||
2 | Table size | 1300mm*2500mm | |
3 | Accuracy | Processing precision | 0.05mm |
Reposition precision | 0.05mm | ||
4 | Drove mode | X axis | Helical rack and pinion |
Y axis | Helical rack and pinion | ||
Z axis | Ball screws | ||
5 | Speed | Max travel speed | 30000mm/min |
Max engraving speed | 15000mm/min | ||
6 | Spindle(water-cooling) | Spindle power | 5.5KW *3 |
Spindle speed | 0_24000r/min | ||
7 | Running mode | Stepper or servo motor | |
8 | Operating voltage | AC220V/50HZ | |
9 | Command code | G Code | |
10 | Operating system | Nc Studio 53C | |
11 | Table | Vacuum | |
12 | Machine's size | 3100x2200x1800mm |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. Free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support and service
1325 Wood, Acrylic, MDF, Plastic, Rubber, soft metal, Engraving and Cutting machine
If you have specific requirement for wood door and cabinet cnc router,
customization is available
