• Model NO.：GJH 1325-3
• Customized：Customized
• Condition：New
• Color：Customized
• Application：Wood, MDF, Arylic
• Guide Rail：Hiwin 25
• Screw：Tbi 2510
• Running Mode：Servo
• Driver：Delta (Optional Yaskawa)
• Motor：750W
• Spindle：6kw & 4.5kw, Air Cooling
• Control System：Nc Studio 95A
• Transport Package：Plywood Case
• Specification：GJH1325-3
• Trademark：GJH
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. GJH 1325-3 Customized Customized Condition New Color Customized Application Wood, MDF, Arylic Guide Rail Hiwin 25 Screw Tbi 2510 Running Mode Servo Driver Delta (Optional Yaskawa) Motor 750W Spindle 6kw & 4.5kw, Air Cooling Control System Nc Studio 95A Transport Package Plywood Case Specification GJH1325-3 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 50 Sets Per Month

Product Description

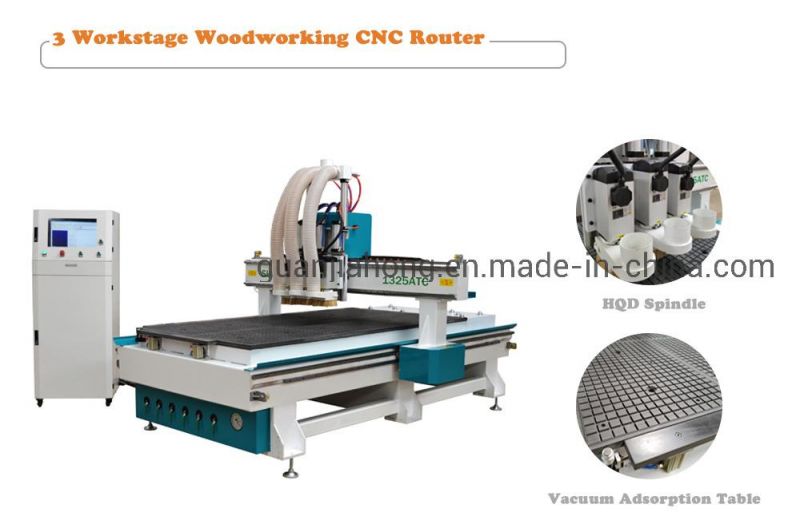

1. Asynchronous multi-head woodworking CNC Router Machine is customized for changing the tools within 3 pieces. It's not only economic, also can realize auto tool change, save the time of manual tool change and improve the working speed and precision.
2. Three spindles can use three different toolsfor three different processing at the same time, which is similar with an economical auto-tool changer cnc machine center with three tools.
3. Vacuum table with absorption/suction blockto assist the side drilling and milling process.
4. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
5. Table is equipped with alignment pop-up pinsfor you to fix the work piece quickly.

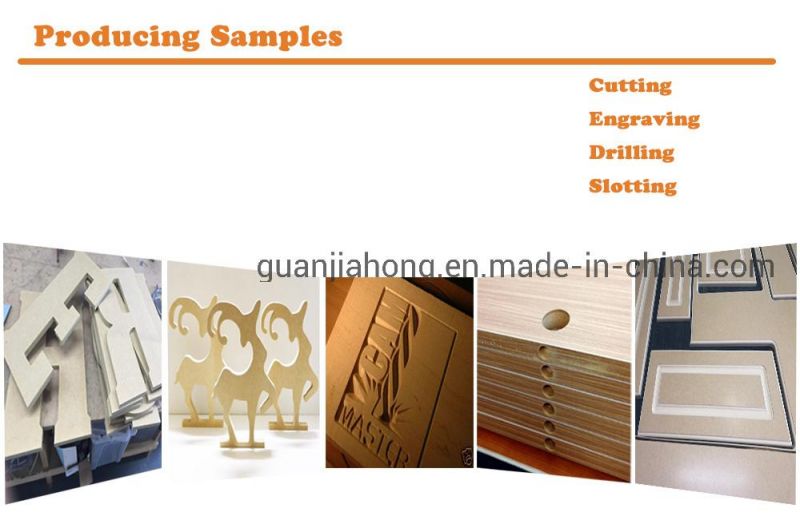

It is widely used for production of cabinet door, solid wooden door, computer desk, assembling furniture and large area and mass engraving on MDF and HDF, wood board, plane cutting, 3D embossment, etc.








NO	Index	Index	Parameter
1	Traveling	X axis	1300mm
		Y axis	2500mm
		Z axis	180mm
2	Table size		1300x2500mm
3	Accuracy	Working accuracy	0.02mm
		Reposition accuracy	0.02mm
4	Transmission	X axis	Rack
		Y axis	Rack & Double moters
		Z axis	Screw
5	Speed	Max Rapid	25000mm/min
		Max working speed	15000mm/min
6	Spindle	Spindle power	6KWx1Pc; 4.5KWx2pcs
	(Water-cooling)	Spindle speed	0-18000r/min
7	Drive mode		Stepper
8	Working voltage		AC380/50HZ
9	Command language		G Code
10	Operation system		Nc Studio 95A-3L

If you have any specific requirements for  woodworking CNC router, customization is available.
