• Model NO.：BQS1815,500RF
• Origin：China
• HS Code：8465960000
• Production Capacity：300sets,Year

Basic Info.

Model NO. BQS1815/500RF Origin China HS Code 8465960000 Production Capacity 300sets/Year

Product Description

Product Description5Ft Wood Veneer Rotary Spindle less Peeling Machine1. Main features:
1.2018 all new generation research & design SPECIAL FOR HARD WOOD.
2.Fastest veneer peeling speed can reach to 100M/MIN.
3.Save 40% - 60% of power, reduce production cost.
4.Veneer double sides smooth and thickness evenness less than 0.05mm.
5.Double motors rollers, speed stable, overcome the unstable Indian voltage.
6.Bigger power inverter and English language PLC control system.
7.Clipper inbuilt design, peeling and clipping at same time.
8.Automatic electrical lubrication system for all important mechanical parts.
9.Automatic air cylinders dropper for final log to save production time.
10.R87 harden helical gear speed reducer and Japan NSK bearings.
11.Automatic final piece veneer holder device.
12.Full closure oil immersed screws, wear-resisting, maintenance -free.
13.Exclusive manufacturer adopt the full closure oil immersed guide bar(quenching process treatment), all working life free maintenance, promise the machines feeding at most stable Condition, so that can get the best quality veneer.
2. Technical specifications:

Item	Specifications	Remark
Machine model	BQS1815/500RF
Max. peeling length	1400mm	Roller length 1500mm
Max. peeling diameter	Φ500mm	Max.opening Φ550mm
Min. peeling diameter	Φ28mm	Cross roller can be Φ 26mm
Peeling speed range	0-120m/min	Frequency adjustable speed
Veneer thickness range	0.5-6.0mm	Double sides smooth
Double rollers motor power	7.5Kw + 7.5Kw	Germany Siemens
Single rollers motor power	5.5Kw + 5.5Kw	Germany Siemens
Feeding motor power	7.5Kw	Servo motor
Veneer clipper motor power	2.2Kw	Germany Siemens
Veneer conveyor motor power	2.2Kw	Germany Siemens
Double rollers speed reducer	R87 harden helical	First class grade, casting steel.
Single rollers speed reducer	R87 harden helical	First class grade, casting steel.
Feeding screw speed reducer	R87 harden helical	First class grade, casting steel.
Rotary clipper speed reducer	φ90 big square	First class grade, casting steel.
Rollers specification	Φ125mm diameter	High frequency quenching treat Two sections, thicker chroming.
Machine structure material	Q235B	40mm thickness steel plate
Peeling knife size	1500x180x16mm	Japan tech
Clipper knife size	1400x100x13mm	Japan tech
Machine overall dimension	4500x1900x1500mm	Installation dimension
Machine weight	7000Kgs	Net weight

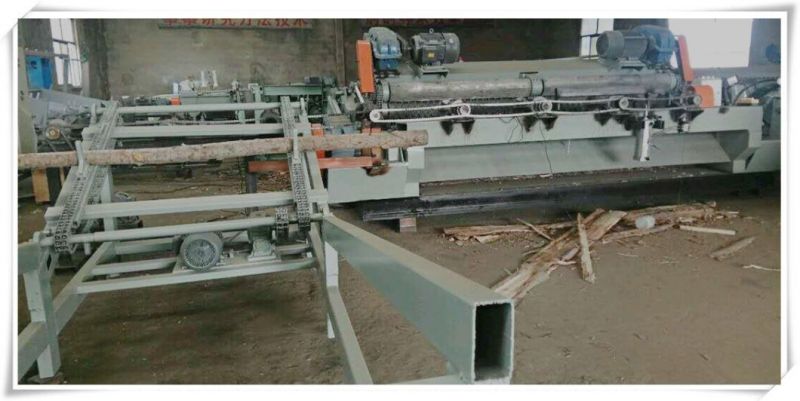

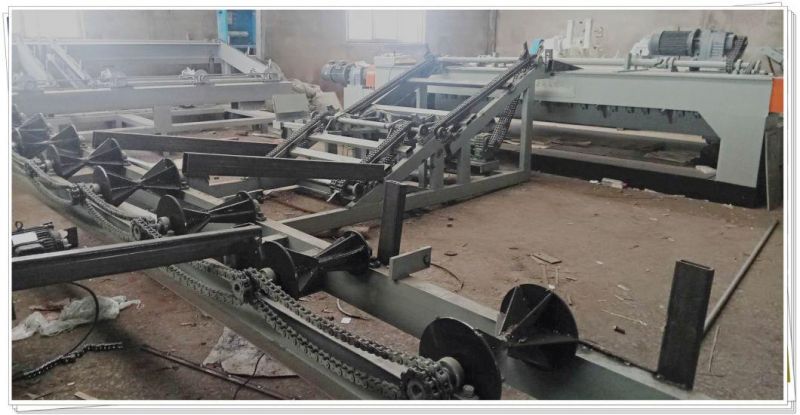

3. More Pictures
