Desktop MDF Board Small Carving CNC Router (DW3030)
Jinan Dwin Technology Co., Ltd.- Type：Engraving Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE
Base Info
- Model NO.：DW3030
- Customized：Customized
- Condition：New
- Color：Customized
- Working Arae：300mm*300mm
- Z Axis Working Area：60mm
- Working Speed：0 - 3000mm,Min
- Software：Type 3 Software, Artcut Software, Artcam
- Driver Type：Stepper Motor
- Spindle Speed：0 - 24000rpm
- Spindle Power：1.5kw
- Control System：March3(Option:DSP Control System)
- Command：G Code, U00, Mmg, Plt
- Machine Structure：T-Slot Table(Vaccum Table for Choice)
- Transport Package：Playwood Box
- Specification：CE, SGS
- Trademark：DWIN
- Origin：Jinan City Shandong Province China
- HS Code：8465990000
- Production Capacity：50 Sets,Month
Description
Basic Info.
Model NO. DW3030 Customized Customized Condition New Color Customized Working Arae 300mm*300mm Z Axis Working Area 60mm Working Speed 0 - 3000mm/Min Software Type 3 Software, Artcut Software, Artcam Driver Type Stepper Motor Spindle Speed 0 - 24000rpm Spindle Power 1.5kw Control System March3(Option:DSP Control System) Command G Code, U00, Mmg, Plt Machine Structure T-Slot Table(Vaccum Table for Choice) Transport Package Playwood Box Specification CE, SGS Trademark DWIN Origin Jinan City Shandong Province China HS Code 8465990000 Production Capacity 50 Sets/MonthProduct Description

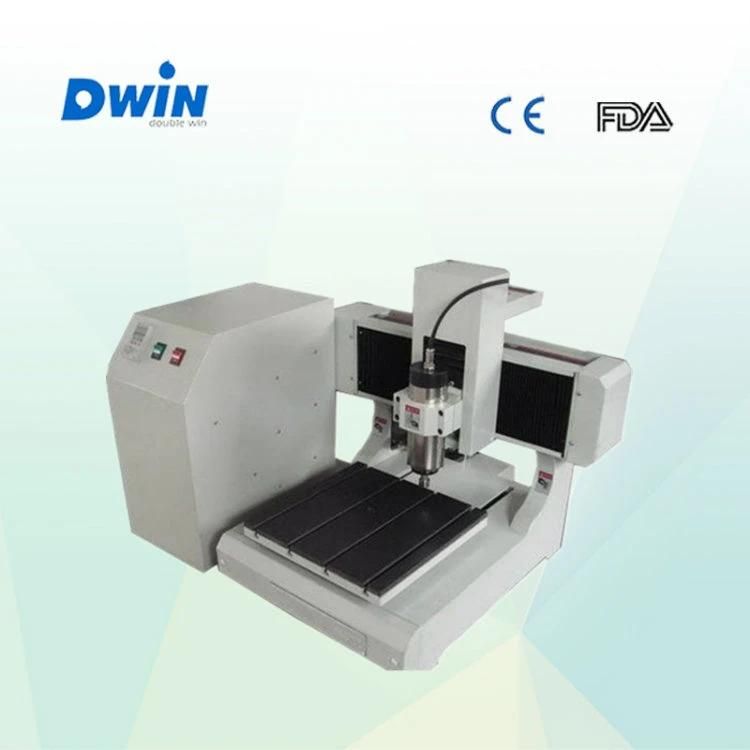

Desktop MDF Board Small Carving CNC Router (DW3030)
Features:
1.The machine adopts international advanced accurate guide rail,slide pre-tight installment (guaranteed no space is between the slides) and German original ball screw to realize steady movement ,high precision and small vibration.
2.Mach 3 control system that adopted by the machine has the advantages of break point and break power continue engraving,assisned G code engraving ,etc.(The DSP handle operation system which enables the machine work without the computer can be choosen .)
Applicable materials:
PVC board,ABS, double-color board,acrylic,MDF,stainless steel,copper,alumnium, zinc etc materials.

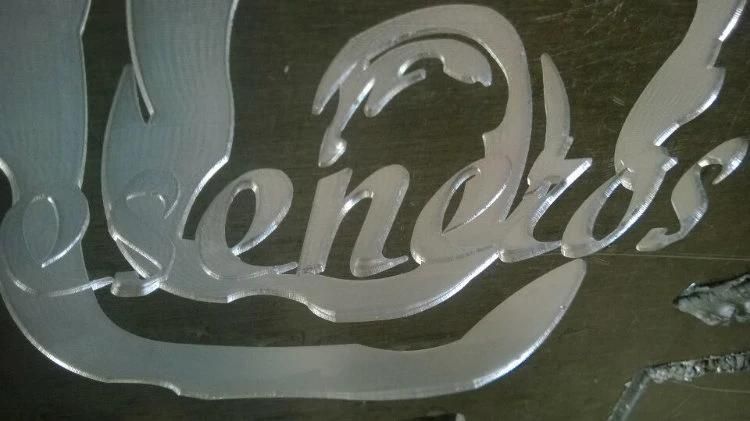

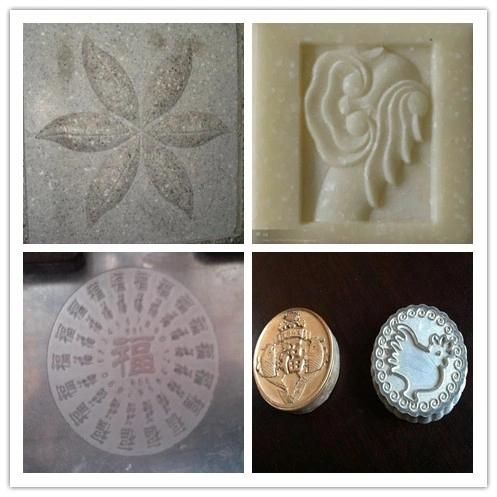

Samples:
Technical parameters:
| Model | DW3030 Mini CNC router |
| Work dimensions: | 300 x 300 x 60mm |
| Body dimensions: | 600 x 600 x 600mm |
| Z-axis working area: | 60mm |
| Max. Feeding height: | 60mm |
| Cut thickness of material: | <20mm |
| Max.Speed: | 4200mm/min |
| Working speed: | 0 - 3000mm/min |
| Mechanical precision: | 0.01mm |
| Software: | Type 3 software, Artcut software, Artcam software |
| Max. Power consumption: | 900W |
| Power supply : | AC 220/50Hz |
| Driver type: | Stepper motor |
| Memory: | 1MB |
| Spindle: | 1.2KW variable speed, water cooled motor |
| Spindle speed: | 0 - 24000RPM |
| Blade diameter: | 1 - 6m |
| Control system: | March3 or Wei hong (NCSTUDIO) or DSP (USB interface) |
| Command: | G code, u00, mmg, plt |
| Interface: | RS232 |
1.PCI card
2.spindle:1.5KW
3.table can move
4.water pump
5.software:Type3
6.20 pieces of bits
Guarantee & After sales service:
1. 24 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 24 hours online service each day, free technical support.
