Mini 3D Embossing CNC Router
Jinan Dwin Technology Co., Ltd.- Type：Engraving Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE
Base Info
- Model NO.：DW3030
- Customized：Customized
- Condition：New
- Color：Customized
- Machine Structure：Heavy Duty
- Optional Structure：Light Portable One
- System：PCI Card
- Optional System：DSP
- Transport Package：Plywood Box, Free of Fumigation
- Specification：CE, FDA
- Trademark：DWIN
- Origin：Jinan City, Shandong Province
- HS Code：8465990000
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. DW3030 Customized Customized Condition New Color Customized Machine Structure Heavy Duty Optional Structure Light Portable One System PCI Card Optional System DSP Transport Package Plywood Box, Free of Fumigation Specification CE, FDA Trademark DWIN Origin Jinan City, Shandong Province HS Code 8465990000 Production Capacity 50 Sets Per MonthProduct Description

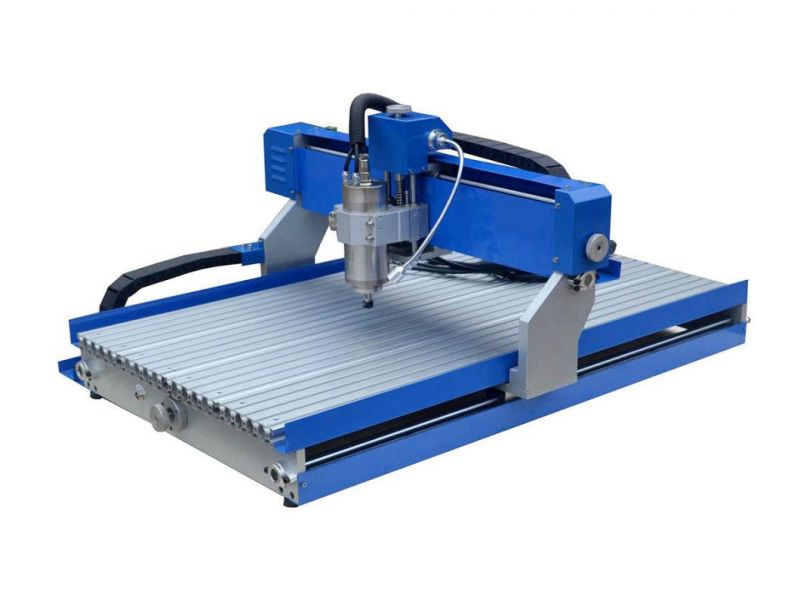

Mini 3D Embossing CNC Router
This mini 3d cnc router can be used for embossing on wood, acrylic, and metals. it can be put on your table save space, and also save cost.
Features:
1.The machine adopts international advanced accurate guide rail,slide pre-tight installment (guaranteed no space is between the slides) and German original ball screw to realize steady movement ,high precision and small vibration.
2.Mach 3 control system that adopted by the machine has the advantages of break point and break power continue engraving,assisned G code engraving ,etc.(The DSP handle operation system which enables the machine work without the computer can be choosen .)

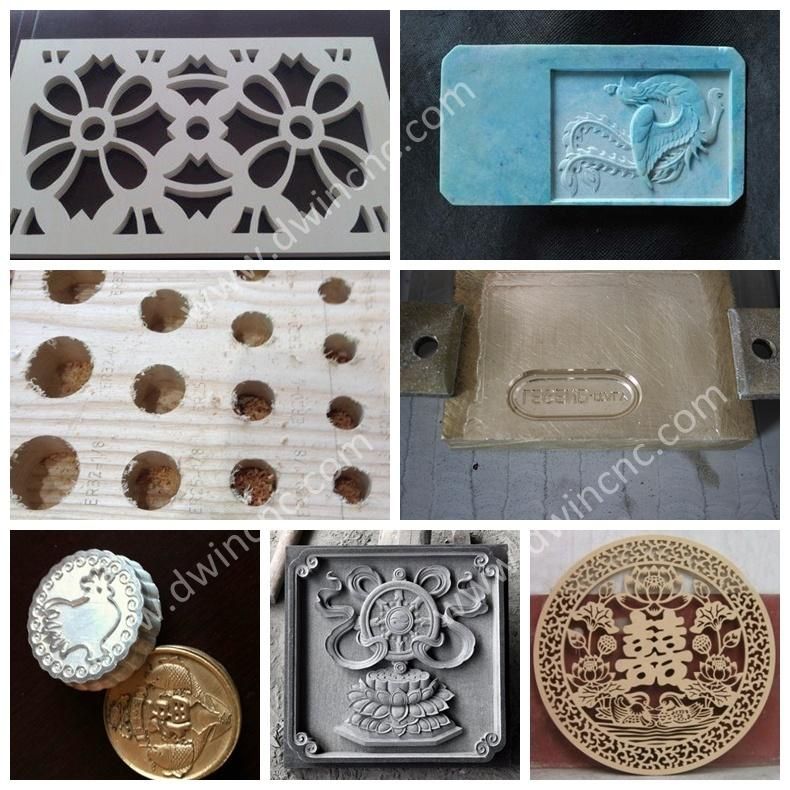

Applicable materials:
PVC board,ABS, double-color board,acrylic,MDF,stainless steel,copper,alumnium, zinc etc materials.
Technical parameters:
Machine body: | DW3030 Whole cast iron |
| Work dimensions: | 300 x 300 x 60mm |
| Body dimensions: | 600 x 600 x 600mm/400*300mm |
| Z-axis working area: | 60mm |
| Max. Feeding height: | 60mm |
| Cut thickness of material: | <20mm |
| Max.Speed: | 4200mm/min |
| Working speed: | 0 - 3000mm/min |
| Mechanical precision: | 0.01mm |
| Software: | Type 3 software, Artcut software, Artcam software |
| Max. Power consumption: | 900W |
| Power supply : | AC 220/50Hz |
| Driver type: | Stepper motor |
| Memory: | 1MB |
| Spindle: | 1.2KW variable speed, water cooled motor |
| Spindle speed: | 0 - 24000RPM |
| Blade diameter: | 1 - 6m |
| Control system: | Artcut or Wei hong (NCSTUDIO) or DSP (USB interface) |
| Command: | G code, u00, mmg, plt |
| Interface: | RS232 |
