• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*1800*300mm
• X, Y, Z Traveling Positioning Accuracy：± 0.03,300mm
• X Y Structure：Taiwan Hiwin Square Guide Rails
• Spindle：Water Cooling Spindle
• Spindle Power：2.2kw
• Motor：Stepper Motor
• Control System：4 Axis Control System
• Transmission：Helical Rack
• Warranty：1 Year
• Delivery：10 Working Days
• Transport Package：Exporting Plywood Package
• Specification：CE. SGS
• Trademark：ZHONGKE
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：1000 Sets Per Year

Basic Info.

Customized Customized Condition New Color Customized Working Area 1300*1800*300mm X, Y, Z Traveling Positioning Accuracy ± 0.03/300mm X Y Structure Taiwan Hiwin Square Guide Rails Spindle Water Cooling Spindle Spindle Power 2.2kw Motor Stepper Motor Control System 4 Axis Control System Transmission Helical Rack Warranty 1 Year Delivery 10 Working Days Transport Package Exporting Plywood Package Specification CE. SGS Trademark ZHONGKE Origin Jinan, China HS Code 8465990000 Production Capacity 1000 Sets Per Year

Product Description

Product Description

1.Four axis machine, with 4 Rotaries and 4 spindles, which can work at the same time or independently, and every one's max effective working       area is 300mm(diameter) by 1500mm(length).

2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .

3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

4.Has the 4th rotary which is used for engraving cylinder workpiece.

5.Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/ Castmate/Wentai etc.

6.Has the function of re-carving after break point and power failure

7. Adopting stepper motor and driver, can be optional China or Japanese servo motors

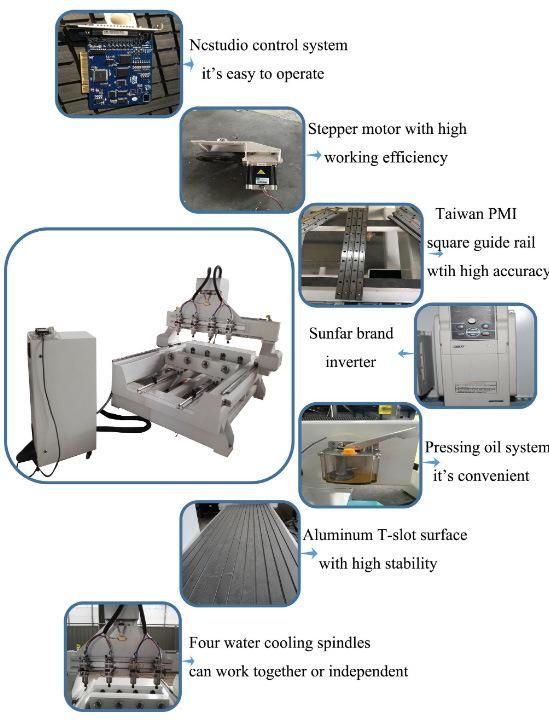

Configuration:

1.Welded steel bed structure

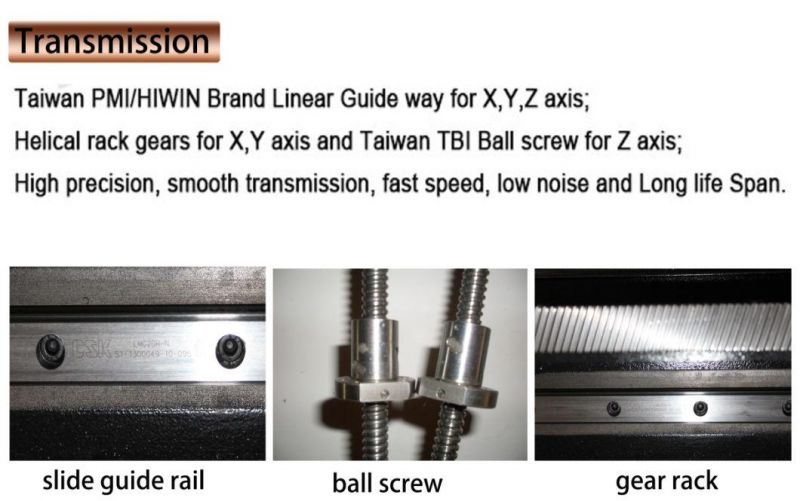

2.Taiwan HIWIN square guide rails for three axises, Rack transmission for X and Y axis, Ball screw for Z axis

3.2.2KW water cooling spindle with water pump

4.Shenzhen SUNFAR inverter

5.MACH3 control system or 4 axis DSP/Ncstudio control system, optional by you

6.Rotary attachment multi-pieces

7.Oil lubrating system

8.450B stepper motor Chuangwei brand and 860H driver Leadshine brand

9.8 collects and 15 pieces cutters




Specification

Model	ZK 1318 CNC router
X,Y,Z Working Area	1300*1800*300mm
X,Y,Z Traveling  Positioning Accuracy	±0.03/300mm
X,Y,Z repositioning  Positioning Accuracy	±0.02mm
Lathe Structure	Thick wall square tubes welding bed
X Structure	Taiwan HIWIN square guide rails
Y Structure	Taiwan HIWIN square guide rails
Z Structure	Taiwan  HIWIN square guide rails
Max.Speed	0-30000mm/min
Max.Working Speed	0-25000mm/min
Spindle	2.2KW water cooling spindle
Spindle Speed	0-24000RPM
Working Mode	stepper motor and driver
Working Voltage	380V/3 phase 50HZ
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	Mach3 control system optional DSP or Ncstudio
Interface	USB
X,Y Working Delicacy	<0.01mm
Software	Type3/Ucancam/JDpaint/artcam software
Running circumstance	Temperature: 0°C~45°CRelative humidity: 30%~75%
Waranty	One year
Delivery time	20 working days

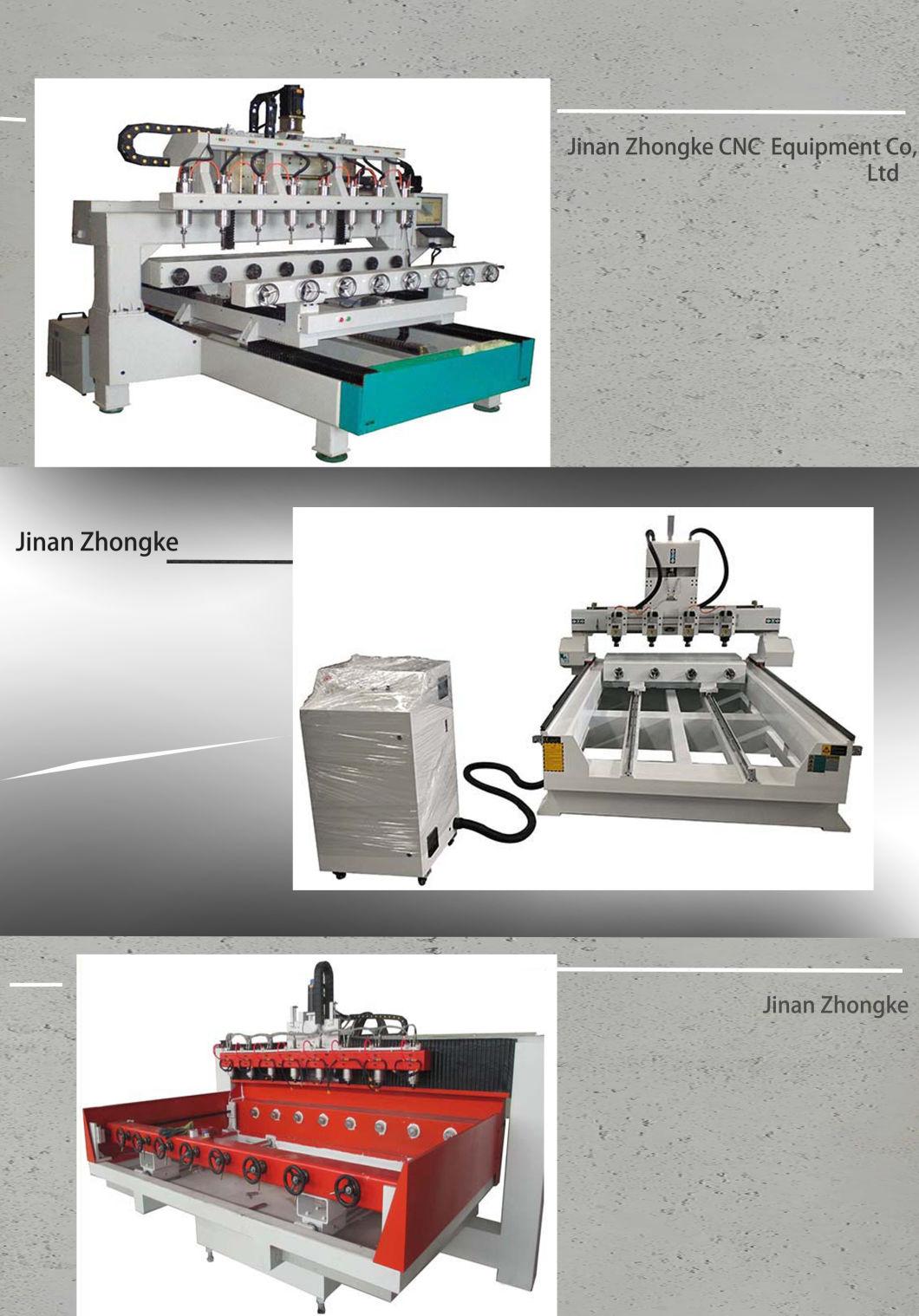

Sample photos
