• Customized：Customized
• Condition：New
• Color：Customized
• Control System：DSP
• Inverter：Sunfar Inverter
• Table：Vacuum Adsorption Table
• Guide Rail：Taiwan Hiwin Square Guide Rail
• Motor：Stepper Motor
• Transmission：Helical Rack
• Spindle Power：Water Cooling Spindle
• Spindle Speed：6000-24000
• Lathe Bed：T-Shape Heavy Duty Bed Structure
• Application：Wooden Industry
• Transport Package：Plywood Package
• Specification：1300*2500*200mm
• Trademark：ZK
• Origin：Jinan Shandong
• HS Code：8465990000
• Production Capacity：100

Basic Info.

Customized Customized Condition New Color Customized Control System DSP Inverter Sunfar Inverter Table Vacuum Adsorption Table Guide Rail Taiwan Hiwin Square Guide Rail Motor Stepper Motor Transmission Helical Rack Spindle Power Water Cooling Spindle Spindle Speed 6000-24000 Lathe Bed T-Shape Heavy Duty Bed Structure Application Wooden Industry Transport Package Plywood Package Specification 1300*2500*200mm Trademark ZK Origin Jinan Shandong HS Code 8465990000 Production Capacity 100

Product Description

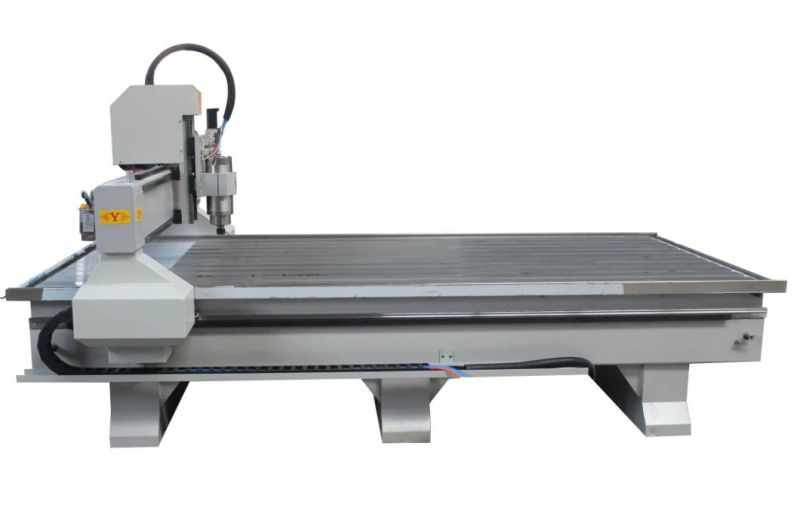

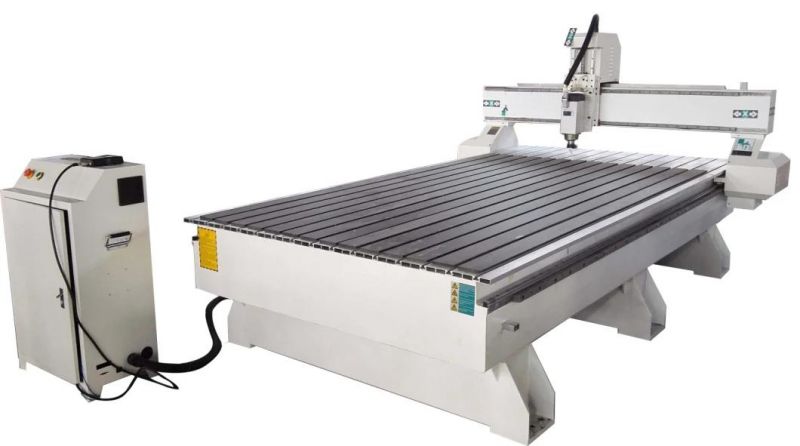

Jinan cnc router machine for wood, MDF

Feature:
1 Welded steel bed structure , when working its more stable.
2 Vacuum adsorption table can hold the material, improving the working precision.
3 Sunfar brand inverter
4 DSP control system
5 Water cooling spindel .
6 TaiWan high precision HIWIN square guide rail, improving working accuracy.
7 Stepper motor working mode
8 Transmission by helick rack
9 TaiWan TBI Ball Screw
10 Servo motor and SYNTEC control system is optional

Specification:

Model	ZK 1325 CNC router
X,Y,Z Working Area	1300*2500*200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z repositioning Positioning Accuracy	±0.02mm
Lathe Structure	Thick wall square tubes welding bed
X Structure	Taiwan HIWIN square guide rails
Y Structure	Taiwan HIWIN square guide rails
Z Structure	Taiwan TBI ball screw
Max.Speed	0-30000mm/min
Max.Working Speed	0-25000mm/min
Spindle	water cooling spindle
Spindle Speed	6000-24000RPM
Working Mode	Stepper motor
Working Voltage	380V/3ph    50HZ/60Hz for standard machine, if optional vacuum system or servo system, it need 380V 3 phase
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	Ncstudio control system or DSP control system( also can choose LNC or SYNTECH control system, it depends on your requirement)
Interface	USB
X,Y Working Delicacy	<0.01mm
Software	Type3 software or Wentai software
Running circumstance	Temperature: 0°C~45°C
Waranty	One year
Delivery time	2 weeks

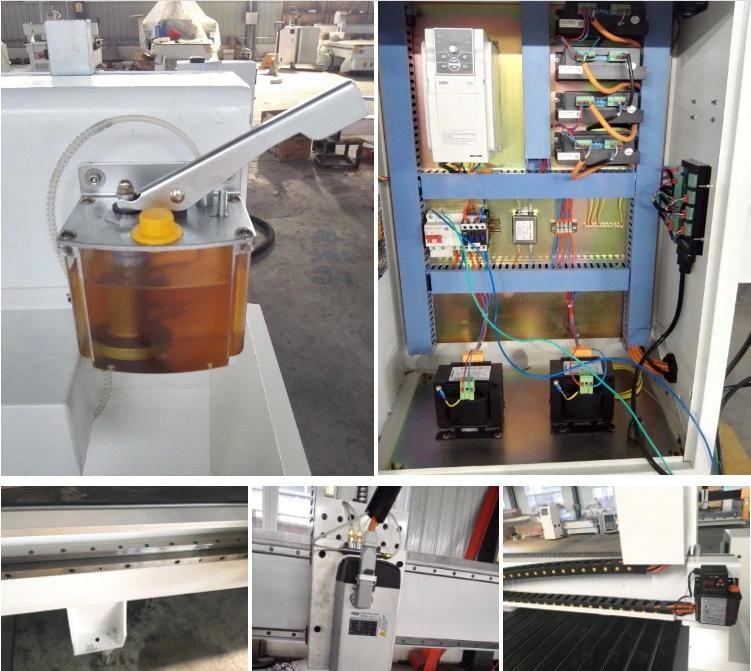

Detail parts:
