• Model NO.：MJ6230B
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：White
• Length of cut：3000mm
• Height of cut：100mm
• Width of saw cut：2850mm
• Main saw speed：48000r,min
• Main saw motor power：11kw
• Air pressure：0.6-0.7MPa
• Weight：About 3800kg
• Machine size (L × W × H)：5900*3500*1800mm
• Transport Package：Plywood Cases
• Specification：5900*3500*1800mm
• Trademark：ZICAR
• Origin：China
• HS Code：8465910000
• Production Capacity：50sets,Month

Basic Info.

Model NO. MJ6230B Certification CE, ISO Customized Customized Condition New Color White Length of cut 3000mm Height of cut 100mm Width of saw cut 2850mm Main saw speed 48000r/min Main saw motor power 11kw Air pressure 0.6-0.7MPa Weight About 3800kg Machine size (L × W × H) 5900*3500*1800mm Transport Package Plywood Cases Specification 5900*3500*1800mm Trademark ZICAR Origin China HS Code 8465910000 Production Capacity 50sets/Month

Product Description

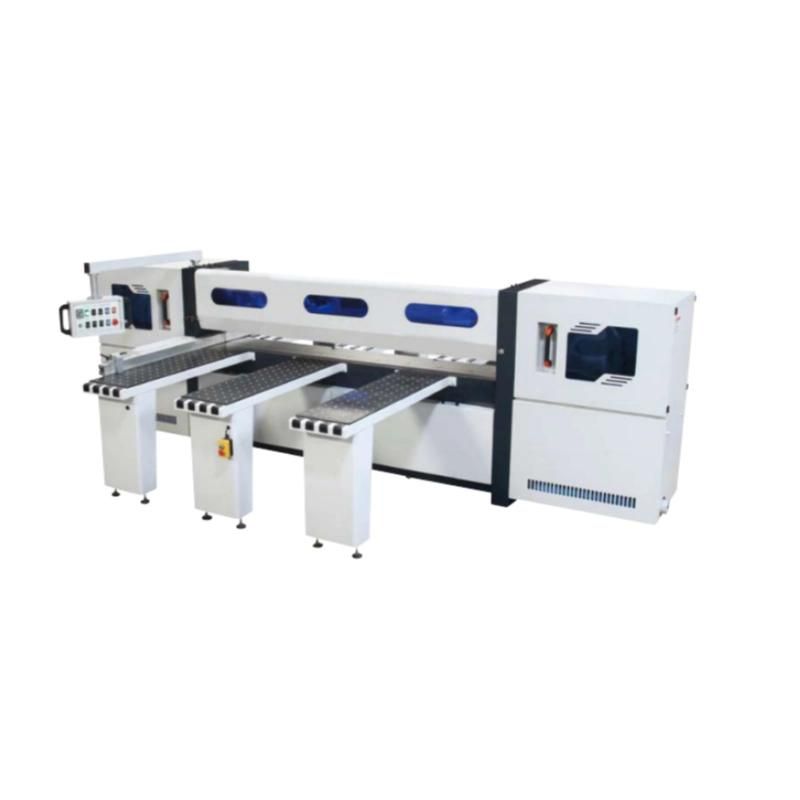

ZICAR Industrial Automatic Computer Panel Saw MJ6230B

Features1.German body technology is used to drive the saw body of the machine body, the perfect combination of reducer control and rack and pinion transmission, the cutting accuracy is within ± 0.15, and the automatic positioning sawing stroke can be realized according to different sawing widths
2.Special design which increasing the cutting speed, reducing the load of the saw blade is more durable and stable.
3.Taiwan Yonghong PLC, Schneider contactors and wiring, high quality, stable and durable.
4.The steel belt square rail is hardened and hard to deform, high efficiency and dustproof, stable operation and higher precision
5.Feeding protection, overtravel protection, emergency stop protection, limit limit, air pressure alarm, safety door guard, fueling system alarm, etc.Product Parameters


Model	ZICAR brand MJ6230B
Max.incising length	3000mm
Max.incising thickness	48mm
Main blade motor Power	5.5Kw
Outer diameter of main blade	Φ300mm
Inner diameter of main blade	Φ30mm
Revolving speed of main blade	4700rpm
Outer diameter of secondary blade	Φ120mm
Inner diameter of secondary blade	Φ20mm
Revolving speed of secondary blade	6700rpm
Cutting speed	15m/min
Returning speed	15m/min
Air pressure	0.6Mpa
Machine outline size	1000x4544x1350mm
Total Power	7.5Kw
Net weight	about1700Kg

Show Details



Product packaging

Company Profile
