• Model NO.：ZD214*8,10(1)H
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO
• Size(Feet)：4*8
• Dimension of Hot Platens：1400*2600mm
• Nominal Pressure：1.0mm
• Number of Layers：1
• Max Service Opening：80-120mm
• Diameter & Stroke of Oil Cylinder：100mm X 200mm
• Total Pressure：100,120,160,200ton
• Transport Package：Plywood Box
• Specification：3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659900
• Production Capacity：500sets

Basic Info.

Model NO. ZD214*8/10(1)H Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO Size(Feet) 4*8 Dimension of Hot Platens 1400*2600mm Nominal Pressure 1.0mm Number of Layers 1 Max Service Opening 80-120mm Diameter & Stroke of Oil Cylinder 100mm X 200mm Total Pressure 100/120/160/200ton Transport Package Plywood Box Specification 3CBM Trademark QDZD Origin Qingdao HS Code 84659900 Production Capacity 500sets

Product Description

ZD214*8/10(1)H Hot Press


Total pressure	100/120/160/200ton
Feeding direction	Transversal
Dimension of hot platen	2500x1300x42mm
Number of layers	optional
Number of platens	Optional
Stroke	80-120mm
Diameter & stroke of oil cylinder	100mm x 200mm
Number of cylinders	optional
Heating medium	thermal oil
Working pressure	optional
Total power	9.2Kw
Thermal oil furnace power	optional

Production Usage:

Hot Press machine is suitable for furniture production factory, wooden door factory, artificial board of second operation veneering, to hot-pressing bonding panel furniture, building partition wall, wooden door, fireproof door surface materials. In a variety of man-made board, such as: plywood, core-board, MDF, particle board's surface pressing all kinds of decorative materials, decorative fabric, wood veneer, PVC, etc., it can also be used for veneer drying, leveling, color decoration wood leveling, finalize the design and the effect is remarkable.

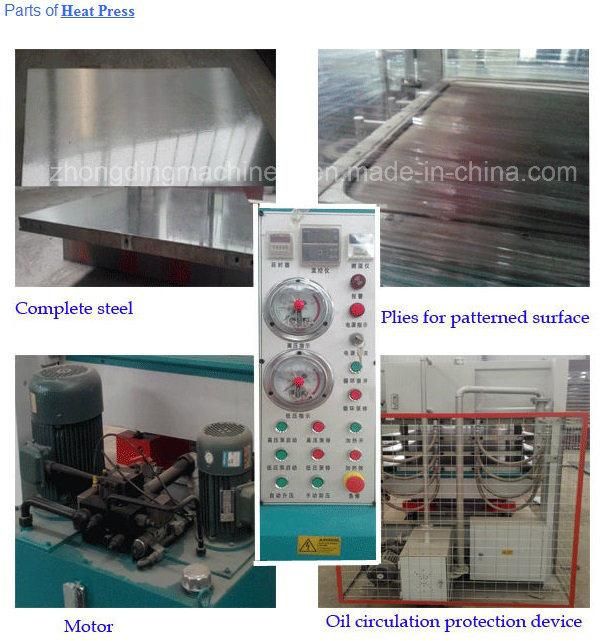

Product details:








Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659900

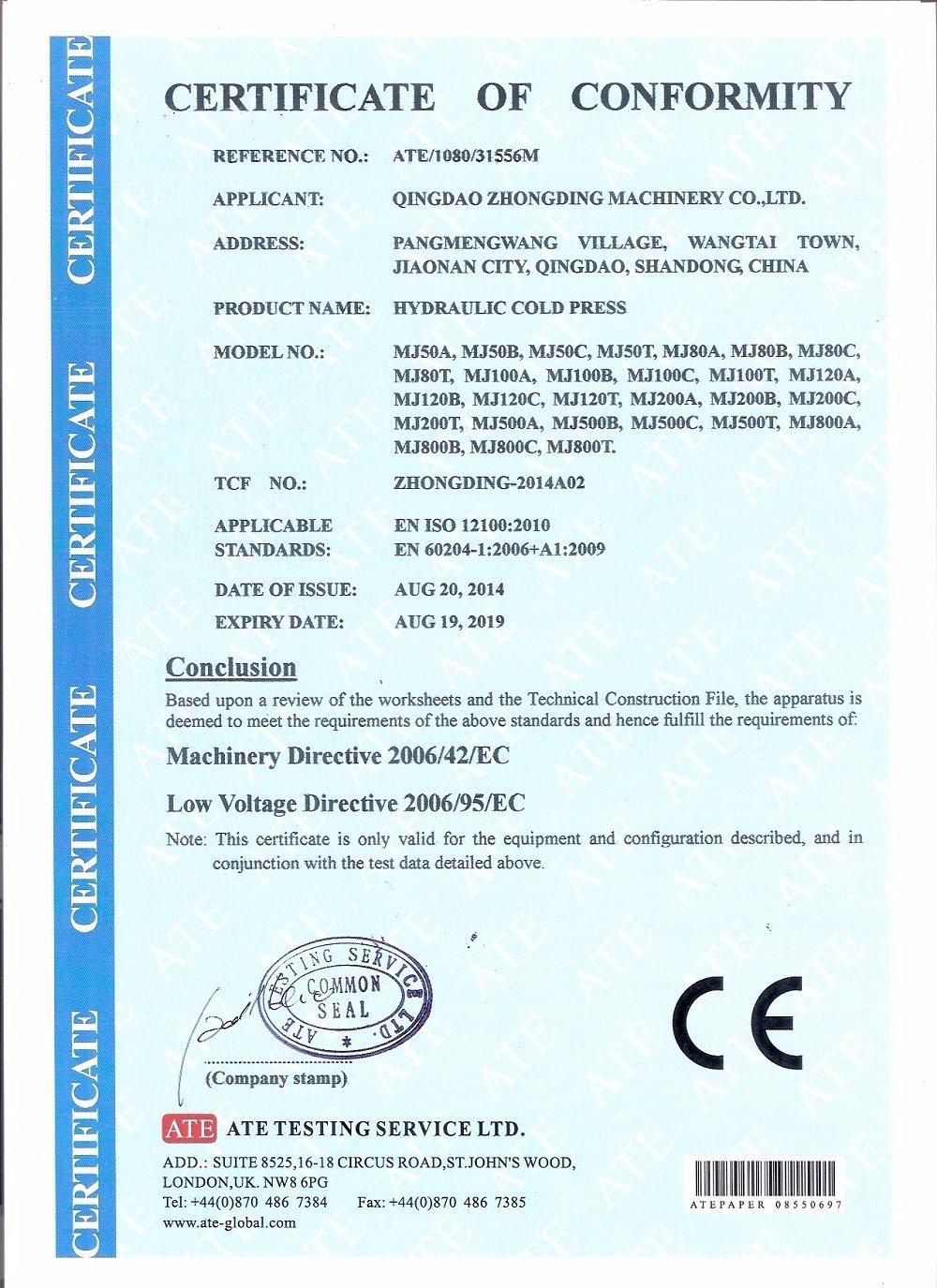

8) Certificate: CE&ISO 9000 Certificate

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
  Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
