Woodworking Machinery

Home > Product > Other Woodworking Machinery

1400mm 120m High Speed Spinleless Peeling Machine with Clipper Inside

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification：CE, ISO, FDA
  • Max Length of The Wood：1400mm
  • Working Speed：30~90m,Min
  • Working Diameter Range：30-500mm
  • Veneer Thickness：0.5-7.0mm
  • Transport Package：Standard Export Sea-Worthy Packing

Base Info

  • Model NO.：HBQS1815,450HK
  • Specification：Weight: 5500KGS
  • Trademark：Metro
  • Origin：China
  • HS Code：8465960000
  • Production Capacity：100set,Month

Description

Max working length
 1400mm
 Knife size
 1500mm
 Max working diameter
 Φ500mm
 Min working diameter
 Φ30mm
 Veneer thickness range
 0.5-7.0mm
 Roller diameter
 125mm
 Single roller motor
 5.5KWX2
 Double roller motor
 7.5KWX2
 Feed motor
 11KW
 Cutting motor
 1.5KW
 Conveyor motor
 1.5kw
 Total power
 40kw
 Peeling speed
 30~90m/min
 Overall size4700mmx1900mmx1500mm
 Weight7000kgs

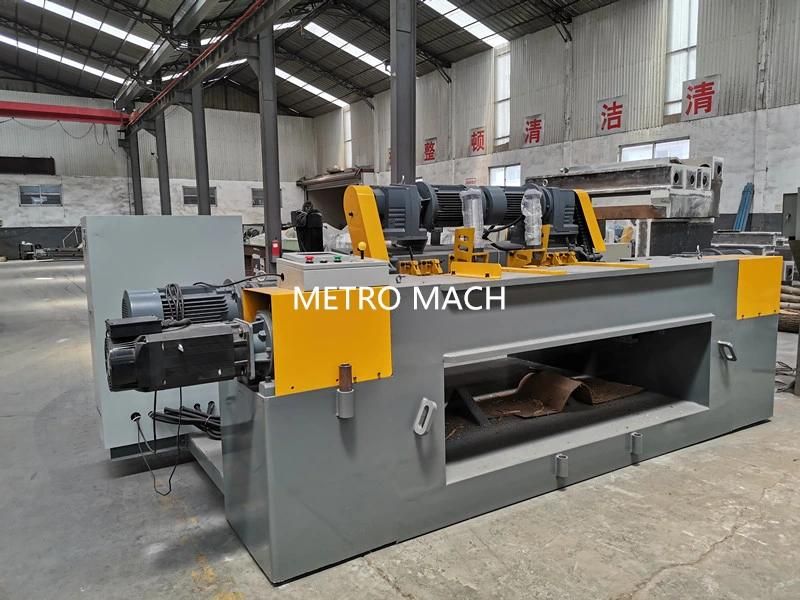

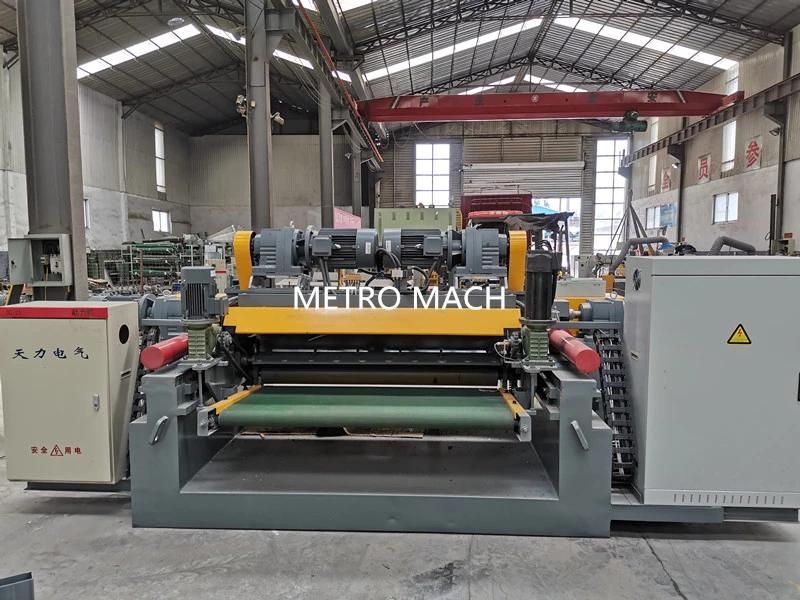

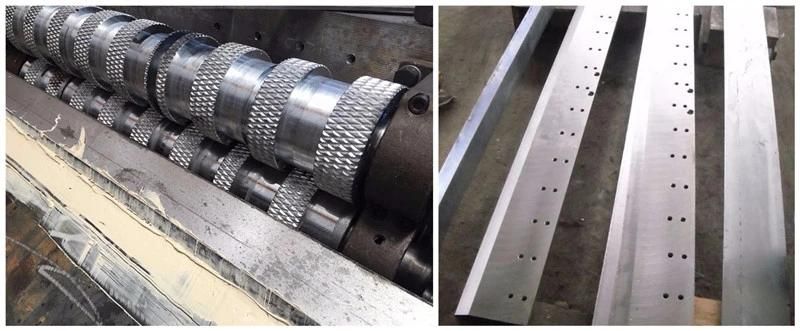

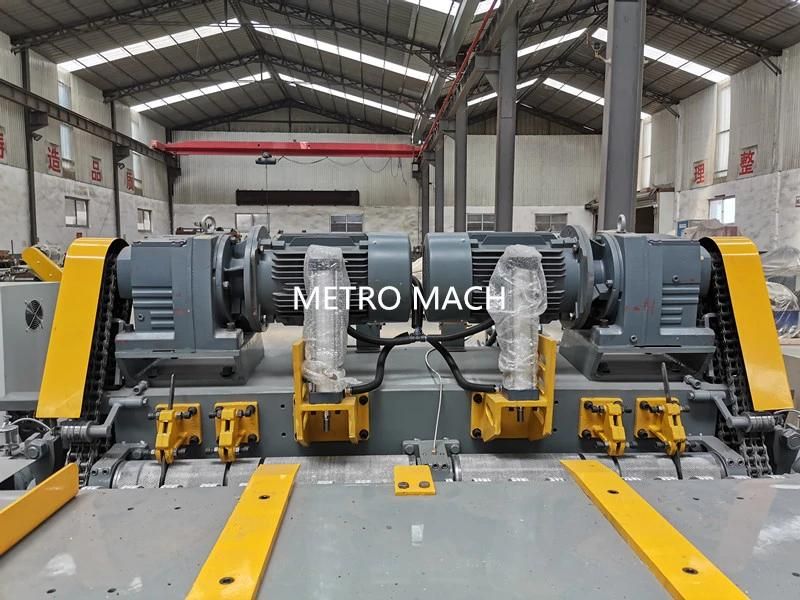

3.Detailed Pictures:
1400mm 120m High Speed Spinleless Peeling Machine with Clipper Inside
1400mm 120m High Speed Spinleless Peeling Machine with Clipper Inside

1400mm 120m High Speed Spinleless Peeling Machine with Clipper Inside
1400mm 120m High Speed Spinleless Peeling Machine with Clipper Inside



1400mm 120m High Speed Spinleless Peeling Machine with Clipper Inside

1400mm 120m High Speed Spinleless Peeling Machine with Clipper Inside

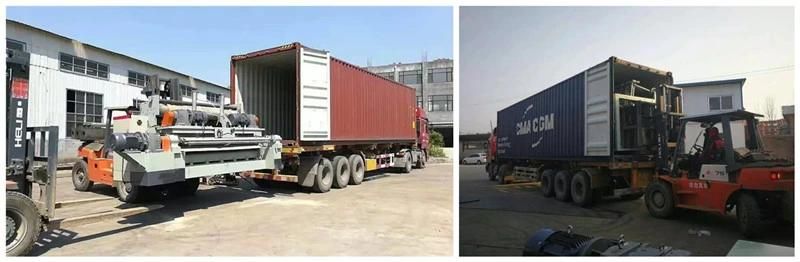

4.Packing and Delivery:
1400mm 120m High Speed Spinleless Peeling Machine with Clipper Inside

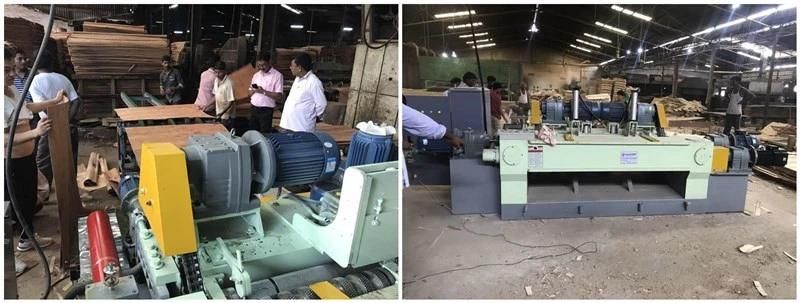

5.Working cases:
1400mm 120m High Speed Spinleless Peeling Machine with Clipper Inside

6.Client Satisfaction
It remains our prime aim to maintain offered machinery quality standards so as to garner multiple customers besides maintaining good terms with the old ones. Over the years we have been offering an unmatched quality product range and have successfully attained the trust and reliance of our esteemed clients.
