• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Max. Operating Speed：15m,Min
• Max. Carving Speed：0-5m,Min
• Working Software：Windows98,2000,XP
• Spindle Speed：6000-24000rpm
• Operating Voltage：AC380V,50Hz
• Motor：Stepper , Servo
• Control System：DSP , Nc Studio
• Guide：Taiwan Hiwin Linear Guide
• Transmission：Helical Rack and Pinion
• Transport Package：Plywood
• Specification：CE, ISO, SGS
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465909000
• Production Capacity：350,Mon

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Max. Operating Speed 15m/Min Max. Carving Speed 0-5m/Min Working Software Windows98/2000/XP Spindle Speed 6000-24000rpm Operating Voltage AC380V/50Hz Motor Stepper / Servo Control System DSP / Nc Studio Guide Taiwan Hiwin Linear Guide Transmission Helical Rack and Pinion Transport Package Plywood Specification CE, ISO, SGS Trademark FIRMCNC Origin Jinan, China HS Code 8465909000 Production Capacity 350/Mon

Product Description

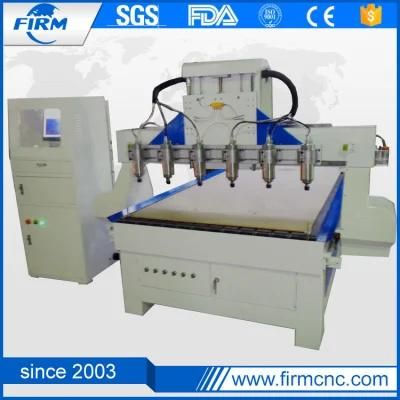

New Multi-Head Woodworking CNC Engraving Machinery

The characteristics

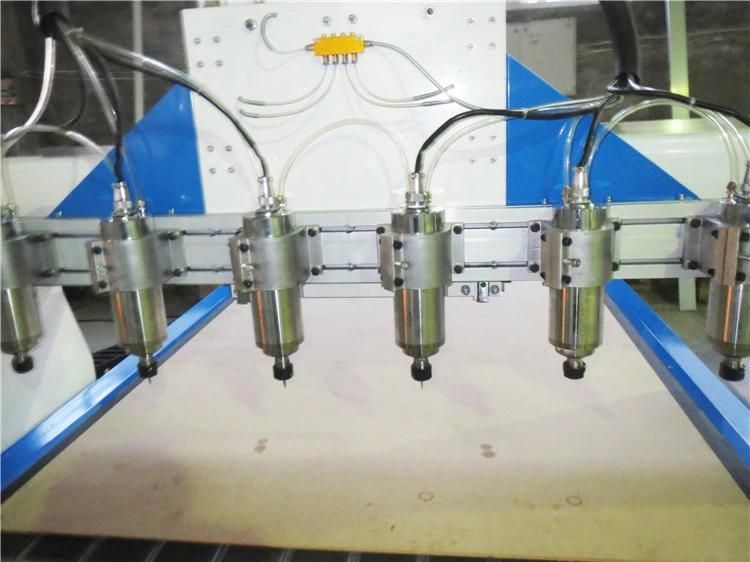

1. High speed, high torque, high precision 3.0Kw water cooling guarantees the high working speed and accuracy
2. Taiwan Hiwin square rails guarantees the accuracy and strength of the machine.
3. The servo motor adopt the current control system save the power consumption.
4. DSP control system, no need computer.
5. It adopt the T slot with clamp as working table, then you could fit different size of carved materials.
6. It has the break-point memory points for 10 pcs, reducing materials waste.
7. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
8. Well designed dust and wanter proof device ensure the machine easy maintenance.
9. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.

Technical Paramrter

Brand	Firm
Model	FM-1325
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

Samples

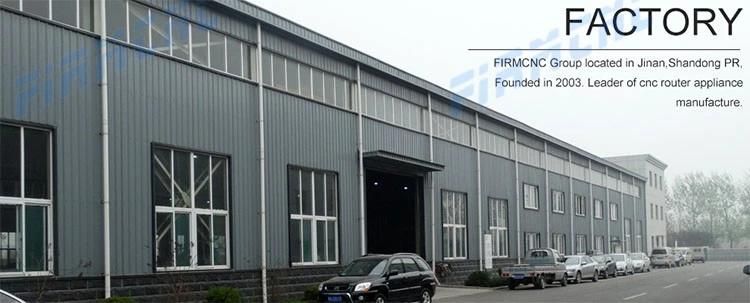

Our Company:
Jinan Firm CNC Equipment Co., Ltd producing cnc router is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision cnc routers and cnc machines.



Packing & shipment :
Save space as much as possible for container loading.
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package

After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!

FAQ
1.How long about the machine's guarantee?
1 year
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
