• Trademark：INVECH MACHINERY
• Origin：China
• Production Capacity：200PCS,Year

Basic Info.

Trademark INVECH MACHINERY Origin China Production Capacity 200PCS/Year

Product Description

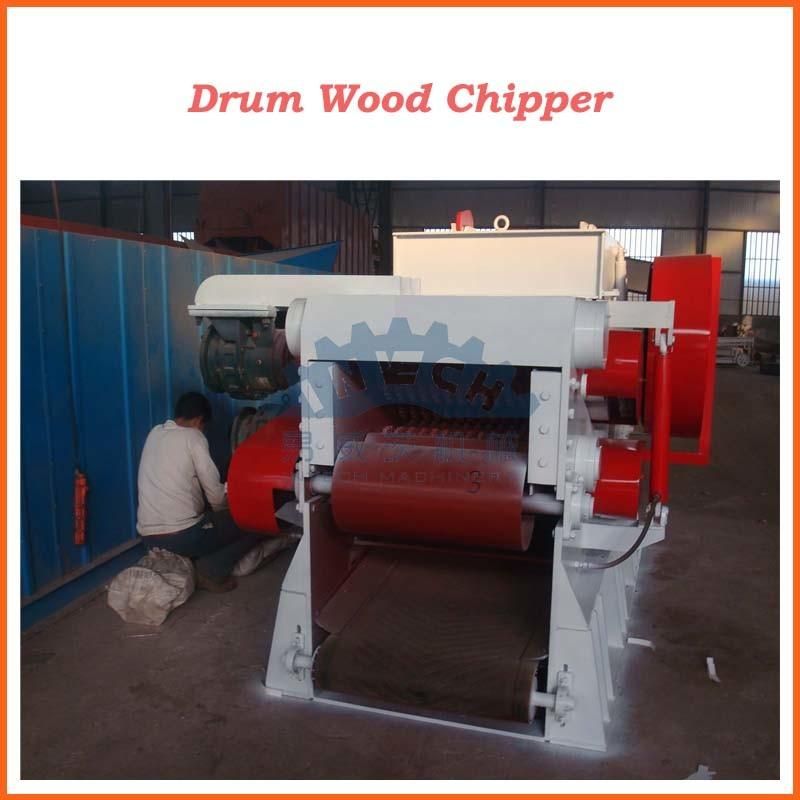

Drum Wood Chipper

Brife Introduction

Drum chipper is widely used in particleboard plant,medium/high density fiberboard plant,straw plant,biomass plant and wood products plant.
It can be used to chip wood material such as branches,logs,slab,veneer etc.And it also can be used for cutting non-wood material such as sugar cane,reed,bamboo and so on.
The drum chipper is consist of a machine body,a knife roller,upper and lower feeding roller,conveyor belts and hydraulic system components.

Technicals



Model	BX215	BX216	BX218	BX2113
Feeding Port	160mm*400mm	230mm*600mm	300mm*680mm	450mm*700mm
Number of Flying Cutter	2	2	2	2
Rotate Speed of Cutter Roller	592r/min	590r/min	650r/min	520r/min
Max Diameter of Raw Material	160mm	230mm	300mm	450mm
Output Size of Wood Chips	30mm	30mm	30mm	38mm
Production Capacity	3-4t/h	7-8t/h	12-15t/h	15-30t/h
Main Motor Power	45kw	55kw	110kw	200-250kw
Feed Roller Motor Power	2.2-3kw	3-4kw	4-5kw	7.5kw
Oil Pump Motor Power	1.5 x 1 kw	1.5 x 1 kw	1.5 x 1 kw	1.5 x 1 kw
Weight	2990kg	4070kg	7000kg	11840kg
Overall Size	3421mm*1790mm* 1060mm	4348mm*1730mm *1258mm	4670mm*2150mm*1500mm	3670mm*2517mm* 2050mm
Conveyor Motor Power	3kw	3kw	3kw	3kw
