• Model NO.：DW6090
• Customized：Customized
• Condition：New
• Color：Customized
• Warranty：18 Months
• Rotary Size：Can Be Customized
• Machine Color：Can Be Customized
• Spindle Power：3kw Water Cooling
• Driving Motor：Stepper Motor
• Controller：DSP System (Mach3 ,Nc-Studio for Choice)
• Software：Type3
• Working Area：600X900mm
• Table：T -Slot
• Transmission：Ball Screw
• Transport Package：Playwood Box
• Specification：900x600mm
• Trademark：DWIN
• Origin：Jinan City Shandong Province China
• HS Code：8465990000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DW6090 Customized Customized Condition New Color Customized Warranty 18 Months Rotary Size Can Be Customized Machine Color Can Be Customized Spindle Power 3kw Water Cooling Driving Motor Stepper Motor Controller DSP System (Mach3 /Nc-Studio for Choice) Software Type3 Working Area 600X900mm Table T -Slot Transmission Ball Screw Transport Package Playwood Box Specification 900x600mm Trademark DWIN Origin Jinan City Shandong Province China HS Code 8465990000 Production Capacity 50 Sets Per Month

Product Description

                                     DW6090 3KW spindle 4 axis cnc router


This 6090 cnc router attached with rotary so it is called 4 axis cnc router, it can be used to engraving on round material and cylinder materials, the small design makes it very suitable for samll factory, and also suitable for mass production for large factory.

This machine use DSP handle to control the machine, easy to learn and easy to control, we also can customize the machine for you.




Machine Features :

1. DW6090 CNC router is one high precision small CNC engraver with 2D& 3D CAD/
CAM machining capabilities.
2. It is the best choice for the Engraver,Sign maker,Panel maker and Educational
Institution.
3. The machine structures are designed with cast steel and  with Germany ball screws
transmission for x, y & z axes. It is small enough to fit into almost any work space.


Specifications:


	4 axis cnc router
1	X,Y,Z Working Area	600x900x200mm
2	Table Size	1560X1050mm
3	X,Y,Z Traveling Positioning AccuraIT	±0.03/300mm
4	X,Y,Z repositioning Positioning AccuraIT	±0.02mm
5	Table Surface	T-slot Extrusions
6	Frame	Welding steed
7	X, Z Structure	Ball Screw
8	Y Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. power Consumption	0.8Kw
10	Max. Rapid Travel Rate	8000mm/min
11	Max. Working Speed	6000mm/min
12	Spindle Power Motor	3Kw water cooling spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper system
15	Working Voltage	AC220V/50/60Hz
16	Command Language	G code
17	Operating System	DSP System  (Option:Mach3 PC Software)
18	Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER16
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3 software, Ucancam software,  (Option: Artcam software)
23	Running Environment	Temperature: 0°C~45°C  Relative humidity: 30%~75%
24	Packing Size	1710 x 1250 x 1585mm
25	Net Weight	180KG
26	Gross Weight	272KG

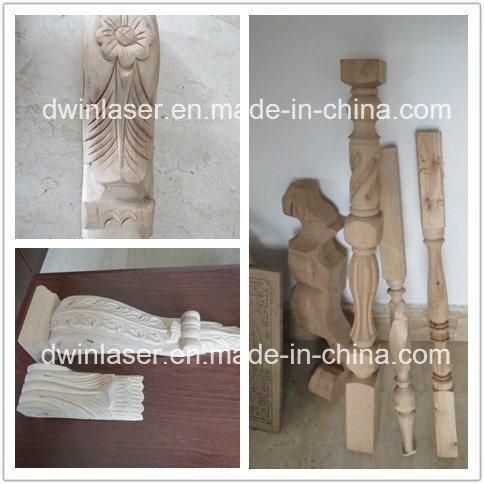

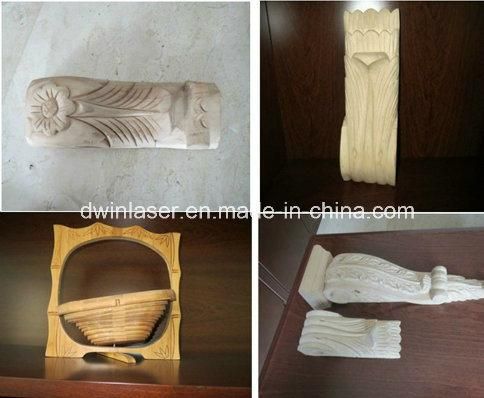

 Samples :
