Woodworking Machinery

Plywood Production Line

Linyi Gaotong Import & Export Co., Ltd.
  • After-sales Service:Video Technical Support,Online Support, Spare Part
  • Warranty:1 Year
  • Type:Plywood Veneer Rotary Production Line
  • Automatic:Automatic
  • Certification:CE
  • Machine Type:Plywood Veneer Production Line

Base Info

  • Model NO.:GTVS260
  • Rotary Peeling Veneer Thickness:From 0.5mm to 3.5mm
  • Driver:Servo Motor
  • Processing Accessory:Centre CNC Lathe
  • Controlling Mode:CNC
  • Model No.:8 Feet Wood Veneer Production Line
  • Wood Logs Length:2700mm
  • Max Log Diameter:700mm
  • Residue Wood Diameter:35mm
  • Speed Adjust System:Yes
  • with Log Centering System:Yes
  • Peeling Machine Power:57kw
  • Hydraulic System:Yes
  • Veneer Stacker:New Model
  • Veneer Thickness:1 to 4mm
  • Transport Package:Standard Export Packing
  • Specification:7m*29m
  • Trademark:GTCO
  • Origin:Shandong, China
  • HS Code:8465960000
  • Production Capacity:5000m3,Month

Description

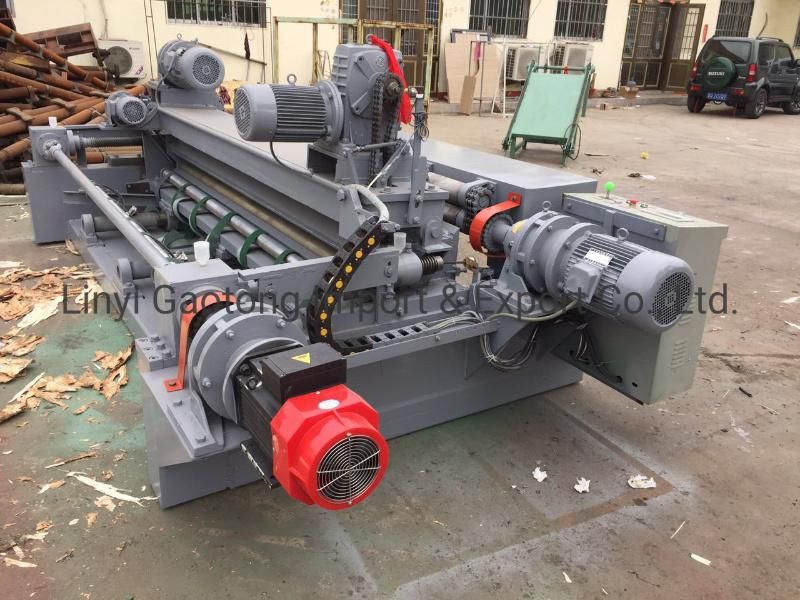

Max. working length2600mmWorking diameter range22~700mmMax. working speed70m/minVeneer thickness0.5~4mmDouble rollers motor power11.5kw x 2setsSingle roller motor power11kw x 2setsScrew Feeding motor power11kwRotary clipper motor power4kwRubber belt conveyor motor4kwMachine size6000x2200x1700mmMachine weight8500kgsPlywood Production Line

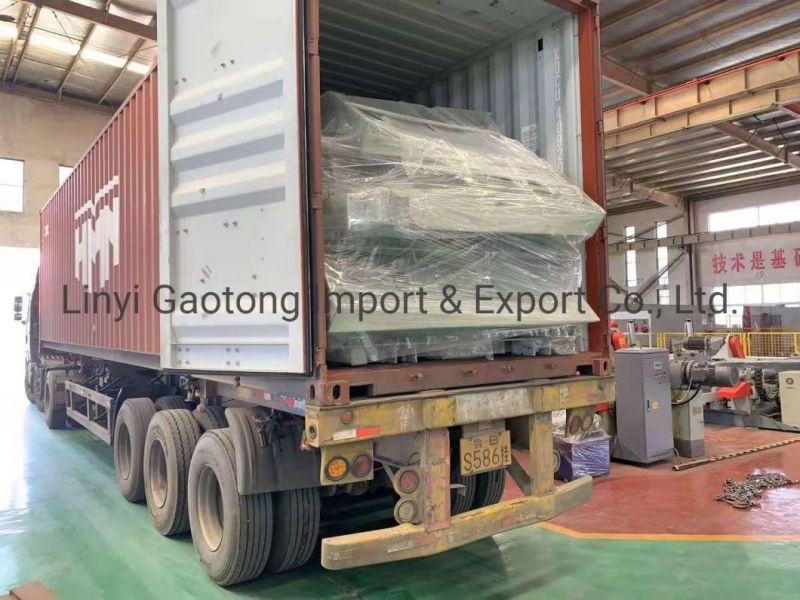

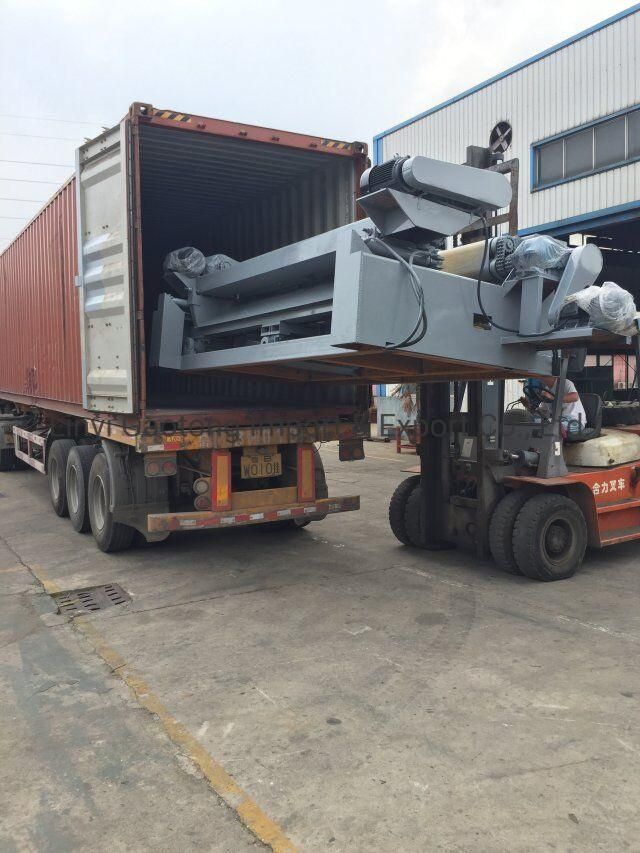

Packing and Shipping
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Plywood Production Line
Plywood Production Line
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.




Automatic Core Veneer Rotary Peeling Line From Log Debarking to Veneer Stacking Line
Welcome to contact for details!

Jethea Song
