• Model NO.：ELE-1325
• Customized：Customized
• Condition：New
• Color：Customized
• X,Y,Z Working Area：1300X2500X200mm
• Working Voltage：380V,50Hz(Customized)
• Control System：Taiwan Lnc Control System
• Spindle：Italy Hsd Atc Air Cooling Spindle
• Reducer：Japan Shimpoo
• Motor & Driver：Delta Servo Motor and Driver
• Table Surface：Vacuum Working Table
• Lubrication System：Auto Lubrication
• Automatic Tool Magazine：12 Tool Change Magazine Under Gantry
• Structure：New Type Thicker and Bigger Heavy Duty
• Dust Collector：3kw Double Bags Dust Collect
• Tool Sensor：Automatic
• Vacuum Pump：7.5kw Water Circulation Vacuum Pump
• Transport Package：Standard Export Wooden Case
• Specification：CE, SGS, CIQ
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELE-1325 Customized Customized Condition New Color Customized X,Y,Z Working Area 1300X2500X200mm Working Voltage 380V/50Hz(Customized) Control System Taiwan Lnc Control System Spindle Italy Hsd Atc Air Cooling Spindle Reducer Japan Shimpoo Motor & Driver Delta Servo Motor and Driver Table Surface Vacuum Working Table Lubrication System Auto Lubrication Automatic Tool Magazine 12 Tool Change Magazine Under Gantry Structure New Type Thicker and Bigger Heavy Duty Dust Collector 3kw Double Bags Dust Collect Tool Sensor Automatic Vacuum Pump 7.5kw Water Circulation Vacuum Pump Transport Package Standard Export Wooden Case Specification CE, SGS, CIQ Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

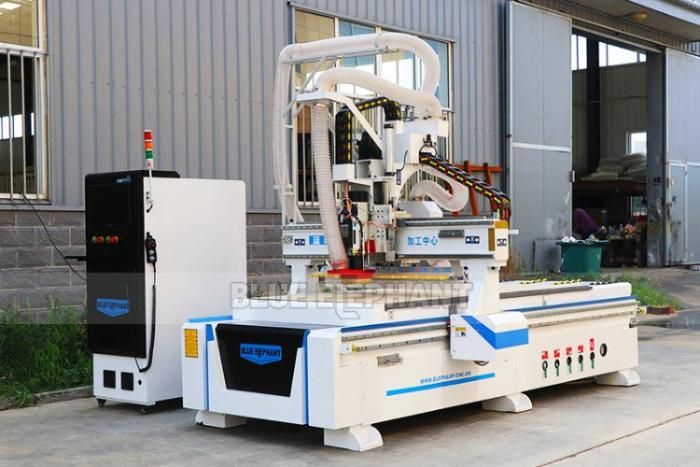

The latest 1325 ATC CNC Router with automatic feeding device

 Features

1) Adopting linear tool change mode, the tool change speed is fast, and the automatic tool change function can be realized in a few seconds.

2) Equipped with imported water cooling spindle, which not only has good cooling effect, but also has the advantage of long service life.

3) With automatic feeding device, it not only saves the time and effort of manual feeding, but also greatly improves production efficiency.

4) Adopting imported parts, such as Taiwan Delta motor and Taiwan square rails, which make the machine more durable.



Technical Parameters


Model	ELECNC-1325 Linear ATC
X,Y,Z Working Area	1300x2500x200mm
Working Voltage	380V/50Hz(customized)
Control system	Taiwan LNC control system
Spindle	Italy HSD ATC air cooling spindle
Reducer	Japan Shimpoo
Motor & Driver	Delta servo motor and driver
Table surface	vacuum working table
Lubrication system	Auto Lubrication system
Automatic tool magazine	12 tools
Structure	New type thicker and bigger heavy duty
Transmission	X,Y rack and pinion drive, Z Taiwan TBI ball screw
Dust collector	3kw double bags dust collect
Tool sensor	Automatic tool sensor calibration
Vacuum pump	7.5KW water circulation vacuum pump

PS:All the working area and specifications can be customized according to your requests.

Sample & Application

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.



Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions



After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

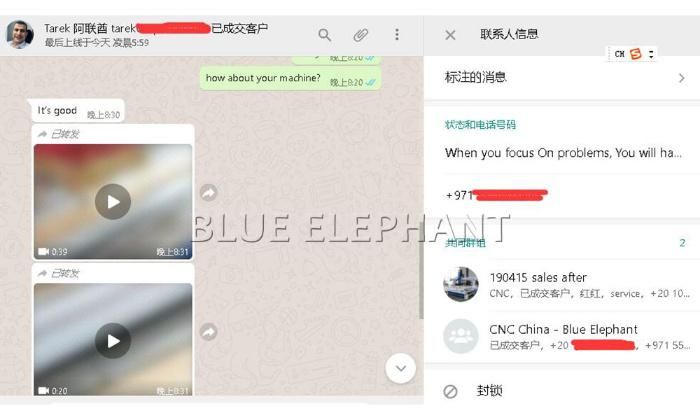

* Use online contact methods such as skype whatsapp facebook to provide online services to customers.






Packaging & Delivery

Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.

Delivery Detail: Shipped in 25-30 working days after payment.



Company Introduction

Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
