Promotion 1325 Model Woodworking MDF Furniture MDF Advertising CNC Router Engraving Cutting Machine
Jinan Upgoal Mechanical Equipment Co., Ltd.- Warranty：1 Year
- Condition：New
Base Info
- Model NO.：UG-1325
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：AC220V Single Phase or AC380V Three Phases
- Working Area：1300(X)mm*2500(Y)mm*250(Z)mm
- Working Table：Transverse Aluminum Alloy T Slot
- Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
- Transmission：Helical Rack &Pinion for X Y -Axis, Lead Ball Scre
- Driving Mode：Stepper Motor (86bygh450b) and Driver for Xyz-Axis
- Spindle Motor：3.2kw Water Cooling, Er20
- Spindle Speed：0-24000rpm
- Control System：Optional PCI Ncstudio,Mach3,DSP Offline
- Carving Instructions：G Code *Uoo *Mmg *Plt Hpgl
- Lubrication System：Semi-Auto
- Tools Calibration：Automatic
- Transport Package：Plywood Case
- Specification：3200*2180*1960mm, 1300KGS
- Trademark：UPGOAL
- Origin：Jinan City, Shandong Province, China
- HS Code：84659900
- Production Capacity：200 Sets,Month
- Package size per unit product：319.00cm * 218.00cm * 193.00cm
- Gross weight per unit product：1300.000kg
Description
5. China famous CW brand 86BYGH450B stepper motor and Leadshine DMA860H stepper driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

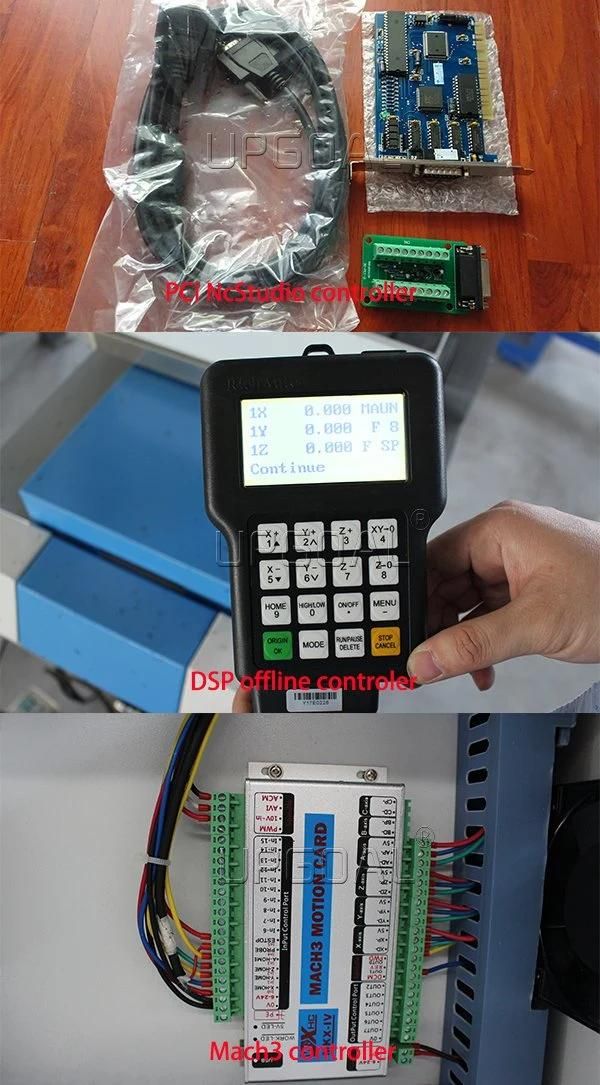

6. Optioanl Mach3/DSP offline/PCI NcStudio controller.
7. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate, Adopt high flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.
8. Built-in control cabinet, save space.

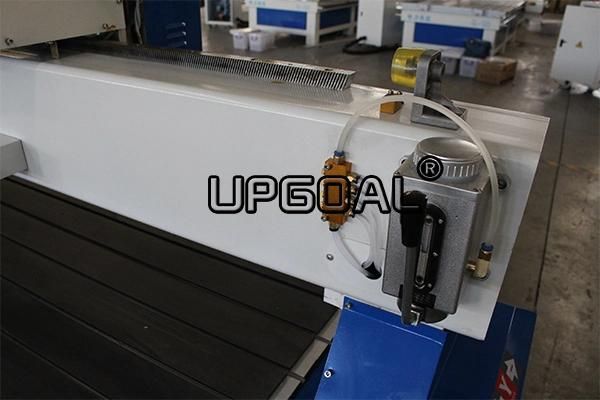

9. Semi-auto lubrication system more convenient for maintenance.

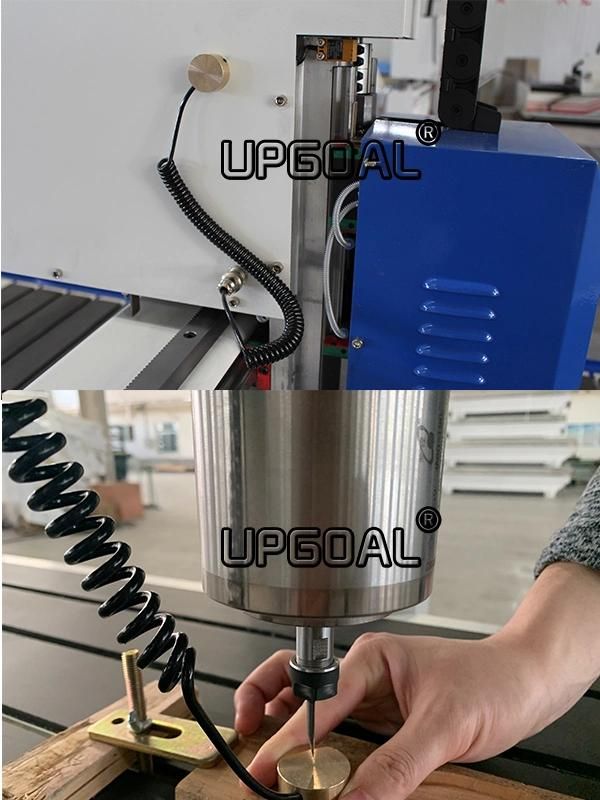

10.Auto tool calibration, more convenient for each time Z-axis 0 point setting.
11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
12. With the function of break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.
Technical Parameters
Effective working area | 1300(X)mm*2500(Y)mm*250(Z)mm |
Materials | Strong welded square steel tube structure for whole machine |
Working table | Aluminum T slot working table |
Moving type | Gantry moving |
Guide rail | Linear square guide rail ( Hiwin, Taiwan) |

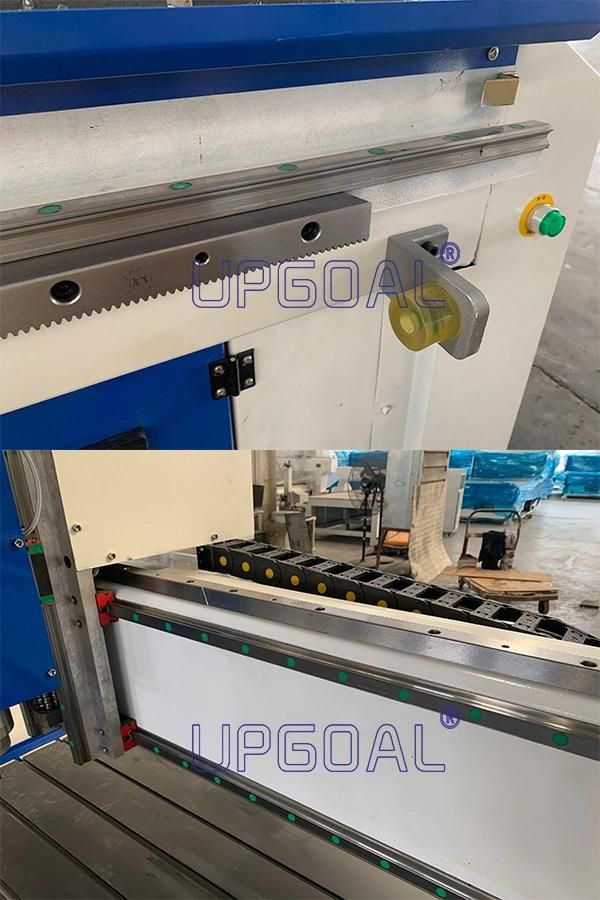

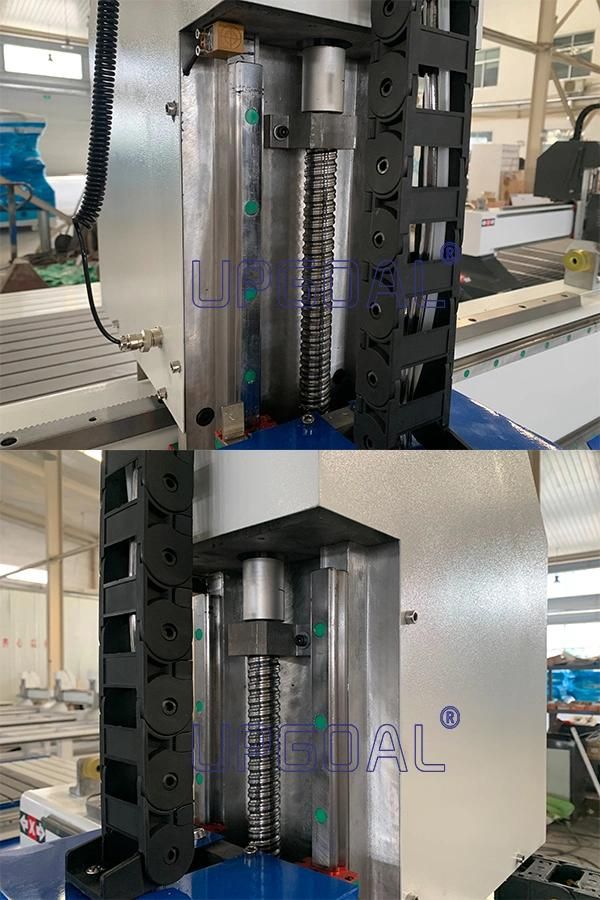

Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |
Driving mode | Stepper motor (86BYGH450B) and driver for XYZ-axis |
Spindle motor | 3.2kw, water cooling, Hanqi brand |
Spindle speed | 0-24000rpm |
Collets type | ER20 |
Inverter | Sunfar/Fuling |
Voltage | AC 220V±10%, 50/60Hz, single phase or AC 380V± 10%, 50/60Hz, three phases |
Traveling speed | >25000mm/min |
Engraving speed | >12000mm/min |
Machine accuracy | 0.03mm |
Control system | Optional DSP offline/Mach3/PCI NcStudio |
Suitable software | Artcam, Type3, Ucancam V9,etc |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 ºC |
Relative humidity | 30%-75% |
Lubrication system | Semi-auto |
Tool calibration | Auto |
Cooling method | Water pump or industrial chiller |
Certificate | CE |
Application
Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc
Reference Sample Photos
Reference Working Videos
https://youtu.be/WV3z3F1Gxf0
https://youtu.be/cgA0Ue5p0lE
https://youtu.be/JTL7QFN_Ayo
For more information, just feel free to contact us!
