• Model NO.：LSW1325ATC
• Certification：CE, FDA
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Online Service
• Control System：Syntec System
• Motor & Driver：Yaskawa
• Table：T-Slot and Vacuum Working Table with 4 Zone
• Spindle Power：9kw Water Cooling Spindle
• Gross Weight：1800kg
• Lubrication System：Automatic
• Transport Package：Wooden Boxes
• Specification：1600kg
• Trademark：Lansen
• Origin：China
• HS Code：8465990000

Basic Info.

Model NO. LSW1325ATC Certification CE, FDA Customized Customized Condition New Color Customized After-sales Service Online Service Control System Syntec System Motor & Driver Yaskawa Table T-Slot and Vacuum Working Table with 4 Zone Spindle Power 9kw Water Cooling Spindle Gross Weight 1800kg Lubrication System Automatic Transport Package Wooden Boxes Specification 1600kg Trademark Lansen Origin China HS Code 8465990000

Product Description

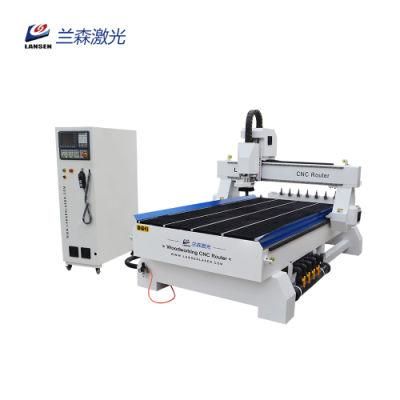

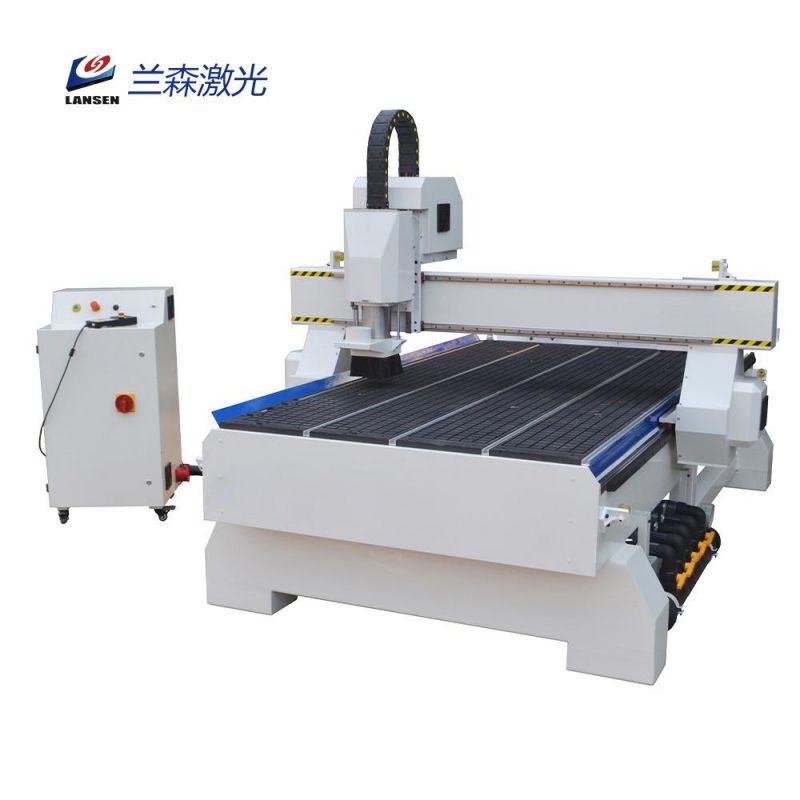

12 tools auto tool changer CNC Wood Engraving Cutting machineFeatures:1. Machine adopts imported Linear guide rail. Ensures the accuracy of the machine.
2. Y-axis adopts advanced dual-axis Rack Pinion transmission, dual servo motor driver system which ensures speed, strength, and accuracy of automatic cutting.
3. High processing-speed, fast cutting speed, high efficiency, max speed is up to 60 meters / min.
4. Perfect performance. The professional human control system has advantages as continuing engraving when occurring break point or off power. Processing time can be forecast. It has back to the origin and automatic correction function.
5. It adopts air cooling variable frequency motor with constant power, strong cutting power and high speed range, torque, and high precision. Easy to maintainace
6. Large compatibility. CAD/CAM designing software like Type3/ArtCAM/Castmate/Ucancam and so on.
7. Adopting advanced three-dimensional curves of the Budget Act a smooth line to ensure that the curve of the speed and accuracy of operation
8. Convenient control: it uses unique intelligence budget principle, to achieve high-speed processing, more perfect curve to improve the processing efficiency. Machine adopts DSP control system or Syntech Intelligent Control system, USB interface, machine can be used without computer.
9. Dual Fix ways: Vacuum adsorption and T-slot aluminum table are provided.
10. All in one function control box. The separately control box composite all the functions, convenient to operate.
11. Automatic oiling system. It lubricate the linear rail automaticlly, maintainace of the guide rail more easilly
12. Auto tool changer Functions: Equipment adopts Disk auto tool changer stock, 8 or 12 tool stocks optional. It saves much time on tool changing manually.Parameters:

Models	LSW1530ATC
XYZ axis travel distance	1500x3000x200mm
Feeding height	200mm
Table size	1500x3000mm
ATC tool type	8 Pcs Tool Stock ( linear type)/ 12 Pcs Tool Stock optional
Spindle power	9kw air cooling
Rail type	linear rails XYZ 20mm
Control system	Syntech Control system
Drive type	Servo Motors
Transmit	X, Y Rack Pinion transmit way /Z ballscrew transmit way
Table type	Vacuum absorption with T slot clamping
Max travel speed	600000mm/min
Working precision	0.05mm
power	AC380V±10%/50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam etc
command code	HPGL, G code
Machine size	3750mm*2160mm*1620mm
packing size	3860mm*2280mm*1860mm
Net/Gross weight	1800kg / 2000kg

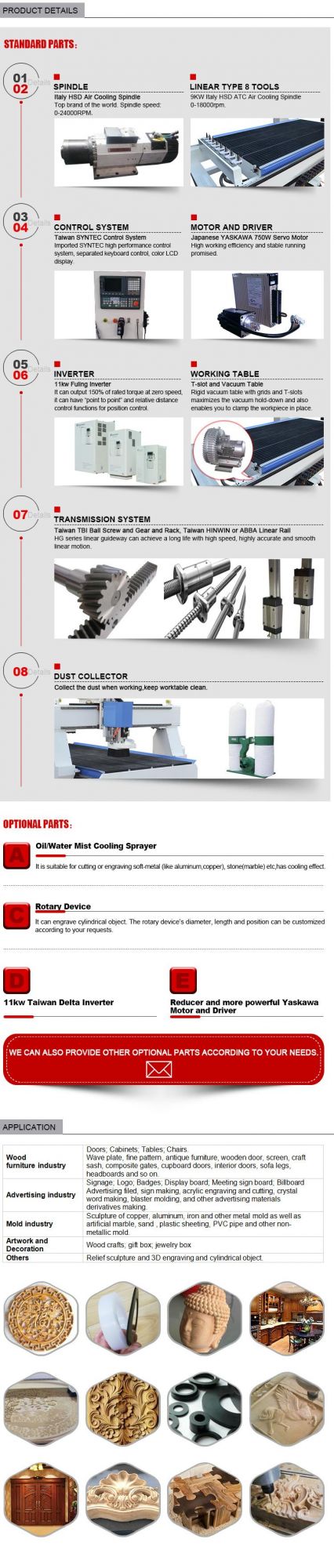

Machine details:

Warranty:
1. 2 year for the whole machine.
2. 6 months for the Plasma generator.
3. Consumable parts are beyond the warranty lines.
4. etailed manual and video to guide the uses how to use the machine and maintenance supplied.
5. Technical support by website and phone.
6. If you meet the problems, we can solve it with pictures, videos ect .

About us:


FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
